StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP) - fibre media converter - 10Mb LAN, 100Mb LAN, 1GbE
SKU MCM1110SFP
Product Description: | StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP) - fibre media converter - 10Mb LAN, 100Mb LAN, 1GbE |
Device Type: | Fibre media converter - RJ-45 / SFP (mini-GBIC) |
Form Factor: | External |
Cabling Type: | 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T |
Data Transfer Rate: | 1 Gbps |
Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
Power: | AC 120/230 V |
- Specifications
- Description
General | |
Device Type: | Fibre media converter |
Form Factor: | External |
Colour: | Brown |
Networking | |
Connectivity Technology: | Wired |
Cabling Type: | 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T |
Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
Data Transfer Rate: | 1 Gbps |
Status Indicators: | Power, link/activity |
Features: | Auto-uplink (auto MDI/MDI-X), full duplex mode, Link Fault Pass Through function (LFP), Jumbo Frames support |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
Expansion / Connectivity | |
Interfaces: | 1 x Ethernet 1000Base-T - RJ-45 ¦ 1 x Ethernet 1000 - SFP |
Miscellaneous | |
MTBF: | 50,000 hours |
Compliant Standards: | FCC, RoHS, MSA |
Power | |

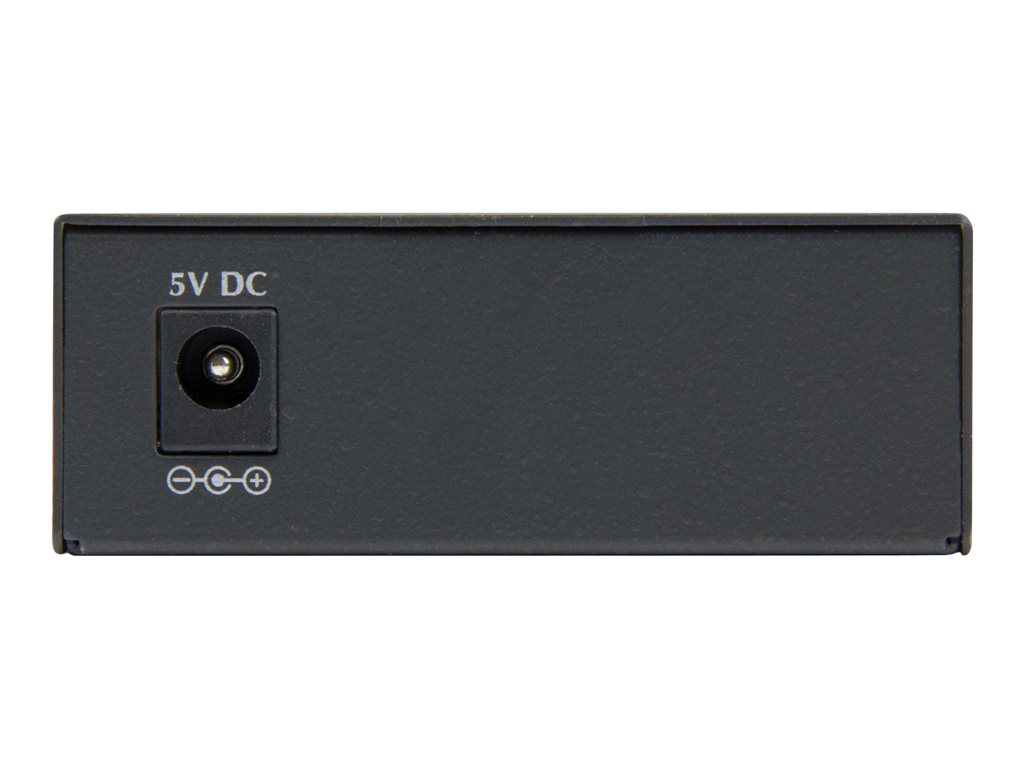

Power Device: | External power adapter |
Voltage Required: | AC 120/230 V |
Power Consumption Operational: | 5 Watt |
Dimensions & Weight | |
Width: | 7 cm |
Depth: | 2.6 cm |
Height: | 9.7 cm |
Weight: | 200 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Compatibility Information | |
Designed For: | P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSMRGDST, J4858C10PKST, J4858CST, J4859C10PKST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST, SFPC1110, SFPG1320C, SFPGESST, SFPGLCLHSMST, SFPGLCSXMMST, SFPSXMM |
Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice. This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.
The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.
The technical details come from 3rd party. edgemo is not responsible for any errors.
