StarTech.com mSATA to SATA HDD / SSD Adapter - Mini SATA to SATA Converter Card - mSATA to SATA 2.5/3.5 Hard Drive Adapter Converter Card (MSAT2SAT3) - storage controller - mSATA - SATA 6Gb/s

SKU MSAT2SAT3

Product Description:	StarTech.com mSATA to SATA HDD / SSD Adapter - Mini SATA to SATA Converter Card - mSATA to SATA 2.5/3.5 Hard Drive Adapter Converter Card (MSAT2SAT3) - storage controller - mSATA - SATA 6Gb/s
Device Type:	Storage controller - internal
Bus Type:	SATA 6Gb/s
Interface:	mSATA
Data Transfer Rate:	6 Gbit/s
Supported Devices:	Hard drive, solid state drive
Channel Qty:	1

Not in stock

Specifications
Description
Accessories

General
Device Type:	Storage controller - internal
Host Bus:	SATA 6Gb/s

Storage Controller
Interface:	mSATA
Data Transfer Rate:	6 Gbit/s
Supported Devices:	Hard drive, solid state drive
Channel Qty:	1

Expansion / Connectivity
Interfaces:	1 x - mSATA
Connections:	1 x SATA 6Gb/s - 7 pin Serial ATA

Miscellaneous
Mounting Kit:	Included
Compliant Standards:	RoHS

Manufacturer Warranty
Service & Support:	Limited warranty - 2 years

Dimensions & Weight
Width:	3 cm
Depth:	5.1 cm
Height:	0.8 cm
Weight:	60 g

Environmental Parameters
Min Operating Temperature:	5 °C
Max Operating Temperature:	50 °C
Humidity Range Operating:	20 - 80%

vis mere

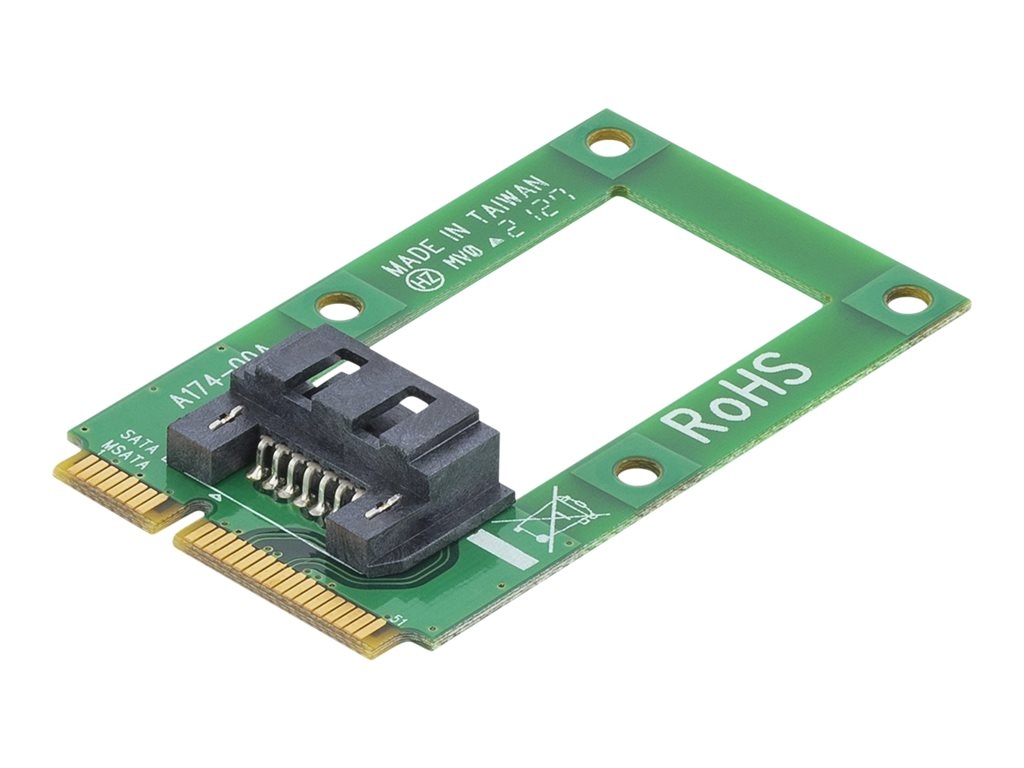

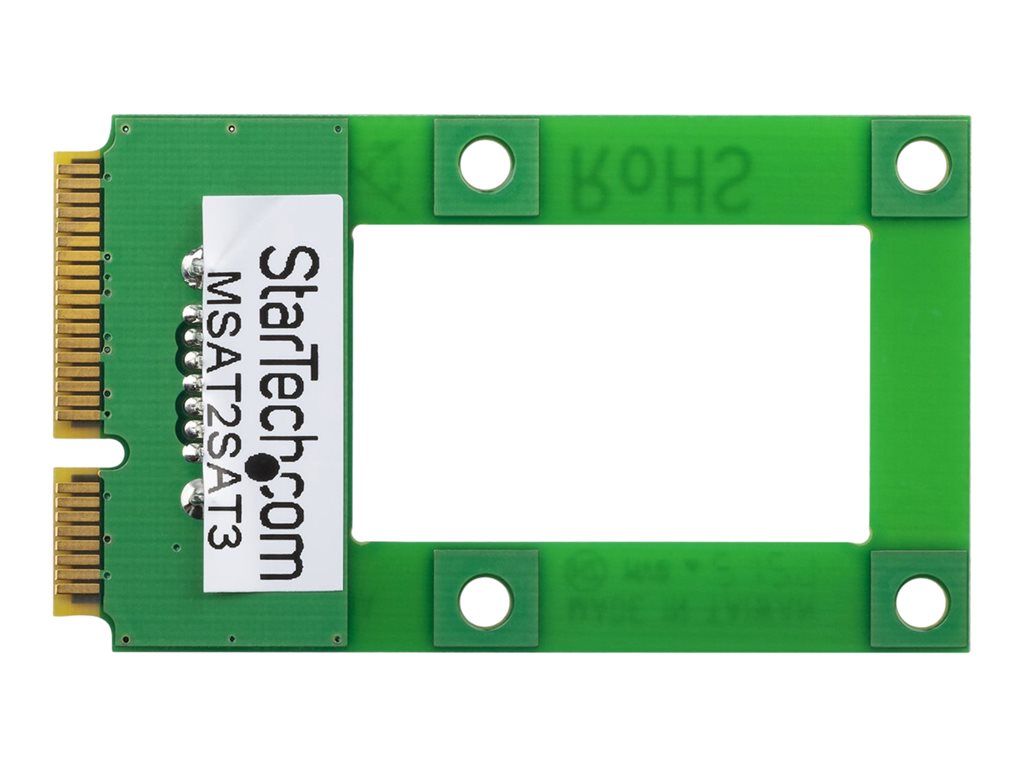

Turn an mSATA host connection into a standard SATA port. The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
