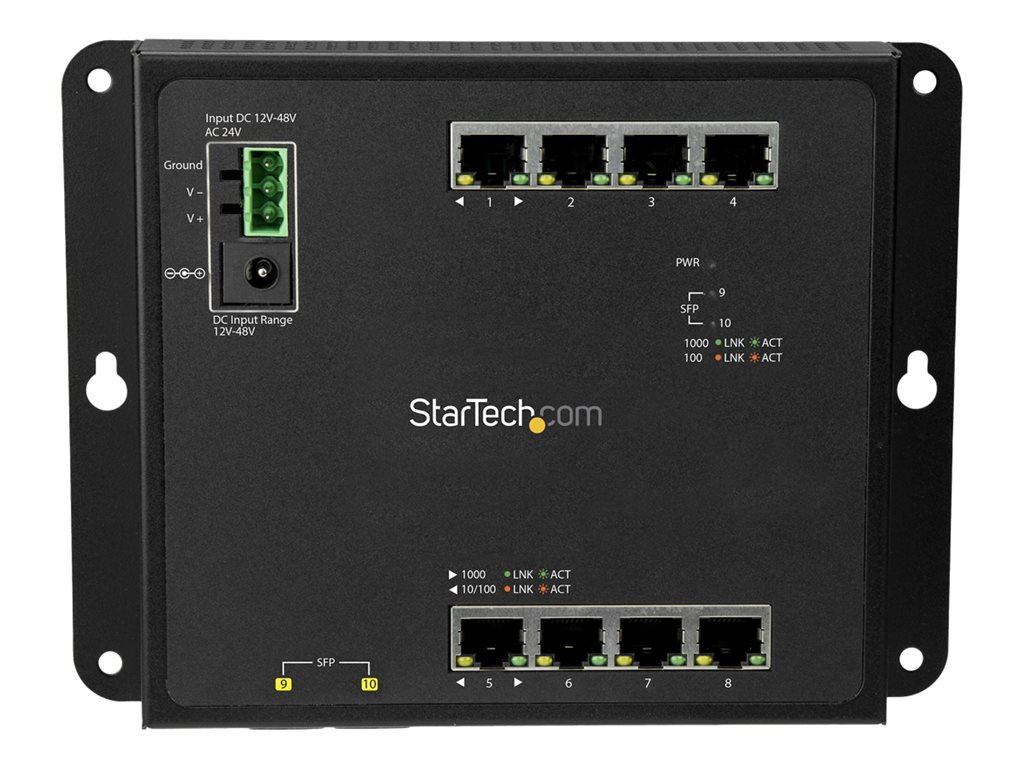

StarTech.com Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP Slots L2 Managed Network RJ45 LAN Layer2 Switch Din Rail Hardened IP-30 (IES101G2SFPW) - switch - 10 ports - Managed
SKU IES101G2SFPW
Product Description: | StarTech.com Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP Slots L2 Managed Network RJ45 LAN Layer2 Switch Din Rail Hardened IP-30 (IES101G2SFPW) - switch - 10 ports - Managed |
Device Type: | Switch - 10 ports - Managed |
Subtype: | Gigabit Ethernet |
Ports: | 8 x 10/100/1000 + 2 x SFP |
Performance: | Data transfer rate: 2 Gbps |
Jumbo Frame Support: | 9KB |
Routing Protocol: | MLD, IGMP |
- Specifications
- Description
General | |
Device Type: | Switch - 10 ports - Managed |
Enclosure Type: | Wall-mountable |
Subtype: | Gigabit Ethernet |
Ports: | 8 x 10/100/1000 + 2 x SFP |
Performance: | Data transfer rate: 2 Gbps |
Jumbo Frame Support: | 9KB |
Routing Protocol: | MLD, IGMP |
Remote Management Protocol: | HTTP |
Features: | Layer 2 switching, wall mountable, IPv6 support, full duplex mode, ICMP, 802.1x authentication, TFTP support, 6KV ESD Protector, 6KV EFT protector, tagged VLAN, flow control |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP) |
Status Indicators: | Power |
Expansion / Connectivity | |
Interfaces: | 8 x 1000Base-TX RJ-45 ¦ 2 x 1000Base-TX SFP ¦ 1 x terminal block |
Miscellaneous | |
Colour: | Black |
Included Accessories: | 4 x screws, attaching pins, locking pins, 4 washers, 4 magnets, DIN-rail mounting kit, 8 RJ45 dust caps, 2 SFP dust caps |
MTBF: | >100,000 hours |
Compliant Standards: | IP30, RoHS, RCM, WEEE, FCC |
Localisation: | Europe, Japan, United Kingdom, Australia, New Zealand |
Dimensions & Weight | |
Width: | 14.8 cm |
Depth: | 13.4 cm |
Height: | 2.5 cm |
Weight: | 496 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature: | -40 °C |
Max Operating Temperature: | 75 °C |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Compatibility Information | |
Designed For: | P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSMRGDST, J4858C10PKST, J4858CST, J4859C10PKST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST, SFPC1110, SFPG1320C, SFPGESST, SFPGLCLHSMST, SFPGLCSXMMST, SFPSXMM, SVA12M2NEUA, SVA12M5NA |
Wall Mount Ethernet Switch | 10/100/1000Mbps | 8 RJ45 Ports | L2 Managed. Add eight copper Gigabit Ethernet (GbE) connections and two open SFP slots to your network with this 8-Port Gigabit Ethernet Switch. The rugged switch makes it easy to deploy or scale your network.
This versatile GbE switch adapts to your network needs by adding two open SFP slots and eight RJ45 Ethernet ports, providing both fiber and copper connections in a single network switch. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch allows you to connect up to eight RJ45 devices, so different users can share files and devices, such as printers and scanners, over a LAN connection, and share two devices in the open SFP slots.
This Layer 2 switch delivers efficient and stable performance, with Layer 2 management capabilities. It controls packet traffic on a busy network, and customizes settings to achieve optimal network performance.
At only 5.5 x 7 in. and 1.375 lb., the industrial managed Ethernet switch is designed to be wall or DIN-rail mounted in tight spaces that are exposed to significant electromagnetic interference, while providing easy port access. The IP30-rated metal housing and extended operating temperature range of -40°C to 75°C makes it ideal for harsh environments.
StarTech.com offers a wide variety of network switches, making it easy to expand your network connections and provide power to devices in hard-to-power locations.
This versatile GbE switch adapts to your network needs by adding two open SFP slots and eight RJ45 Ethernet ports, providing both fiber and copper connections in a single network switch. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch allows you to connect up to eight RJ45 devices, so different users can share files and devices, such as printers and scanners, over a LAN connection, and share two devices in the open SFP slots.
This Layer 2 switch delivers efficient and stable performance, with Layer 2 management capabilities. It controls packet traffic on a busy network, and customizes settings to achieve optimal network performance.
At only 5.5 x 7 in. and 1.375 lb., the industrial managed Ethernet switch is designed to be wall or DIN-rail mounted in tight spaces that are exposed to significant electromagnetic interference, while providing easy port access. The IP30-rated metal housing and extended operating temperature range of -40°C to 75°C makes it ideal for harsh environments.
StarTech.com offers a wide variety of network switches, making it easy to expand your network connections and provide power to devices in hard-to-power locations.
The technical details come from 3rd party. edgemo is not responsible for any errors.
