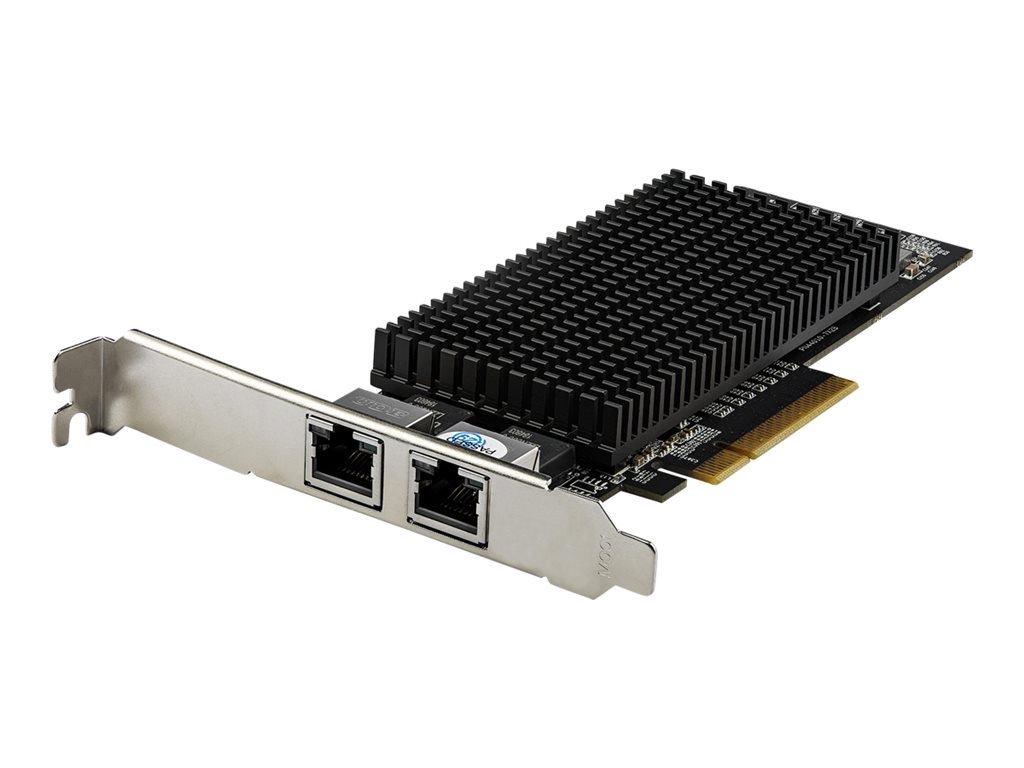

StarTech.com Dual Port 10G PCIe Network Adapter Card, Tehuti TN4010 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card - Network Adapter Card (ST10GSPEXNDP) - network adapter - PCIe 2.0 x8 -

SKU ST10GSPEXNDP
Product Description:StarTech.com Dual Port 10G PCIe Network Adapter Card, Tehuti TN4010 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card - Network Adapter Card (ST10GSPEXNDP) - network adapter - PCIe 2.0 x8 - 10Gb Ethernet x 2
Device Type:Network adapter
Form Factor:Plug-in card
Interface (Bus) Type:PCI Express 2.0 x8
PCI Specification Revision:PCIe 2.0
Ports:10Gb Ethernet x 2
Cabling Type:Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T
16-01-2025
  • Specifications
  • Description
General
Device Type:Network adapter
Form Factor:Plug-in card
Interface (Bus) Type:PCI Express 2.0 x8
PCI Specification Revision:PCIe 2.0
Networking
Ports:10Gb Ethernet x 2
Connectivity Technology:Wired
Cabling Type:Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol:Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate:10 Gbps
Network / Transport Protocol:TCP/IP, UDP/IP, iSCSI
Status Indicators:Link/activity, link/speed
Features:Auto-uplink (auto MDI/MDI-X), full duplex mode, tagged VLAN, 9 KB Jumbo Frame, promiscuous mode
Compliant Standards:IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3az
Expansion / Connectivity
Interfaces:2 x 10GBase-T - RJ-45
Miscellaneous
Included Accessories:Low-profile bracket
Colour:Black
Software / System Requirements
Software Included:Drivers & Utilities
OS Required:VMware ESXi 5.1, VMware ESXi 5.0, Microsoft Windows 7 / 8 / 8.1 / 10, VMware ESXi 6.0, VMware ESXi 6.5, Microsoft Windows Hyper-V Server, Microsoft Windows Server 2008 / 2012 R2, Linux 3.x - 4.11 LTS versions, Microsoft Windows Server 2012 R2 / Windows Server 2016, Apple macOS 10.12 - 10.14
Manufacturer Warranty
Service & Support:Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature:5 °C
Max Operating Temperature:50 °C
Humidity Range Operating:20 - 80%
vis mere
This dual-port 10Gb PCIe network card offers a versatile and low-cost way to deploy 10GbE network connectivity. It adds two copper Ethernet ports to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at five speeds: 10G, 5G, 2.5G, 1G and 100Mbps.
The 10GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 10GBASE-T and NBASE-T equipment at network speeds of: 100Mbps, 1Gbps, 2.5Gbps or 5Gbps over your CAT5e cabling (up to 100 m); 10Gbps over your CAT6 or better cabling (up to 100 m).
The network adapter card adds two Ethernet ports to your workstation through an x8 PCIe 2.X (or higher) slot. It features 10GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The NIC card also supports additional features including 9K Jumbo Frames, Autonegotiation, Auto-MDIX and 802.1q VLAN tagging.
The dual Tehuti TN4010 + Marvell 88X3110 chipset, compliant with IEEE 802.3az, ensures peak operation and reduced power consumption. The decreased consumption minimizes the heat generated to avoid operating temperatures increasing within your server case.
