Printers & POSStarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA III and IDE (40 pin) SSDHDD Docking Station, Hot-Swap Hard Drive Bays - Top-Loading - storage controller - ATA / SATA 6Gb/s - USB 3.0
SKU UNIDOCKU33
| Product Description: | StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA III and IDE (40 pin) SSDHDD Docking Station, Hot-Swap Hard Drive Bays - Top-Loading - storage controller - ATA / SATA 6Gb/s - USB 3.0 |
| Device Type: | Storage controller - external |
| Bus Type: | USB 3.0 |
| Colour: | Black |
| Expansion Bays: | 1 x hot-swap - 2.5" / 3.5" shared ¦ 1 x top accessible - 2.5" / 3.5" shared |
| Hard Drive Form Factor Compatibility: | 2.5", 3.5" |
| Interface: | ATA / SATA 6Gb/s |
- Specifications
- Description
| General | |
| Device Type: | Storage controller - external |
| Hard Drive Form Factor Compatibility: | 2.5", 3.5" |
| Host Bus: | USB 3.0 |
| Product Material: | Plastic |
| Colour: | Black |
| Storage Controller | |
| Interface: | ATA / SATA 6Gb/s |
| Data Transfer Rate: | 6 Gbit/s |
| Supported Devices: | Hard drive, solid state drive |
| Max Storage Devices Qty: | 2 |
| Processor: | JMicron JMS561U / JMD330 |
| Expansion / Connectivity | |
| Bays: | 1 x hot-swap - 2.5" / 3.5" shared ¦ 1 x top accessible - 2.5" / 3.5" shared |
| Interfaces: | 1 x SATA 6Gb/s - SATA combo (internal (bay1)) ¦ 1 x ATA-133 - 40 PIN IDC (rear) |
| Connections: | 1 x USB 3.0 - 9 pin USB Type B |
| Miscellaneous | |
| Cables Included: | 1 x USB 3.0 cable - external ¦ 2 x IDE cable - external |
| Features: | LED indicator, tested with up to 1TB 5400 RPM 2.5” hard drives, tested with up to 6TB 7200 RPM hard drives, UASP transfer protocol |
| MTBF: | 30,000 hours |
| Compliant Standards: | Plug and Play, FCC, RoHS |
| Power | |
| Type: | Power adapter |
| Voltage Required: | AC 120/230 V |
| Software / System Requirements | |
| OS Required: | Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Apple OS X 10.9 Mavericks |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 14 cm |
| Depth: | 13 cm |
| Height: | 7 cm |
| Weight: | 610 g |
| Environmental Parameters | |
| Min Operating Temperature: | 5 °C |
| Max Operating Temperature: | 80 °C |
| Humidity Range Operating: | 8 - 90% |
| Compatibility Information | |
| Designed For: | P/N: SVA12M5NA |

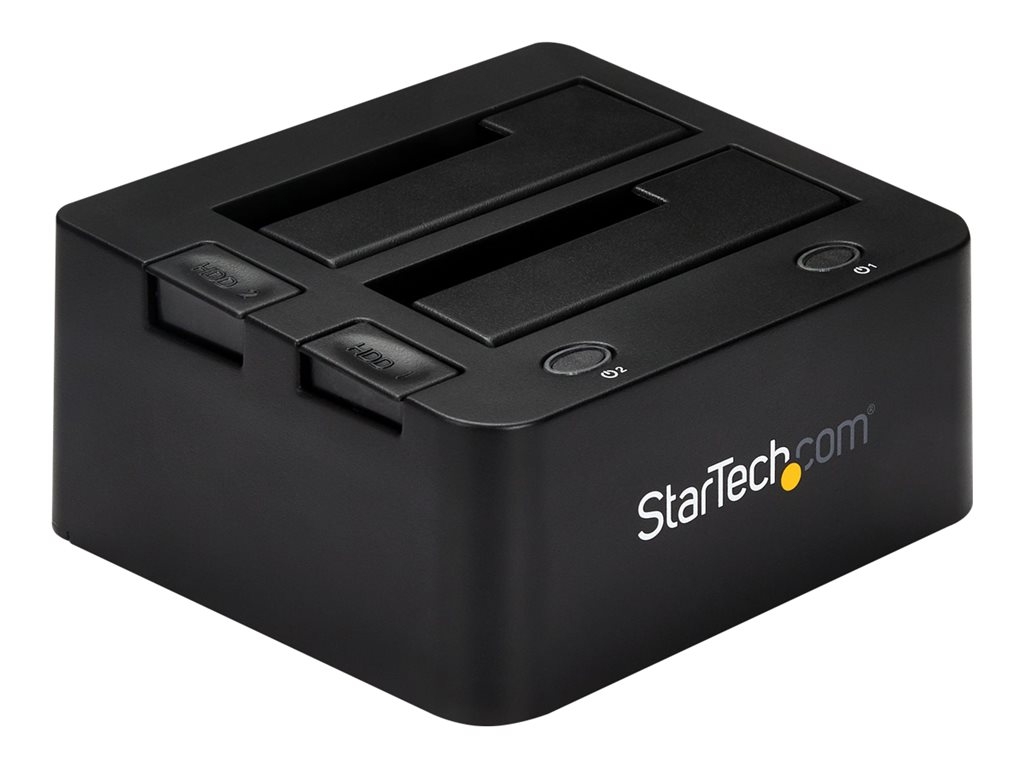

Connect both an IDE and a SATA 2.5/3.5in hard drive or solid state drive to your computer system using an available USB 3.0 port, with support for UASP for optimal performance. The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
- Maximum versatility with support for SATA and IDE as well as 2.5in and 3.5in HDDs & SSDs
- Optimal performance with support for SATA III & UASP
- Hassle-free operation with upright slot-loading SATA and IDE drive bays
- Compatible with USB 3.0/2.0/1.1
- Compatible with SATA revision I/II/III drives
- Compatible with PATA (IDE) 66/100/133 MBps hard drives
- Supports 2.5" or 3.5" form factor hard drives (HDD) or solid state drives (SSD)
- Compact, desktop-style form factor
- Plug-and-Play and hot-swap compatible
- Patented drive ejection mechanism for SATA drives
- Combined power switch and status LED for each drive
