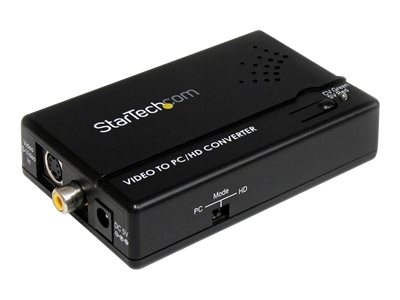

Printers & POSStarTech.com Composite and S-Video to VGA Video Scan Converter - composite to VGA - scan Converter - s-Video to VGA (VID2VGATV2) - video converter - black
SKU VID2VGATV2
| Product Description: | StarTech.com Composite and S-Video to VGA Video Scan Converter - composite to VGA - scan Converter - s-Video to VGA (VID2VGATV2) - video converter - black |
| Device Type: | Video converter |
| Interfaces: | 1 x S-video input - 4 pin mini-DIN ¦ 1 x composite video input - RCA ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x component video output - RCA x 3 (with adapter) |
| Dimensions (WxDxH): | 6.4 cm x 11.2 cm x 2.6 cm |
| Enclosure Colour: | Black |
| Manufacturer Warranty: | 2-year warranty |
| Designed For: | P/N: SVA5M3NEUA |
- Specifications
- Description
| General | |
| Device Type: | Video converter |
| Interfaces: | 1 x S-video input - 4 pin mini-DIN - female ¦ 1 x composite video input - RCA - female ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) - female ¦ 1 x component video output - RCA x 3 (with adapter) - male |
| Video Output | |
| Supported Display Graphics: | XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), HDTV (1920x1080) |
| Analogue Video Format: | NTSC, PAL |
| Miscellaneous | |
| Cables Included: | 1 x VGA / component video adapter - 91.44 cm |
| Compliant Standards: | Plug and Play |
| Width: | 6.4 cm |
| Depth: | 11.2 cm |
| Height: | 2.6 cm |
| Weight: | 90 g |
| Enclosure Colour: | Black |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 0 - 60% |
| Compatibility Information | |
| Designed For: | P/N: SVA5M3NEUA |
Convert and Scale a Composite or S-Video Signal to Work with a VGA Display. The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port.
- Compatible with composite video and S-video inputs
- Supports multiple display resolutions up to 1920 x 1080
- Plug-and-Play design for easy setup
- Compact length of 91.44 cm for flexible placement
- Ideal for connecting video sources to VGA displays
