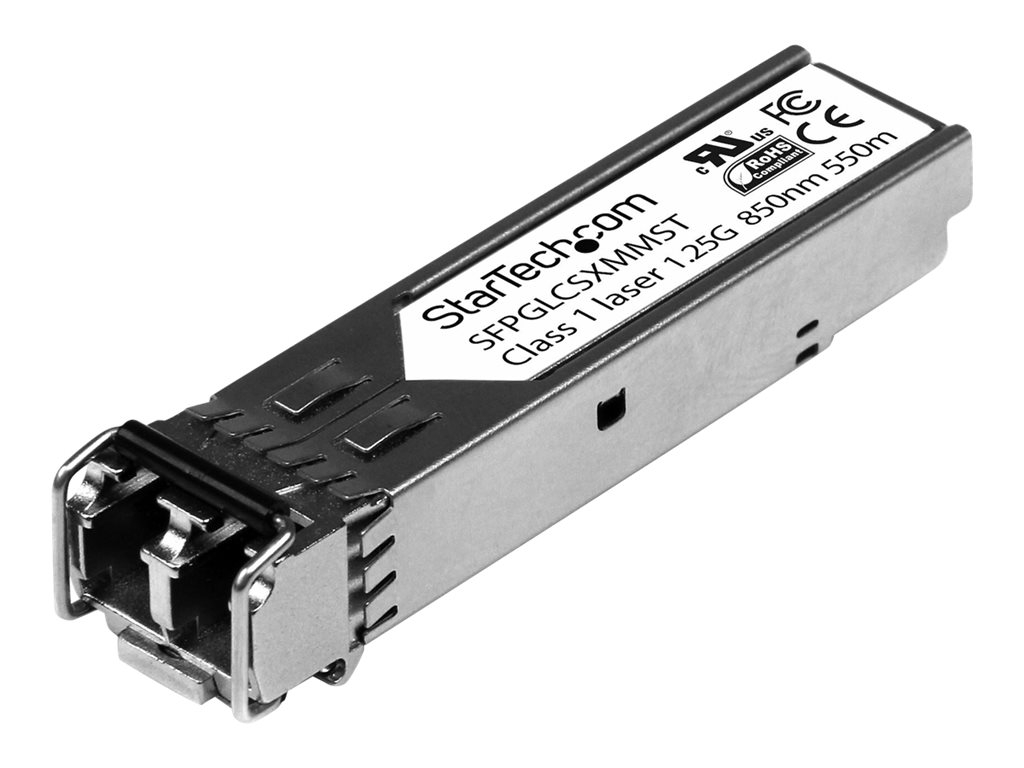

Printers & POSStarTech.com Cisco GLC-SX-MM Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, Gigabit Ethernet SFP, LC Connector, 550m, 850nm, Cisco IE3400, IE3300, IE3200 (SFPGLCSXMMST) - SFP (mini-GBIC) transceiver module - 1GbE
SKU SFPGLCSXMMST
| Product Description: | StarTech.com Cisco GLC-SX-MM Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, Gigabit Ethernet SFP, LC Connector, 550m, 850nm, Cisco IE3400, IE3300, IE3200 (SFPGLCSXMMST) - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type: | SFP (mini-GBIC) transceiver module - LC multi-mode |
| Form Factor: | Plug-in module |
| Cabling Type: | 1000Base-SX |
| Data Transfer Rate: | 1.25 Gbps |
| Optical Wave Length: | 850 nm |
| Data Link Protocol: | 1GbE |
- Specifications
- Description
| General | |
| Device Type: | SFP (mini-GBIC) transceiver module |
| Form Factor: | Plug-in module |
| Networking | |
| Connectivity Technology: | Wired |
| Cabling Type: | 1000Base-SX |
| Data Link Protocol: | 1GbE |
| Data Transfer Rate: | 1.25 Gbps |
| Optical Wave Length: | 850 nm |
| Max Transfer Distance: | 550 m |
| Features: | Full duplex capability, half duplex mode |
| Compliant Standards: | IEEE 802.3z |
| Expansion / Connectivity | |
| Interfaces: | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
| Compatible Slots: | 1 x SFP (mini-GBIC) |
| Miscellaneous | |
| Compliant Standards: | UL, FCC, RoHS, MSA |
| Dimensions & Weight | |
| Width: | 1.2 cm |
| Depth: | 6 cm |
| Height: | 1 cm |
| Weight: | 16 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
| Humidity Range Operating: | 30 - 70% |
| Compatibility Information | |
| Designed For: | P/N: ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2 |
The SFPGLCSXMMST is a Cisco GLC-SX-MM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The technical details come from 3rd party. edgemo is not responsible for any errors.
