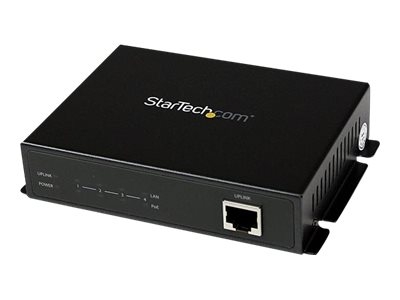

Printers & POSStarTech.com 5 Port Unmanaged Industrial Gigabit PoE Switch with 4 15.4W Power over Ethernet ports - Wall Mountable PoE Network Switch (IES51000POE) - switch - 5 ports - unmanaged
SKU IES51000POE
| Product Description: | StarTech.com 5 Port Unmanaged Industrial Gigabit PoE Switch with 4 15.4W Power over Ethernet ports - Wall Mountable PoE Network Switch (IES51000POE) - switch - 5 ports - unmanaged |
| Device Type: | Switch - 5 ports - unmanaged |
| Subtype: | Gigabit Ethernet |
| Ports: | 4 x 10/100/1000 (PoE) + 1 x 10/100/1000 |
| Power Over Ethernet (PoE): | PoE |
| PoE Budget: | 62 W |
| Features: | PoE, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode |
- Specifications
- Description
| General | |
| Device Type: | Switch - 5 ports - unmanaged |
| Enclosure Type: | Wall-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 4 x 10/100/1000 (PoE) + 1 x 10/100/1000 |
| Power Over Ethernet (PoE): | PoE |
| PoE Budget: | 62 W |
| Features: | PoE, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x |
| Processor: | 1 x Realtek Semiconductor RTL8370 |
| Status Indicators: | Power, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces: | 4 x 100Base-TX RJ-45 PoE - 15.4 W ¦ 1 x 100Base-TX RJ-45 uplink |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 120/230 V |
| Power Consumption Operational: | 62 Watt |
| Miscellaneous | |
| Colour: | Black |
| Compliant Standards: | UL, FCC, RoHS |
| Localisation: | North America, United Kingdom, Europe |
| Dimensions & Weight | |
| Width: | 9 cm |
| Depth: | 13 cm |
| Height: | 2.8 cm |
| Weight: | 366 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Min Storage Temperature: | 0 °C |
| Max Storage Temperature: | 50 °C |
| Humidity Range Storage: | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For: | P/N: NETRS2321P |
Connect Gigabit Ethernet and power to 4 PoE-enabled devices, with 15.4W per-port output. The IES51000POE 5-Port Gigabit PoE Switch with 4 PSE ports lets you connect Gigabit Ethernet and power to up to 4 PoE-enabled devices, or a mixture of PoE and non-PoE components.
Giving you the freedom to place your equipment in locations where power outlets are not available, this compact Power over Ethernet switch complies with IEEE 802.3af standards and supplies up to 15.4 W per port, with a total power budget of 62W. A true unmanaged switching solution, the 4 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, while all 5 ports auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Giving you the freedom to place your equipment in locations where power outlets are not available, this compact Power over Ethernet switch complies with IEEE 802.3af standards and supplies up to 15.4 W per port, with a total power budget of 62W. A true unmanaged switching solution, the 4 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, while all 5 ports auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
