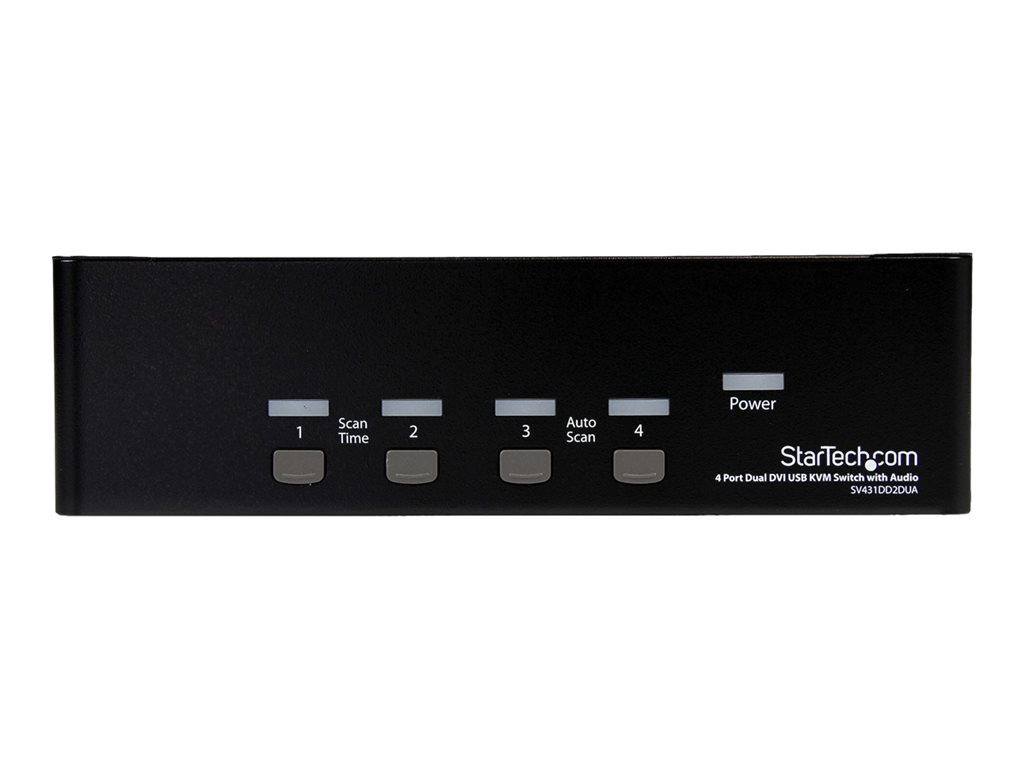

StarTech.com 4-Port Dual KVM Switch with Audio for DVI Computers - Built-in USB Hub (SV431DD2DUA) - KVM / audio / USB switch - 4 ports
SKU SV431DD2DUA
Product Description: | StarTech.com 4-Port Dual KVM Switch with Audio for DVI Computers - Built-in USB Hub (SV431DD2DUA) - KVM / audio / USB switch - 4 ports |
Device Type: | KVM / audio / USB switch - 4 ports |
Subtype: | KVM |
Ports: | 4 x KVM / audio / USB |
KVM Users Qty: | 1 local user |
Features: | Built-in 2-port USB 2.0 hub |
Dimensions (WxDxH): | 22 cm x 13 cm x 6 cm |
- Specifications
- Description
General | |
Device Type: | KVM / audio / USB switch - 4 ports |
Enclosure Type: | Desktop |
Subtype: | KVM |
Ports: | 4 x KVM / audio / USB |
KVM Local Users Qty: | 1 local user |
Keyboard / Mouse Interface: | USB |
Max Resolution: | 2048 x 1536 |
Features: | Built-in 2-port USB 2.0 hub |
Expansion / Connectivity | |

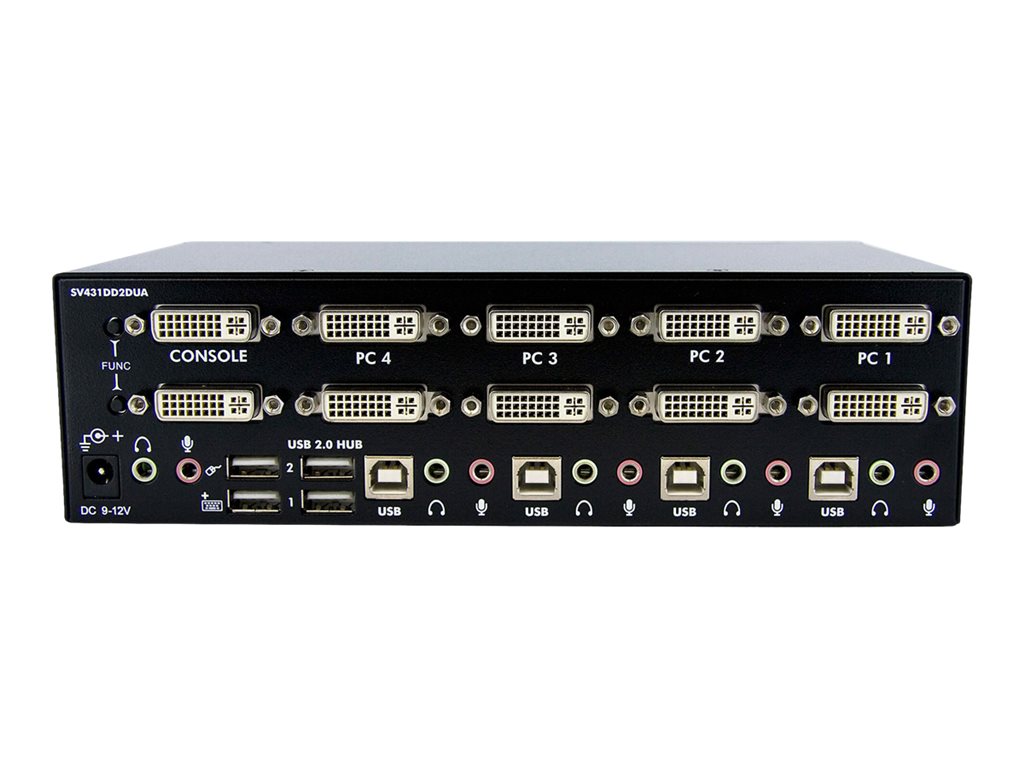

Interfaces: | 8 x DVI-I ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 4 x microphone mini-jack ¦ 4 x speakers mini-jack ¦ 2 x DVI-I ¦ 1 x microphone mini-jack ¦ 1 x speakers mini-jack ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 2 x USB 2.0 Type A |
Power | |
Power Device: | External power adapter |
Miscellaneous | |
Colour: | Black |
Compliant Standards: | FCC, RoHS |
Dimensions & Weight | |
Width: | 22 cm |
Depth: | 13 cm |
Height: | 6 cm |
Weight: | 1.2 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Compatibility Information | |
Designed For: | P/N: IM12D1500P, SV431RACK, SVA12M2NEUA, SVA12M5NA, USBDVI4N1A10, USBDVI4N1A6 |
Share a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers. The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.
If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.
If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
