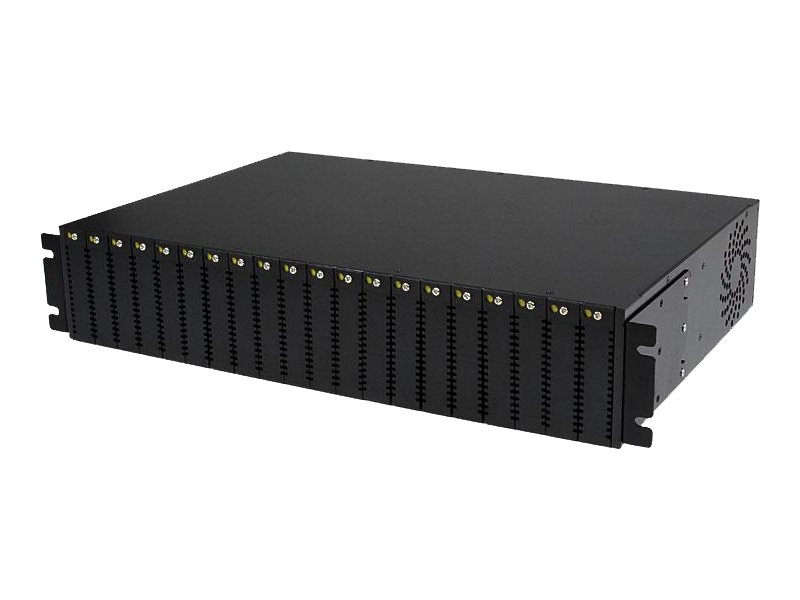

Printers & POSStarTech.com 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Fiber Media Converters (ETCHS2U) - modular expansion base
SKU ETCHS2U
| Product Description: | StarTech.com 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Fiber Media Converters (ETCHS2U) - modular expansion base |
| Device Type: | Modular expansion base |
| Form Factor: | Rack-mountable - 2U |
| Localisation: | North America, United Kingdom, Europe |
| Power: | AC 120/230 V (50/60 Hz) |
| Power Redundancy: | Optional |
| Dimensions (WxDxH): | 43.8 cm x 30.3 cm x 8.8 cm |
- Specifications
- Description
| General | |
| Device Type: | Modular expansion base |
| Height (Rack Units): | 2U |
| Installed Modules Qty (Max): | 0 (20) |
| Width: | 43.8 cm |
| Depth: | 30.3 cm |
| Height: | 8.8 cm |
| Weight: | 5 kg |
| Enclosure Colour: | Black |
| Localisation: | North America, United Kingdom, Europe |
| Networking | |
| Form Factor: | Rack-mountable |
| Connectivity Technology: | Wired |
| Expansion / Connectivity | |
| Expansion Slots: | 20 (total) / 20 (free) x expansion slot |
| Miscellaneous | |
| MTBF: | 65,000 hours |
| Compliant Standards: | UL, FCC, RoHS |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Optional |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational: | 60 Watt |
| Power Provided: | 200 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 60 °C |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For: | P/N: ET1000S40LC2, ET90110SC2, ET90110SM302, ET90110ST2, ET90110WDM2, ET91000LC2, ET91000LCOAM, ET91000SC2, ET91000SFP2, ET91000SFP2C, ET91000SM402 |
Add an un-managed, 20-slot media converter chassis to your rack or cabinet. The ETCHS2U 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Media Converters lets you add an un-managed, 20-slot media converter chassis to your rack or cabinet to provide central power and cooling.
The media converter rack includes a single 200W power supply to centrally power all 20 slots, with an additional slot to add a redundant power supply for maximum up-time. It also includes two cooling fans (one per side) to help extend the life of your media converters.
A perfect accessory to the StarTech.com ET series 2 converters, the 2U chassis is designed so that all critical components (Power, Fans and Media Converter Cards) are hot swappable to avoid network disruption.
The media converter rack includes a single 200W power supply to centrally power all 20 slots, with an additional slot to add a redundant power supply for maximum up-time. It also includes two cooling fans (one per side) to help extend the life of your media converters.
A perfect accessory to the StarTech.com ET series 2 converters, the 2U chassis is designed so that all critical components (Power, Fans and Media Converter Cards) are hot swappable to avoid network disruption.
The technical details come from 3rd party. edgemo is not responsible for any errors.
