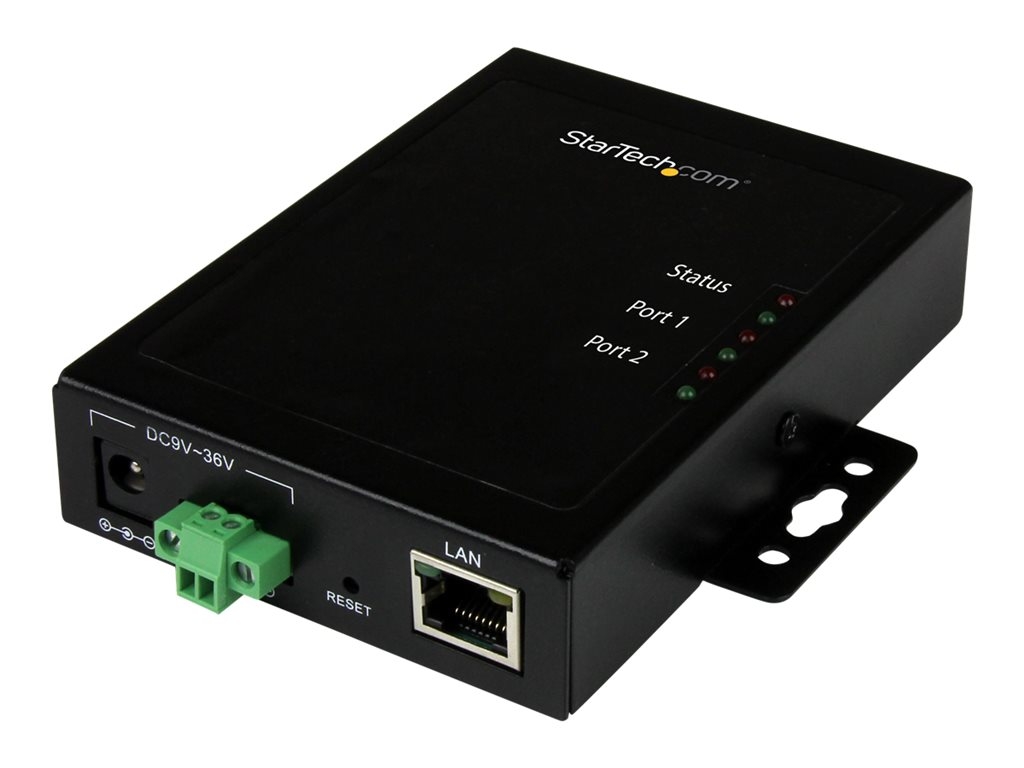

StarTech.com 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - device server
SKU NETRS2322P
Product Description: | StarTech.com 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - device server |
Device Type: | Device server |
Form Factor: | In-wall mountable |
Localisation: | North America, Europe, United Kingdom, Australia |
Ports Qty: | 2 |
Data Link Protocol: | Fast Ethernet, Ethernet, RS-232 |
Included Accessories: | Power terminal block |
- Specifications
- Description
General | |
Device Type: | Device server |
Width: | 8 cm |
Depth: | 11.3 cm |
Height: | 2.5 cm |
Weight: | 310 g |
Enclosure Colour: | Black |
Localisation: | North America, Europe, United Kingdom, Australia |
Networking | |
Form Factor: | In-wall mountable |
Ports Qty: | 2 |
Connectivity Technology: | Wired |
Data Transfer Rate: | 460.8 Kbps |
Data Link Protocol: | Fast Ethernet, Ethernet, RS-232 |
Network / Transport Protocol: | ICMP/IP, TCP/IP, UDP/IP, DHCP, BOOTP |
Remote Management Protocol: | Telnet |
Status Indicators: | Status, LAN, link/activity |
Features: | 15 KV Electrostatic Discharge Protection, 8 KV Contact Electrostatic Discharge Protection, auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex capability, reset button |
Compliant Standards: | IEEE 802.3, IEEE 802.3u |
Expansion / Connectivity | |
Interfaces: | 2 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45 |
Miscellaneous | |
Included Accessories: | Power terminal block |
Compliant Standards: | RoHS, WEEE, RCM, FCC |
Power | |
Power Device: | External power adapter |
Power Redundancy: | Yes |
Voltage Required: | AC 120/230 V / DC 9 - 36 V |
Software / System Requirements | |
Software Included: | Drivers & Utilities, Virtual COM software (Windows only) |
OS Required: | Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS, Linux |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 85 °C |
Connect, configure and manage two remote RS232 serial devices, over an IP network. This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it's perfect for factory and industrial settings.
If you're looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.
With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
If you're looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.
With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
