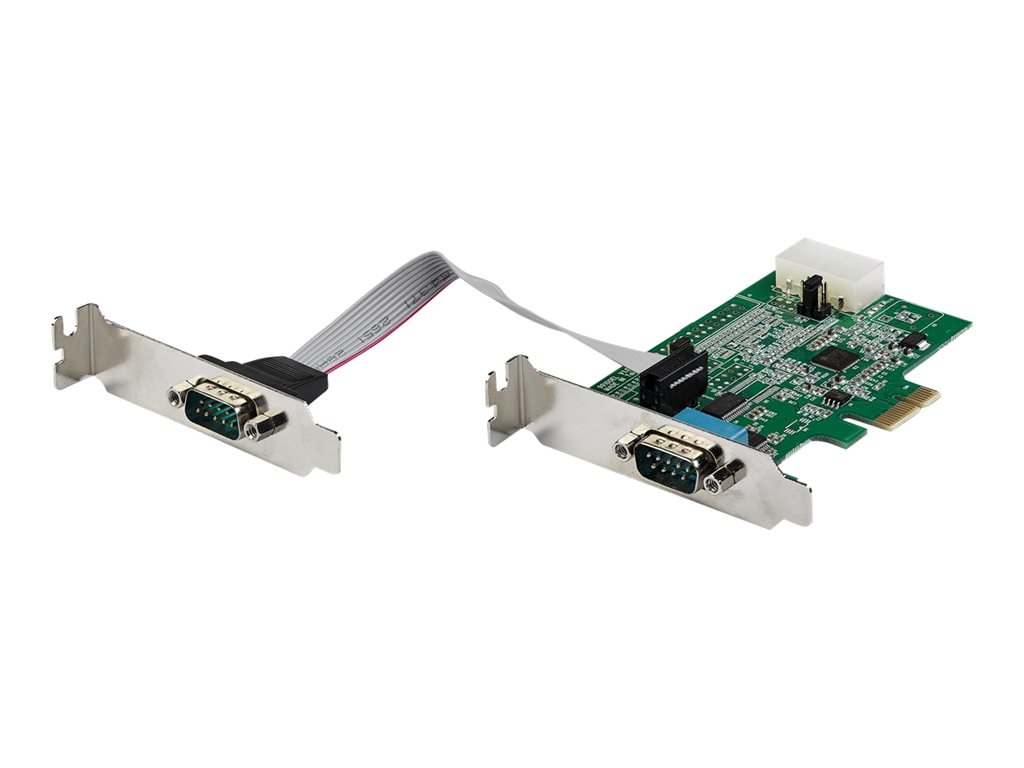

StarTech.com 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Ports, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX2S953LP) - serial adapter - PCIe - RS-232 x

SKU PEX2S953LP
Product Description:StarTech.com 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Ports, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX2S953LP) - serial adapter - PCIe - RS-232 x 2
Device Type:Serial adapter
Form Factor:Plug-in card - low profile
Interface (Bus) Type:PCI Express x1
PCI Specification Revision:PCIe 1.1
Ports:RS-232 x 2
Dimensions (WxDxH):6.7 cm x 9.8 cm x 1.8 cm
In Stock(1)
  • Specifications
  • Description
General
Device Type:Serial adapter
Form Factor:Plug-in card - low profile
Interface (Bus) Type:PCI Express x1
PCI Specification Revision:PCIe 1.1
Networking
Ports:RS-232 x 2
Connectivity Technology:Wired
Data Link Protocol:RS-232
Data Transfer Rate:921.6 Kbps
Features:Full duplex mode, 256-byte FIFO
Processor / Memory
Processor:ASIX AX99100
Expansion / Connectivity
Interfaces:2 x RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
Included Accessories:Full-height bracket
Compliant Standards:WHQL, FCC, RoHS, WEEE
Software / System Requirements
OS Required:Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x
Dimensions & Weight
Width:6.7 cm
Depth:9.8 cm
Height:1.8 cm
Weight:55.6 g
Dimensions & Weight (Shipping)
Shipping Weight:146.4 g
Manufacturer Warranty
Service & Support:Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature:-10 °C
Max Operating Temperature:80 °C
Humidity Range Operating:5 - 85%
vis mere
This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART; Supports max baud rate of up-to 921.4Kbps; Provides 5/12V power output on Pin 9 when external power is connected; 128-byte depth FIFO per transmitter and receiver; Supports 9, 8, 7, 6, 5 data bits; Asix AX99100 chipset; PCI Express 1.1 compliant.




The technical details come from 3rd party. edgemo is not responsible for any errors.
