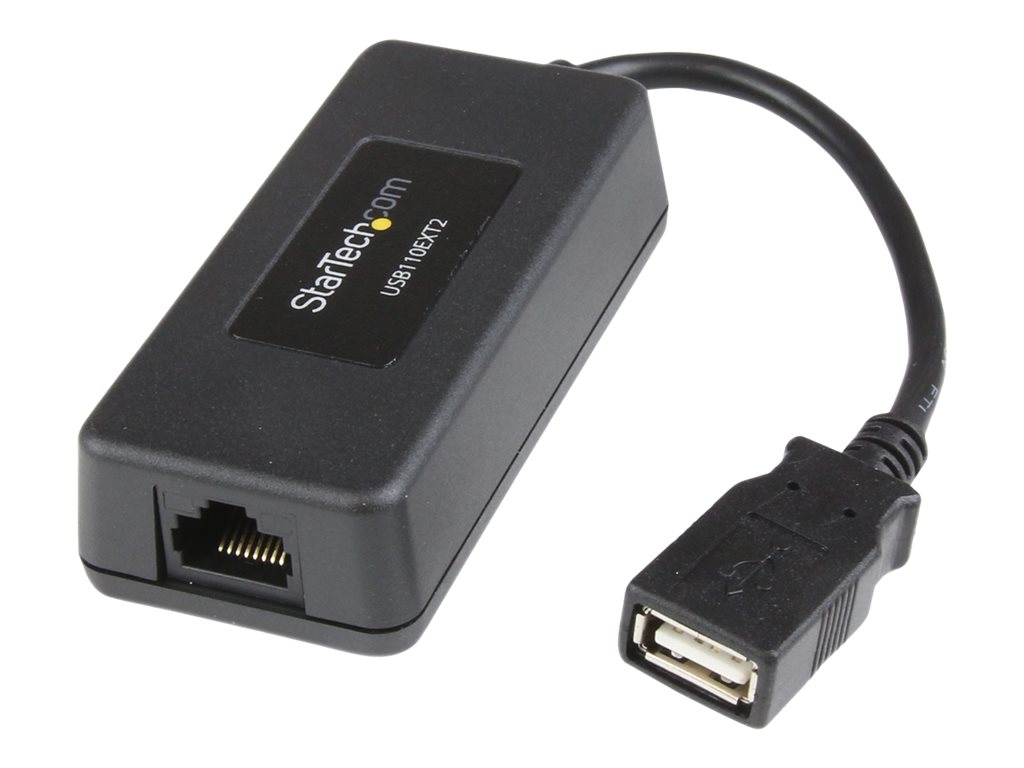

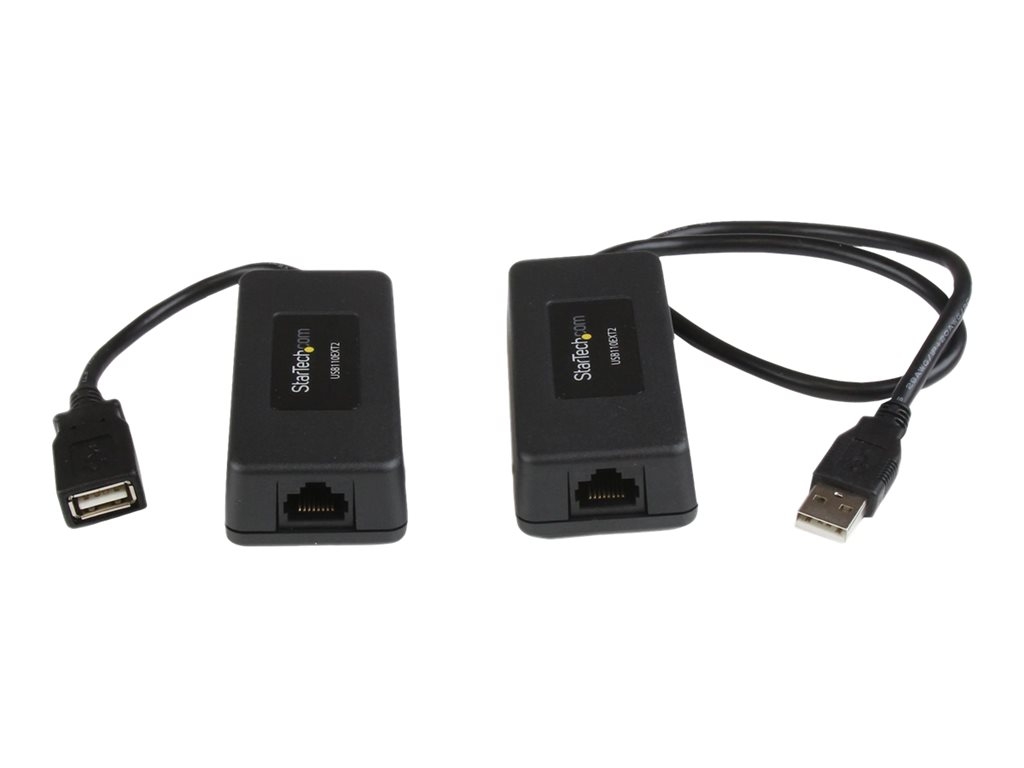

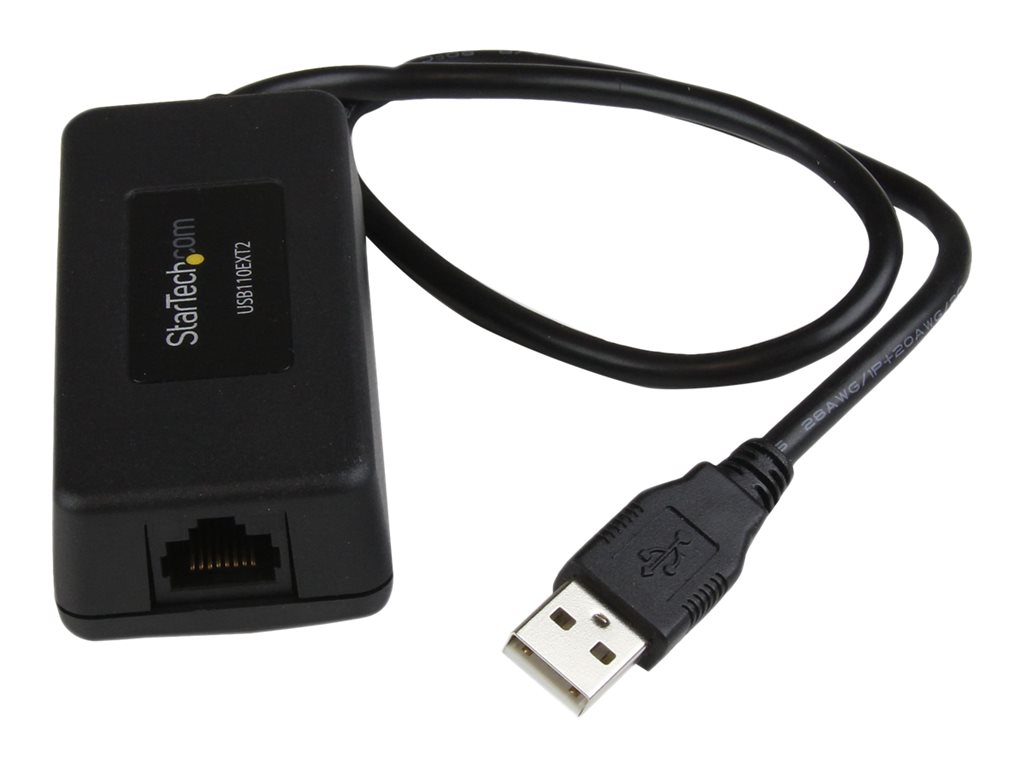

Printers & POSStarTech.com 1-Port USB 1.1 Extender - Up to 131 ft (40 m) over Cat5/Cat6 Extension - Up to 12 Mbps USB 1.1 Ethernet Extender (USB110EXT2) - USB extender - USB
SKU USB110EXT2
| Product Description: | StarTech.com 1-Port USB 1.1 Extender - Up to 131 ft (40 m) over Cat5/Cat6 Extension - Up to 12 Mbps USB 1.1 Ethernet Extender (USB110EXT2) - USB extender - USB |
| Device Type: | USB extender |
| Form Factor: | External |
| Data Transfer Rate: | 12 Mbps |
| Data Link Protocol: | USB |
| Transmission Medium: | CAT 5/6 |
| Max Transfer Distance: | 40 m |
- Specifications
- Description
| General | |
| Device Type: | USB extender |
| Form Factor: | External |
| Colour: | Black |
| Networking | |
| Connectivity Technology: | Wired |
| Data Link Protocol: | USB |
| Data Transfer Rate: | 12 Mbps |
| Max Transfer Distance: | 40 m |
| Features: | USB powered |
| Compliant Standards: | USB 1.1 |
| Expansion / Connectivity | |
| Interfaces: | 1 x USB - Type A female ¦ 1 x USB - Type A male ¦ 2 x - RJ-45 female |
| Miscellaneous | |
| Compliant Standards: | FCC, RoHS |
| Software / System Requirements | |
| OS Required: | Linux, Apple MacOS X, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Vista / XP / 7 |
| Dimensions & Weight | |
| Width: | 2.5 cm |
| Depth: | 8.5 cm |
| Height: | 4 cm |
| Weight: | 50 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 20 - 90% |
| Compatibility Information | |
| Designed For: | P/N: UUSBOTG |
Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable. The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.
The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.
Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.
The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.
Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.
The technical details come from 3rd party. edgemo is not responsible for any errors.
