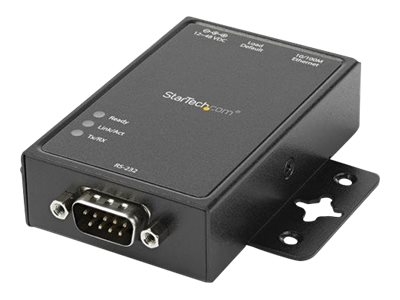

StarTech.com 1 Port RS232 to Ethernet IP Converter / Device Server - Aluminum - Serial over IP Device Server - Serial to IP Converter (NETRS2321P) - device server
SKU NETRS2321P
Product Description: | StarTech.com 1 Port RS232 to Ethernet IP Converter / Device Server - Aluminum - Serial over IP Device Server - Serial to IP Converter (NETRS2321P) - device server |
Device Type: | Device server |
Form Factor: | DIN rail mountable |
Localisation: | North America, United Kingdom, Europe |
Data Link Protocol: | Ethernet, Fast Ethernet, RS-232 |
OS Required: | Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019 |
Power: | AC 100/230 V |
- Specifications
- Description
General | |
Device Type: | Device server |
Width: | 5.3 cm |
Depth: | 8.1 cm |
Height: | 2.3 cm |
Weight: | 295 g |
Enclosure Colour: | Black |
Localisation: | North America, United Kingdom, Europe |
Networking | |
Form Factor: | DIN rail mountable |
Connectivity Technology: | Wired |
Data Transfer Rate: | 460.8 Kbps |
Data Link Protocol: | Ethernet, Fast Ethernet, RS-232 |
Network / Transport Protocol: | TCP/IP, UDP/IP, ICMP/IP, ARP, DHCP |
Remote Management Protocol: | Telnet, HTTP |
Status Indicators: | Power, transmit, receive, link/activity |
Features: | Flow control, DHCP support, wall mountable |
Expansion / Connectivity | |
Interfaces: | 1 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45 |
Miscellaneous | |
Compliant Standards: | FCC, RoHS |
Power | |
Power Device: | External power adapter |
Voltage Required: | AC 100/230 V |
Software / System Requirements | |
Software Included: | Drivers & Utilities |
OS Required: | Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019 |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 60 °C |
Humidity Range Operating: | 0 - 90% (non-condensing) |
Compatibility Information | |
Designed For: | P/N: SVA12M2NEUA, SVA12M5NA |
Connect to, configure and remotely manage an RS-232 serial device over an IP network. This 1-port serial device server is an effective serial-over-IP solution that lets you connect to, configure, and remotely manage an RS232 serial device over a LAN (Local Area Network).
The versatile device server is designed to function seamlessly with your integrated serial ports, while offering baud rates faster than many other device servers (up to 460.8Kbps).The device server provides the tools you need to communicate with remote RS-232 devices as if they were directly connected.
It offers versatile browser-based or Virtual COM port software configuration for customizing the device to suit your application. Plus, the software communicates directly with the device server, so it can be used in Virtual Machine (VM) environments if you have multiple VMs sharing the same set of hardware.
The device server also offers remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP and UDP protocols.
With a sturdy aluminum housing and DIN rail or surface mounting brackets, the serial device server provides a durable remote serial interface for industrial automation, security, Point of Sale and many other applications.
The versatile device server is designed to function seamlessly with your integrated serial ports, while offering baud rates faster than many other device servers (up to 460.8Kbps).The device server provides the tools you need to communicate with remote RS-232 devices as if they were directly connected.
It offers versatile browser-based or Virtual COM port software configuration for customizing the device to suit your application. Plus, the software communicates directly with the device server, so it can be used in Virtual Machine (VM) environments if you have multiple VMs sharing the same set of hardware.
The device server also offers remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP and UDP protocols.
With a sturdy aluminum housing and DIN rail or surface mounting brackets, the serial device server provides a durable remote serial interface for industrial automation, security, Point of Sale and many other applications.
The technical details come from 3rd party. edgemo is not responsible for any errors.
