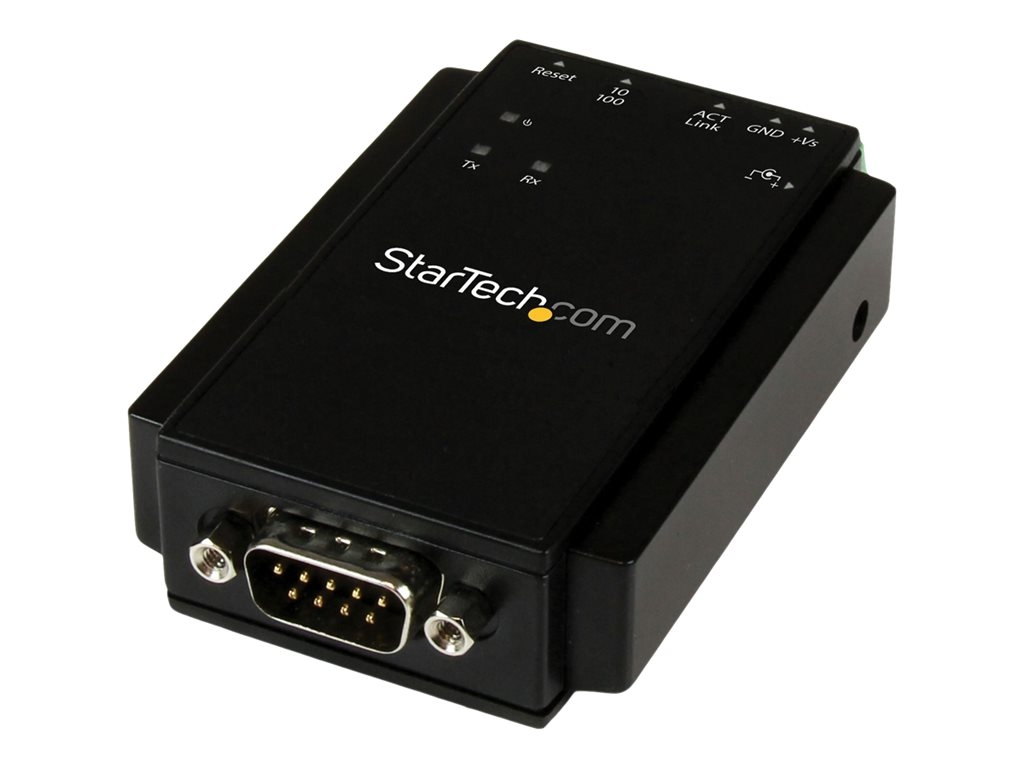

StarTech.com 1 Port RS-232 Serial to IP Ethernet Device Server - device server

SKU NETRS232
Product Description:StarTech.com 1 Port RS-232 Serial to IP Ethernet Device Server - device server
Device Type:Device server
Form Factor:External
Data Link Protocol:Ethernet, RS-232
OS Required:Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10
Power:AC 100/230 V
Dimensions (WxDxH):5.4 cm x 8.6 cm x 2.3 cm
09-01-2025
  • Specifications
  • Description
General
Device Type:Device server
Width:5.4 cm
Depth:8.6 cm
Height:2.3 cm
Weight:65 g
Enclosure Colour:Black
Networking
Form Factor:External
Connectivity Technology:Wired
Data Transfer Rate:230.4 Kbps
Data Link Protocol:Ethernet, RS-232
Network / Transport Protocol:TCP/IP, UDP/IP, ICMP/IP, DHCP
Remote Management Protocol:HTTP
Status Indicators:Power, LAN, link/activity
Features:DHCP support, ARP support, auto-uplink (auto MDI/MDI-X), surge protection, static IP mode
Compliant Standards:IEEE 802.3, IEEE 802.3u
Expansion / Connectivity
Interfaces:1 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45
Miscellaneous
Compliant Standards:FCC, RoHS
Power
Power Device:External power adapter
Voltage Required:AC 100/230 V
Power Consumption Operational:1.45 Watt
Software / System Requirements
Software Included:Drivers & Utilities
OS Required:Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10
Manufacturer Warranty
Service & Support:Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:60 °C
Humidity Range Operating:0 - 90%
Compatibility Information
Designed For:P/N: IES101002SFP
vis mere
A cost-effective way to connect, configure, and manage a remote RS-232 serial device over an IP network. This 1-Port Serial Device Server lets you remotely access and manage an RS232 serial device over a local area network (LAN), for a simple and cost-effective serial-over-IP control solution.
For more control options, the device server is compatible with the free, StarTech.com Serial Device Application Software NETRSAPP. When coupled with the NETRS232, this handy application for iOS, Android, and Chrome Browser lets you build a custom serial control interface that's tailored to your specific application.
For installation flexibility across a variety of environments, you can power the device server using the provided 12V DC power adapter, or using the integrated 10~30V DC terminal block.
Plus, the device server is DIN rail mountable for out-of-the-way installations.
To help ensure reliable performance and prevent possible damage, the serial device server offers 15KV ESD (Electrostatic Discharge) protection, so you can rest assured that the device server won't become damaged due to externally generated ESD.
This highly-customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP Server/Client, UDP, HTTP, DHCP, ICMP(PING), Static IP, and ARP protocols.
  • Upgradeable firmware
  • Supports network protocols - IP, HTTP, ICMP, TCP, TFTP and UDP
  • Remote Telenet configuration
  • Browser based configuration of network settings, serial port line settings, UART transmit and receive buffer trigger levels and serial port flow control
