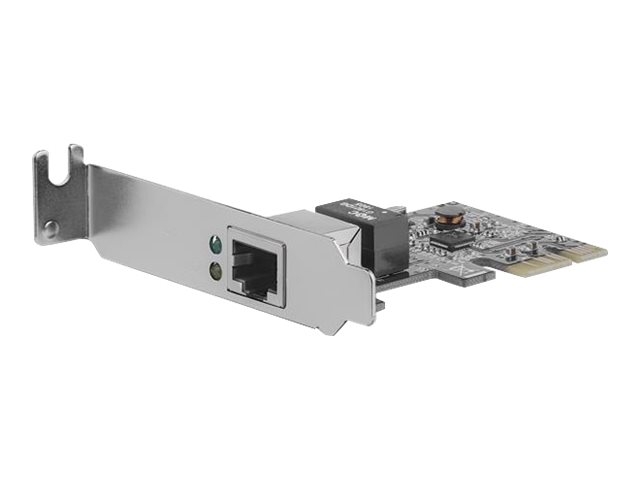

Printers & POSStarTech.com 1 Port PCIe Network Card - Low Profile - RJ45 Port - Realtek RTL8111H Chipset - Ethernet Network Card - NIC Server Adapter Network Card (ST1000SPEX2L) - network adapter - PCIe - Gigabit Ethernet x 1
SKU ST1000SPEX2L
| Product Description: | StarTech.com 1 Port PCIe Network Card - Low Profile - RJ45 Port - Realtek RTL8111H Chipset - Ethernet Network Card - NIC Server Adapter Network Card (ST1000SPEX2L) - network adapter - PCIe - Gigabit Ethernet x 1 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express x1 |
| Ports: | Gigabit Ethernet x 1 |
| Dimensions (WxDxH): | 6.5 cm x 6.79 cm |
| Weight: | 36 g |
- Specifications
- Description
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express x1 |
| Networking | |
| Ports: | Gigabit Ethernet x 1 |
| Connectivity Technology: | Wired |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Status Indicators: | Port transmission speed, link/activity |
| Features: | Full duplex capability, auto-uplink (auto MDI/MDI-X) |
| Processor / Memory | |
| Processor: | 1 x Realtek Semiconductor RTL8111E |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Included Accessories: | Full-height bracket |
| Compliant Standards: | FCC, RoHS |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities |
| OS Required: | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.6 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
| Dimensions & Weight | |
| Width: | 6.5 cm |
| Depth: | 6.79 cm |
| Weight: | 36 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
| Humidity Range Operating: | 10 - 90% |
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot. The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
