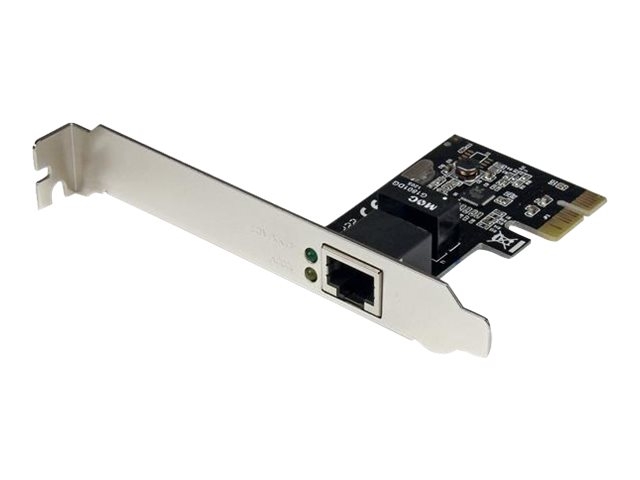

Printers & POSStarTech.com 1 Port PCIe Gigabit Network Server Adapter NIC Card - Dual Profile - Gigabit Desktop Adapter REV E Intel 6 Chip support (ST1000SPEX2) - network adapter - PCIe - Gigabit Ethernet
SKU ST1000SPEX2
| Product Description: | StarTech.com 1 Port PCIe Gigabit Network Server Adapter NIC Card - Dual Profile - Gigabit Desktop Adapter REV E Intel 6 Chip support (ST1000SPEX2) - network adapter - PCIe - Gigabit Ethernet |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express x1 |
| Ports: | Gigabit Ethernet |
| Dimensions (WxDxH): | 2 cm x 12 cm x 8 cm |
| Weight: | 36 g |
- Specifications
- Description
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express x1 |
| Networking | |
| Ports: | Gigabit Ethernet |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Status Indicators: | Link/activity |
| Features: | Full duplex capability, VLAN support, WOL, auto-uplink (auto MDI/MDI-X), Jumbo Frames support |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Processor / Memory | |
| Processor: | 1 x Realtek Semiconductor RTL8111E |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T - RJ-45 |
| Compatible Slots: | 1 x PCI Express x1 |
| Miscellaneous | |
| Included Accessories: | Low-profile bracket |
| Compliant Standards: | FCC, RoHS |
| Software / System Requirements | |
| OS Required: | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.6 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
| Dimensions & Weight | |
| Width: | 2 cm |
| Depth: | 12 cm |
| Height: | 8 cm |
| Weight: | 36 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
| Humidity Range Operating: | 10 - 90% |
| Compatibility Information | |
| Designed For: | P/N: ET91000SM10, ET91000SM20 |
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot. The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
