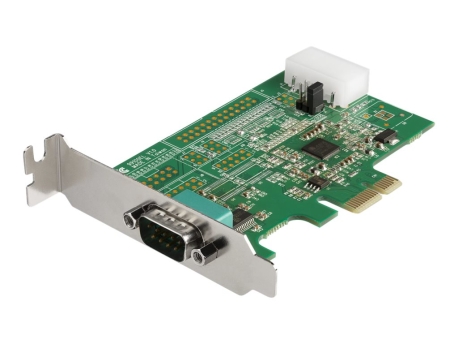

StarTech.com 1-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Port, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX1S953LP) - serial adapter - PCIe - RS-232 x
SKU PEX1S953LP
Product Description: | StarTech.com 1-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Port, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX1S953LP) - serial adapter - PCIe - RS-232 x 1 |
Device Type: | Serial adapter |
Form Factor: | Plug-in card - low profile |
Interface (Bus) Type: | PCI Express x1 |
PCI Specification Revision: | PCIe 1.1 |
Ports: | RS-232 x 1 |
Dimensions (WxDxH): | 4.62 cm x 9.8 cm x 1.8 cm |
- Specifications
- Description
General | |
Device Type: | Serial adapter |
Form Factor: | Plug-in card - low profile |
Interface (Bus) Type: | PCI Express x1 |
PCI Specification Revision: | PCIe 1.1 |
Networking | |
Ports: | RS-232 x 1 |
Connectivity Technology: | Wired |
Data Link Protocol: | RS-232 |
Data Transfer Rate: | 921.6 Kbps |
Features: | Full duplex mode, 256-byte FIFO |
Processor / Memory | |
Processor: | ASIX AX99100 |
Expansion / Connectivity | |
Interfaces: | 1 x RS-232 - 9 pin D-Sub (DB-9) |
Miscellaneous | |
Included Accessories: | Full-height bracket |
Compliant Standards: | WHQL, FCC, RoHS, WEEE |
Software / System Requirements | |
OS Required: | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x |
Dimensions & Weight | |
Width: | 4.62 cm |
Depth: | 9.8 cm |
Height: | 1.8 cm |
Weight: | 46.2 g |
Dimensions & Weight (Shipping) | |
Shipping Weight: | 124.6 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - lifetime |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 70 °C |
Humidity Range Operating: | 20 - 80% |
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART; Supports max baud rate of up-to 921.4Kbps; Provides 5/12V power output on Pin 9 when external power is connected; 128-byte depth FIFO per transmitter and receiver; Supports 9, 8, 7, 6, 5 data bits; Asix AX99100 chipset; PCI Express 1.1 compliant.
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART; Supports max baud rate of up-to 921.4Kbps; Provides 5/12V power output on Pin 9 when external power is connected; 128-byte depth FIFO per transmitter and receiver; Supports 9, 8, 7, 6, 5 data bits; Asix AX99100 chipset; PCI Express 1.1 compliant.
