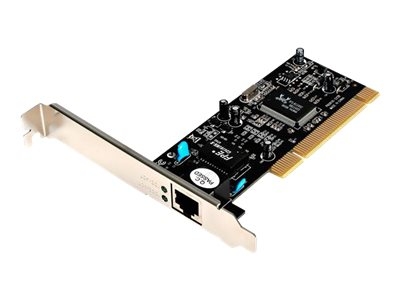

Printers & POSStarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card (ST1000BT32) - network adapter - PCI - Gigabit Ethernet
SKU ST1000BT32
| Product Description: | StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card (ST1000BT32) - network adapter - PCI - Gigabit Ethernet |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI |
| Ports: | Gigabit Ethernet |
| Dimensions (WxDxH): | 14.4 cm x 6.3 cm |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
- Specifications
- Description
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI |
| Networking | |
| Ports: | Gigabit Ethernet |
| Connectivity Technology: | Wired |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Status Indicators: | Port transmission speed, link/activity |
| Features: | Flow control, full duplex capability, VLAN support, WOL |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T - RJ-45 |
| Compatible Slots: | 1 x PCI |
| Miscellaneous | |
| Compliant Standards: | FCC Class B certified |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities, Novell NetWare ODI for DOS |
| OS Required: | UNIX, Novell NetWare 5.x, Microsoft Windows NT, Microsoft Windows Server 2003, Apple MacOS X 10.4, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/ME/XP/Vista/7/8/8.1/10, Linux 2.6.x to 4.11.x LTS versions, Microsoft Windows Server 2019 |
| Dimensions & Weight | |
| Depth: | 14.4 cm |
| Height: | 6.3 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 55 °C |
This PCI-based 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards.
Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.
Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.
- Easy Plug and Play installation
- Full duplex support allows for transfer rates up to 2000 Mbits/sec.
- Also auto-negotiates 10 and 100 Mbits/sec. connections for additional flexibility
