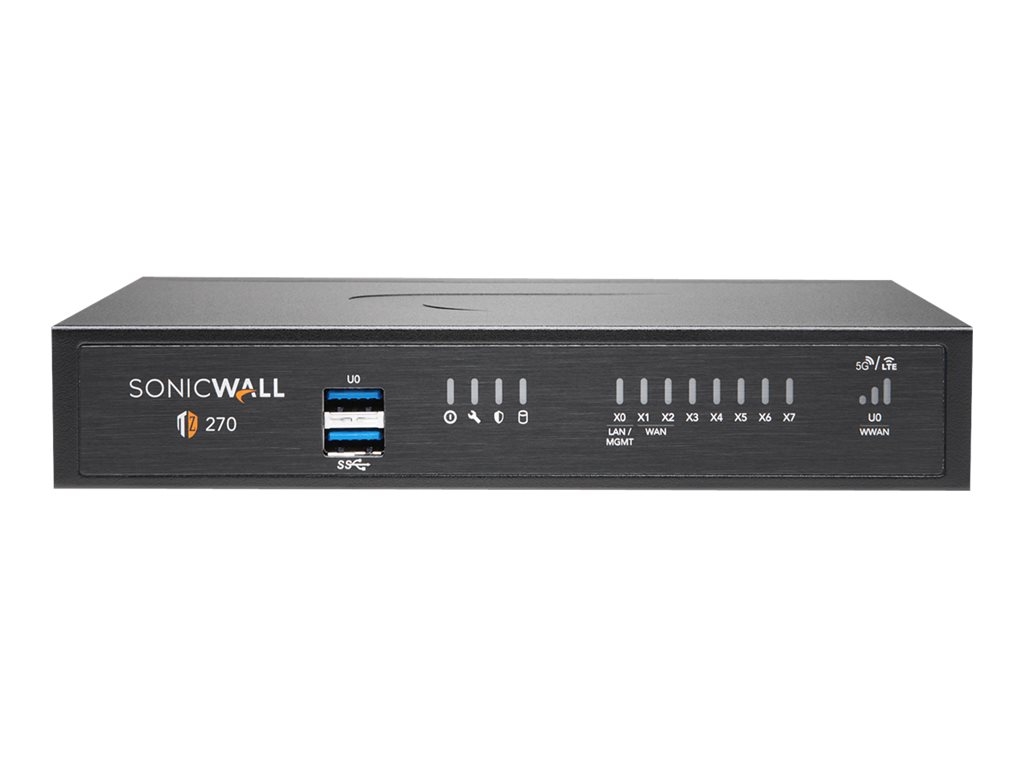

Printers & POSSonicWall TZ270 - security appliance
SKU 02-SSC-6448
| Product Description: | SonicWall TZ270 - security appliance |
| Device Type: | Security appliance |
| Form Factor: | Desktop |
| Data Link Protocol: | Gigabit Ethernet |
| Performance: | Firewall throughput: 2 Gbps ¦ Threat prevention throughput: 750 Mbps ¦ Application throughput: 1 Gbps ¦ IPS throughput: 1 Gbps ¦ Anti-malware throughput: 750 Mbps ¦ TLS/SSL inspection and decryption throughput: 300 Mbps ¦ VPN throughput (IPSec): 750 Mbps ¦ Connection rate: 6000 connections per second |
| Capacity: | Virtual interfaces (VLANs): 64 ¦ SSL VPN licences: 1 (maximum 50) ¦ VPN tunnels (site-to-site): 50 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 750000 ¦ DPI connections: 150000 ¦ DPI SSL connections: 25000 ¦ Single Sign-On (SSO) users: 1000 ¦ Manageable access points: 16 |
| VoIP Protocols: | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
- Specifications
- Description
| General | |
| Device Type: | Security appliance |
| Width: | 19 cm |
| Depth: | 13.5 cm |
| Height: | 3.5 cm |
| Weight: | 820 g |
| Networking | |
| Form Factor: | Desktop |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet |
| Network / Transport Protocol: | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Remote Management Protocol: | SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH |
| Performance: | Firewall throughput: 2 Gbps ¦ Threat prevention throughput: 750 Mbps ¦ Application throughput: 1 Gbps ¦ IPS throughput: 1 Gbps ¦ Anti-malware throughput: 750 Mbps ¦ TLS/SSL inspection and decryption throughput: 300 Mbps ¦ VPN throughput (IPSec): 750 Mbps ¦ Connection rate: 6000 connections per second |
| Capacity: | Virtual interfaces (VLANs): 64 ¦ SSL VPN licences: 1 (maximum 50) ¦ VPN tunnels (site-to-site): 50 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 750000 ¦ DPI connections: 150000 ¦ DPI SSL connections: 25000 ¦ Single Sign-On (SSO) users: 1000 ¦ Manageable access points: 16 |
| Status Indicators: | Link/activity, power, secure, SSD activity, test mode |
| Features: | SD-WAN support, VLAN support, firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), content filtering, antivirus analysis, anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, port mirroring, bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 3G/4G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention |
| Encryption Algorithm: | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method: | RADIUS, LDAP, XAUTH authentication |
| IP Telephony | |
| VoIP Protocols: | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Expansion / Connectivity | |
| Interfaces: | 6 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| Miscellaneous | |
| MTBF: | 51.1 years |
| Compliant Standards: | FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, WEEE, REACH, BSMI, KCC, MSIP, CoC |
| Pricing Type: | Not for resale |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational: | 16.84 Watt |
| Power Provided: | 36 Watt |
| Software / System Requirements | |
| OS Provided: | SonicOS 7.0 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 1.41 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
The latest SonicWall TZ series, are the first desktop form factor next generation firewalls (NGFW) with 10 or 5 Gigabit Ethernet interfaces. The series consist of a wide range of products to suit a variety of use cases. Designed for small, mid-sized organizations and distributed enterprise with SD-Branch locations, the 7th generation (Gen 7) TZ series delivers industry-validated security effectiveness with best-in-class price performance. These NGFWs address the growing trends in web encryption, connected devices and high-speed mobility by delivering a solution that meets the need for automated, real-time breach detection and prevention. The Gen 7 TZ series are highly scalable, with high port density of up to 10 ports. It features both inbuilt and an expandable storage of up to 256GB, that enables various features including logging, reporting, caching, firmware backup and more. An optional second power supply provides added redundancy in case of failure on select models.
Designed for home offices and lean branches, the TZ270 series deliver industry-validated security effectiveness with best-inclass price-performance.
Designed for home offices and lean branches, the TZ270 series deliver industry-validated security effectiveness with best-inclass price-performance.
- Advanced encryption for comprehensive network security
- Supports up to 200 IPSec VPN clients for secure remote access
- Firewall throughput of 2 Gbps for high-speed, reliable performance
- SD-WAN support for optimized network efficiency and performance
- IPv6 support ensures readiness for network infrastructure evolution
The technical details come from 3rd party. edgemo is not responsible for any errors.
