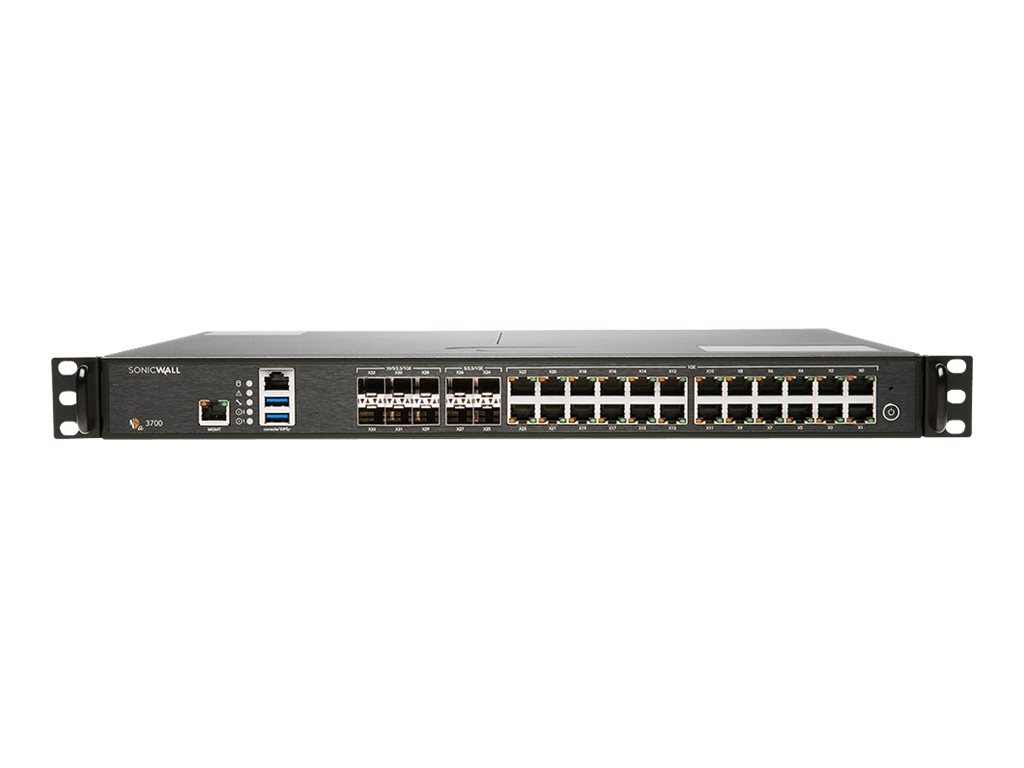

Printers & POSSonicWall NSa 3700 - High Availability - security appliance
SKU 02-SSC-7368
| Product Description: | SonicWall NSa 3700 - High Availability - security appliance |
| Device Type: | Security appliance |
| Form Factor: | Rack-mountable - 1U |
| Hard Drive: | 128 GB x 1 |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet |
| Performance: | Firewall throughput: 5.5 Gbps ¦ Threat prevention throughput: 3.5 Gbps ¦ Application throughput: 4.2 Gbps ¦ IPS throughput: 3.8 Gbps ¦ Anti-malware throughput: 3.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 850 Mbps ¦ VPN throughput (IPSec): 2.2 Gbps ¦ Connection rate: 22500 connections per second |
| Capacity: | DPI connections: 750000 ¦ Maximum number of access points: 32 ¦ VPN tunnels (site-to-site): 3000 ¦ SPI connections: 2000000 ¦ Virtual interfaces (VLANs): 256 ¦ DPI SSL connections: 150000 ¦ IPSec VPN clients: 50 ¦ SSL VPN licences: 2 ¦ Authenticated users (internal database): 250 |
- Specifications
- Description
| General | |
| Device Type: | Security appliance |
| Height (Rack Units): | 1U |
| Width: | 43 cm |
| Depth: | 32.5 cm |
| Height: | 4.5 cm |
| Weight: | 4.6 kg |
| Processor / Memory / Storage | |
| Hard Drive: | SSD 128 GB x 1 - M.2 |
| Networking | |
| Form Factor: | Rack-mountable |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet |
| Network / Transport Protocol: | TCP/IP, UDP/IP, ICMP/IP, IPSec, DHCP, PPPoE, L2TP, PPTP, HTTP, HTTPs |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Remote Management Protocol: | SNMP 2, SNMP 3, SSH, CLI |
| Performance: | Firewall throughput: 5.5 Gbps ¦ Threat prevention throughput: 3.5 Gbps ¦ Application throughput: 4.2 Gbps ¦ IPS throughput: 3.8 Gbps ¦ Anti-malware throughput: 3.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 850 Mbps ¦ VPN throughput (IPSec): 2.2 Gbps ¦ Connection rate: 22500 connections per second |
| Capacity: | DPI connections: 750000 ¦ Maximum number of access points: 32 ¦ VPN tunnels (site-to-site): 3000 ¦ SPI connections: 2000000 ¦ Virtual interfaces (VLANs): 256 ¦ DPI SSL connections: 150000 ¦ IPSec VPN clients: 50 ¦ SSL VPN licences: 2 ¦ Authenticated users (internal database): 250 |
| Features: | SD-WAN support, URL filtering, VPN support, Intrusion Prevention System (IPS), Real-Time Deep Memory Inspection (RTDMI), Reassembly-Free Deep Packet Inspection (RFDPI), Stateful Packet Inspection (SPI), DoS attack prevention, DDos attack prevention, DNS proxy, anti-malware protection, web threat protection, bandwidth control, Jumbo Frames support, NAT support, VLAN trunking, Quality of Service (QoS), load balancing, PAT support, Dead Peer Detection (DPD), DHCP server, DHCP relay, IPv6 support, IPv4 support, Zero-touch provisioning (ZTP), NetFlow, IPFIX, port mirroring, anti-virus protection, Common Access Card (CAC) reader support, DSCP Marking, Stateful switchover (SSO) |
| Encryption Algorithm: | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, TLS 1.3 |
| Authentication Method: | RADIUS, internal user database, LDAP, XAUTH authentication |
| IP Telephony | |
| VoIP Protocols: | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| IP Telephony Features: | VoIP gatekeeper support, VoIP outbound bandwidth management |
| Expansion / Connectivity | |
| Expansion Slots: | 1 expansion slot |
| Interfaces: | 24 x 1000Base-T - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x management - RJ-45 ¦ 6 x 10GBase-X - SFP+ ¦ 4 x 5Gb Ethernet - SFP+ |
| Miscellaneous | |
| Compliant Standards: | FIPS 140-2 Level 2, UC APL, VPNC certified, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class A certified, EMC, LVD, RoHS, VCCI Class A, C-Tick, KCC Class A, UL, cUL, CB, WEEE, REACH, ANATEL, BSMI, TUV GS, MSIP Class A, Mexico CoC |
| Power | |
| Power Device: | Internal power supply |
| Power Redundancy: | Optional |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational: | 36.3 Watt |
| Power Provided: | 90 Watt |
| Software / System Requirements | |
| OS Provided: | SonicOS 7.0.1 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 7 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
The SonicWall Network Security Appliance (NSA) series combines the patented SonicWall Reassembly Free Deep Packet Inspection (RFDPI) engine with a powerful and massively scalable multi-core architecture to deliver intrusion prevention, gateway anti-virus, gateway anti-spyware, and application intelligence and control for businesses of all sizes. By integrating automated and dynamic security capabilities into a single platform, the NSA series provides comprehensive next-generation firewall protection without compromising performance.
Along with superior power efficiency, SonicWall NSA series appliances lower the total cost of ownership by reducing complexity and the time necessary to configure, deploy and maintain security solutions. An intuitive GUI and powerful set-up wizards make it easy to quickly set up and fine-tune network policies, application rules, VPN connections and more.
Along with superior power efficiency, SonicWall NSA series appliances lower the total cost of ownership by reducing complexity and the time necessary to configure, deploy and maintain security solutions. An intuitive GUI and powerful set-up wizards make it easy to quickly set up and fine-tune network policies, application rules, VPN connections and more.
- Next-generation firewall security
- Multi-core architecture
- Deep packet inspection technology
- Lowered complexity and cost
