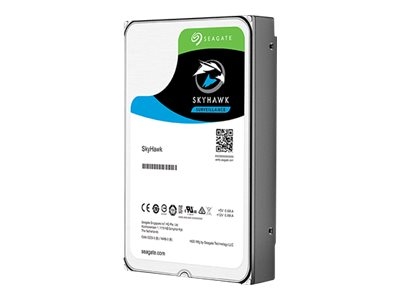

Seagate SkyHawk Surveillance HDD ST1000VX005 - hard drive - 1 TB - SATA 6Gb/s
SKU ST1000VX005
Product Description: | Seagate SkyHawk Surveillance HDD ST1000VX005 - hard drive - 1 TB - SATA 6Gb/s |
Type: | Hard drive - internal |
Capacity: | 1 TB |
Form Factor: | 3.5" |
Interface: | SATA 6Gb/s |
Data Transfer Rate: | 600 MBps |
Buffer Size: | 64 MB |
- Specifications
- Description
General | |
Device Type: | Hard drive - internal |
Capacity: | 1 TB |
Form Factor: | 3.5" |
Interface: | SATA 6Gb/s |
Buffer Size: | 64 MB |
Features: | 24x7 availability, ImagePerfect firmware |
Width: | 101.85 mm |
Depth: | 146.99 mm |
Height: | 20.2 mm |
Weight: | 415 g |
Performance | |
Drive Transfer Rate: | 600 MBps (external) |
Internal Data Rate: | 180 MBps |
Spindle Speed: | 5900 rpm |
Reliability | |
MTBF: | 1,000,000 hours |
24x7 Operation: | Yes |
Non-Recoverable Errors: | 1 per 10^14 |
Expansion & Connectivity | |
Interfaces: | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
Compatible Bay: | 3.5" |
Power | |
Power Consumption: | 1.8 Watt (start) ¦ 5.6 Watt (active) ¦ 4 Watt (idle) ¦ 0.5 Watt (sleep) ¦ 0.5 Watt (standby) |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 70 °C |
Smart. Safe. Secure. Seagate provides drives specifically for surveillance storage for years. SkyHawk is built to keep systems in the field longer and reduce the need for post-deployment support.
- ImagePerfect firmware supports 24/7 surveillance-optimized workloads tuned to record ~90% of the time and play back video footage the remaining 10%, and supports more cameras recording at higher resolutions than traditional drives
- Great workload allows SkyHawk to perform reliably in write-intensive surveillance systems - 3x the workload rating of a desktop-class drive
- Rotational vibration (RV) sensors allow drives to maintain performance in RAID and multi-drive systems, giving customers the flexibility to grow with the booming
- NVR market and scale their systems when more storage is needed
- ATA streaming support sustains recordings from up to 64 HD cameras for smooth, uninterrupted footage
- Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions
- Tarnish-resistant components help protect drive from environmental elements, increasing field reliability
