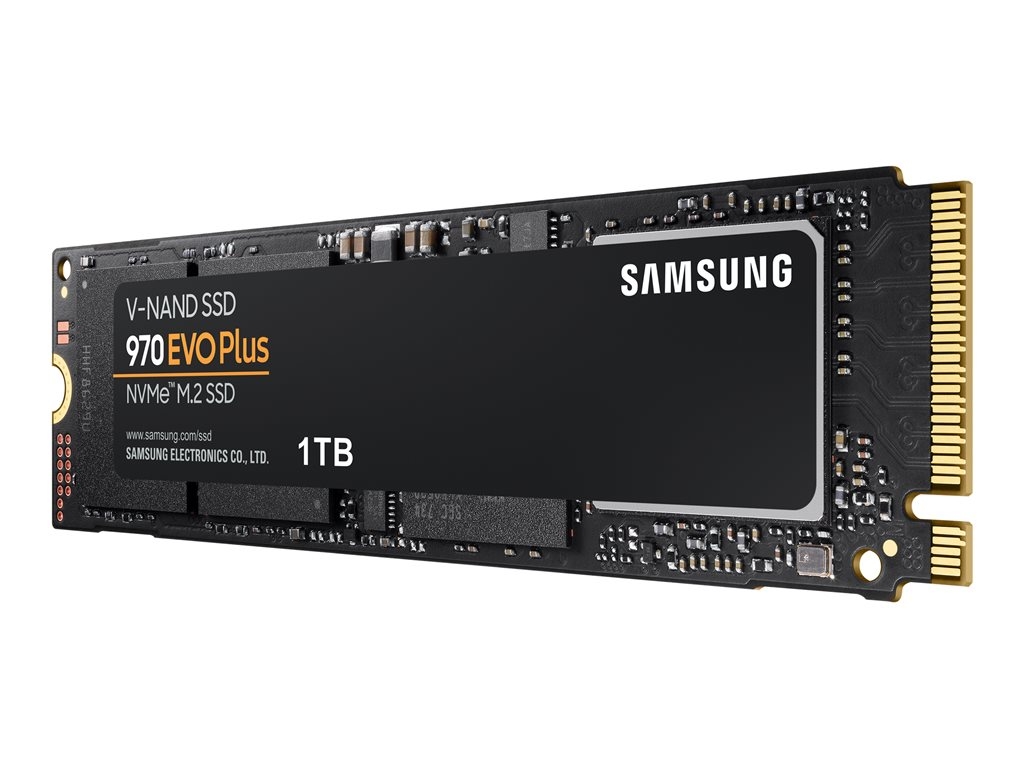

Samsung 970 EVO Plus MZ-V7S1T0BW - SSD - encrypted - 1 TB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) - buffer: 1 GB - 256-bit AES - TCG Opal Encryption

SKU MZ-V7S1T0BW
Product Description:Samsung 970 EVO Plus MZ-V7S1T0BW - SSD - 1 TB - PCIe 3.0 x4 (NVMe)
Type:Solid state drive - internal
Capacity:1 TB
Hardware Encryption:Yes
Encryption Algorithm:256-bit AES
NAND Flash Memory Type:Triple-level cell (TLC)
Form Factor:M.2 2280
In Stock(113)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Solid state drive - internal
Capacity:1 TB
Hardware Encryption:Yes
Encryption Algorithm:256-bit AES
NAND Flash Memory Type:Triple-level cell (TLC)
Form Factor:M.2 2280
Interface:PCIe 3.0 x4 (NVMe)
Buffer Size:1 GB
Features:TRIM support, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, TurboWrite Technology, V-NAND Technology, NVM Express (NVMe) 1.3, Samsung Phoenix Controller, S.M.A.R.T.
Width:22.15 mm
Depth:80.15 mm
Height:2.38 mm
Weight:8 g
Performance
SSD Endurance:600 TB
Internal Data Rate:3500 MBps (read) / 3300 MBps (write)
4KB Random Read:19000 IOPS
4KB Random Write:60000 IOPS
Maximum 4KB Random Write:550000 IOPS
Maximum 4KB Random Read:600000 IOPS
Reliability
MTBF:1,500,000 hours
Expansion & Connectivity
Interfaces:PCI Express 3.0 x4 (NVMe) - M.2 Card
Compatible Bay:M.2 2280
Power
Power Consumption:6 Watt (average) ¦ 9 Watt (maximum) ¦ 30 mW (idle max)
Miscellaneous
Compliant Standards:IEEE 1667
Manufacturer Warranty
Service & Support:Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:70 °C
Shock Tolerance (operating):1500 g @ 0.5 ms half-sine
vis mere
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing.
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 57% faster than the 970 EVO. The latest V-NAND technology - which brings greater NAND performance and higher power efficiency - along with optimized firmware, a Phoenix controller, and Intelligent TurboWrite boost speed.
  • Always evolving SSD
  • Level up performance
  • Design flexibility
  • Exceptional endurance
  • Unparalleled reliability
  • Samsung Magician




The technical details come from 3rd party. edgemo is not responsible for any errors.
