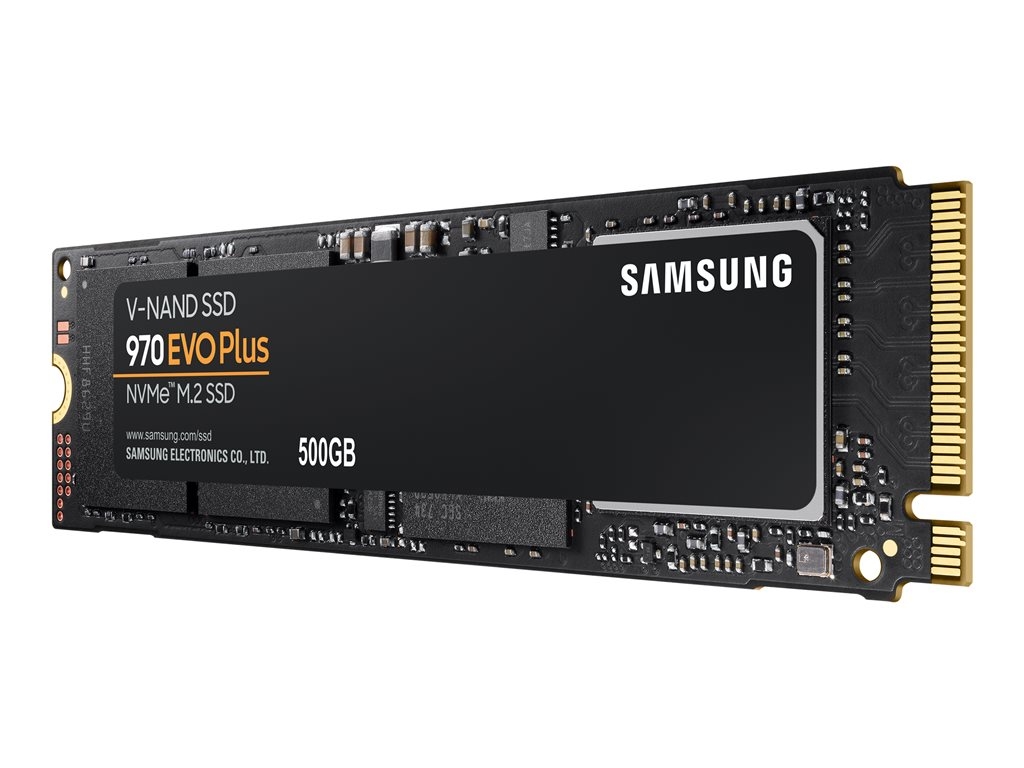

Samsung 970 EVO Plus MZ-V75S500BW - SSD - encrypted - 500 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) - buffer: 512 MB - 256-bit AES - TCG Opal Encryption

SKU MZ-V7S500BW

Product Description:	Samsung 970 EVO Plus MZ-V75S500BW - SSD - 500 GB - PCIe 3.0 x4 (NVMe)
Type:	Solid state drive - internal
Capacity:	500 GB
Hardware Encryption:	Yes
Encryption Algorithm:	256-bit AES
NAND Flash Memory Type:	Triple-level cell (TLC)
Form Factor:	M.2 2280

In Stock(12)

Specifications
Description
Accessories

General
Device Type:	Solid state drive - internal
Capacity:	500 GB
Hardware Encryption:	Yes
Encryption Algorithm:	256-bit AES
NAND Flash Memory Type:	Triple-level cell (TLC)
Form Factor:	M.2 2280
Interface:	PCIe 3.0 x4 (NVMe)
Buffer Size:	512 MB
Features:	TRIM support, sleep mode, Auto Garbage Collection Algorithm, V-NAND Technology, NVM Express (NVMe) 1.3, Samsung Phoenix Controller, S.M.A.R.T.
Width:	22.15 mm
Depth:	80.15 mm
Height:	2.38 mm
Weight:	8 g

Performance
SSD Endurance:	300 TB
Internal Data Rate:	3500 MBps (read) / 3200 MBps (write)
4KB Random Read:	19000 IOPS
4KB Random Write:	60000 IOPS
Maximum 4KB Random Write:	550000 IOPS
Maximum 4KB Random Read:	480000 IOPS

Reliability
MTBF:	1,500,000 hours

Expansion & Connectivity
Interfaces:	PCI Express 3.0 x4 (NVMe) - M.2 Card
Compatible Bay:	M.2 2280

Power
Power Consumption:	5.8 Watt (average) ¦ 9 Watt (maximum) ¦ 30 mW (idle max)

Miscellaneous
Compliant Standards:	IEEE 1667

Manufacturer Warranty
Service & Support:	Limited warranty - 5 years

Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	70 °C
Shock Tolerance (operating):	1500 g @ 0.5 ms half-sine

vis mere

The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by Samsung's V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for superb computing.

V-NAND technology
Dynamic Thermal Guard
Intelligent TurboWrite
