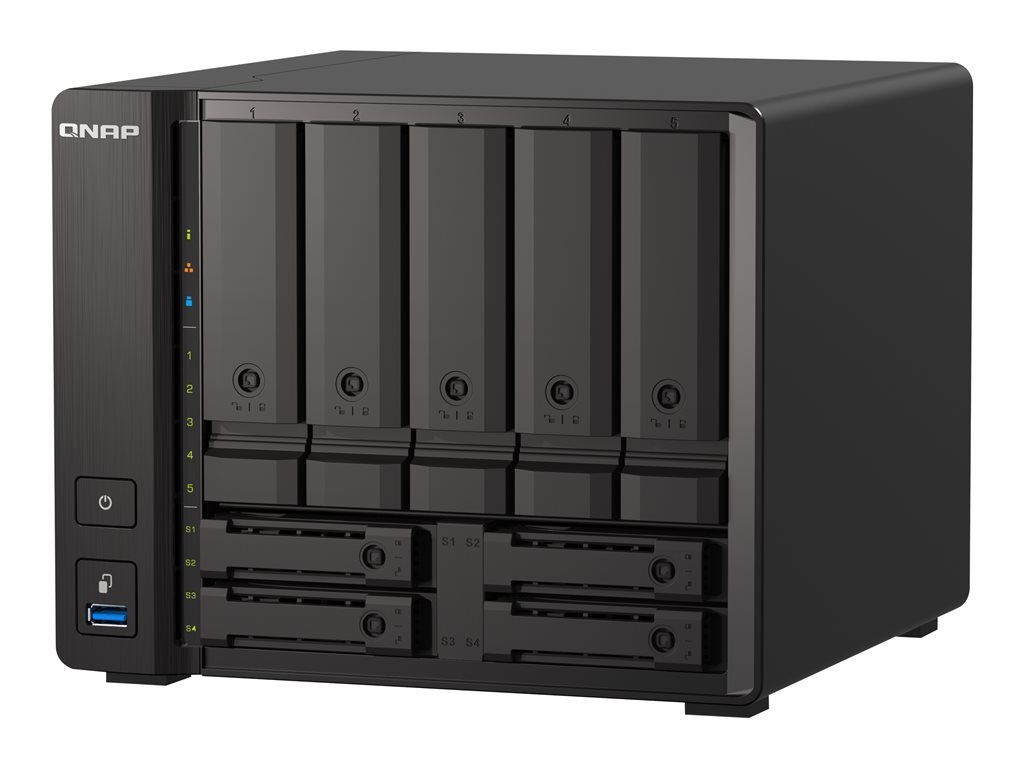

QNAP TS-H973AX-32G - NAS server

SKU TS-H973AX-32G
Product Description:QNAP TS-H973AX-32G - NAS server
Device Type:NAS server
Host Connectivity:2.5 Gigabit Ethernet / 10 Gigabit Ethernet
Installed Devices / Modules Qty:0 (installed) / 9 (max)
Dimensions (WxDxH):22.46 cm x 22.41 cm x 18.265 cm
Weight:3.52 kg ()
Processor:1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core)
In Stock(1)
  • Specifications
  • Description
General
Device Type:NAS server
Host Connectivity:2.5 Gigabit Ethernet / 10 Gigabit Ethernet
Total Storage Capacity:0 GB
Installed Devices / Modules Qty:0 (installed) / 9 (max)
Width:22.46 cm
Depth:22.41 cm
Height:18.265 cm
Weight:3.52 kg ()
Processor / Memory
Processors Installed:1 x AMD Ryzen Embedded V1500B 2.2 GHz
Number of Cores:Quad-Core
Max Supported Qty:1
RAM:32 GB (installed) / 32 GB (supported) - DDR4
Flash Memory Installed:5 GB
Storage Controller
Type:RAID
Interface Type:SATA 6Gb/s
RAID Level:RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP
Networking
Data Link Protocol:10GbE, 2.5GbE
Network / Transport Protocol:HTTP, HTTPs, DHCP, SMSC, DDNS, FTP, SFTP, PPTP, IPSec, L2TP
Remote Management Protocol:SSH, Telnet, HTTP, HTTPS, SMTP, IPMI 1.0, SNMP 2, SNMP 3, TFTP
Network Services Compatibility:DDNS, Microsoft CIFS, Apple File Protocol (AFP), Server Message Block (SMB), Web-based Distributed Authoring and Versioning (WebDAV), Microsoft Active Directory (AD), FTP
Features:DHCP client, DHCP server, IPv4 support, IPv6 support, Jumbo Frames support, link aggregation trunking, load balancing, port trunking, NAT support, Spanning Tree Protocol (STP) support, wake on LAN (WOL), FXP support, DLNA support, download client, IFTTT agent
Encryption Algorithm:SSL, 128-bit AES, 256-bit AES, FIPS 140-2
Compliant Standards:UPnP
Expansion / Connectivity
Expansion Bays:5 (total) / 5 (free) x hot-swap - 3.5" ¦ 4 (total) / 4 (free) x hot-swap - 2.5"
Interfaces:1 x Ethernet 10Gb ¦ 3 x USB 3.2 Gen 2 - Type A ¦ 1 x USB 3.2 Gen 2 - Type C ¦ 2 x 2.5 Gigabit Ethernet
Miscellaneous
Cables Included:1 x 10GBase-T cable
Features:Security lock slot (cable lock sold separately), built-in cooling fan
Security Slot Type:Kensington security slot
Included Accessories:2 x hard drive security key, 24 x flat head screws (for 3.5" HDD), 32 x flat head screws (for 2.5" HDD), power cable
Power
Power Device:External power adapter
Voltage Required:AC 120/230 V
Power Provided:120 Watt
Software / System Requirements
Storage Operating System:QNAP QuTS hero 4.5.0
OS Required:Apple OS X 10.10 Yosemite or later, Ubuntu 14.04, CentOS 7.0, IBM AIX 7, Oracle Solaris 10 or later, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:5 - 95% (non-condensing)
Sound Emission:22.9 dBA
vis mere
Featuring an AMD Ryzen V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots, and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.
  • Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6Gb/s SSDs in the dedicated SSD slots for cache acceleration and improved random I/O
  • One 10GBASE-T Multi-Gig and two 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer
  • Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google Workspace, Microsoft 365, VMware and Hyper-V)
  • Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX
  • Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud
  • Flexibly scale your total storage capacity to match your business growth by connecting USB expansion enclosures




The technical details come from 3rd party. edgemo is not responsible for any errors.
