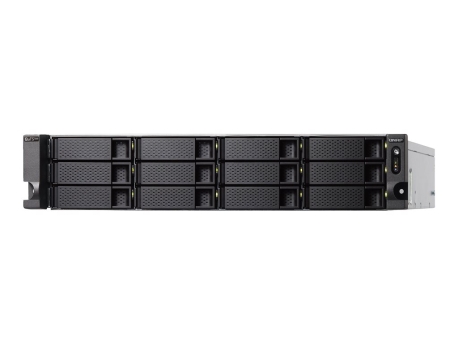

QNAP TS-h1277XU-RP - NAS server

SKU TS-H1277XU-RP-3700X-128G
Product Description:QNAP TS-h1277XU-RP - NAS server
Device Type:NAS server
Host Connectivity:Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+
Enclosure Type:Rack-mountable - 2U
Installed Devices / Modules Qty:0 (installed) / 12 (max)
Dimensions (WxDxH):48.2 cm x 56.2 cm x 8.83 cm
Weight:13.73 kg ()
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:NAS server
Host Connectivity:Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+
Enclosure Type:Rack-mountable - 2U
Total Storage Capacity:0 GB
Installed Devices / Modules Qty:0 (installed) / 12 (max)
Width:48.2 cm
Depth:56.2 cm
Height:8.83 cm
Weight:13.73 kg ()
Processor / Memory
Processors Installed:1 x AMD Ryzen 7 3700X 3.6 GHz
Number of Cores:8-core
Max Supported Qty:1
Max Turbo Speed:4.4 GHz
RAM:128 GB (installed) / 128 GB (supported) - DDR4
Flash Memory Installed:5 GB
Storage Controller
Type:RAID
Interface Type:SATA 6Gb/s
RAID Level:RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 60, RAID 10 hot spare, RAID TP
Networking
Data Link Protocol:1GbE, 10GbE, 10 GigE optical
Remote Management Protocol:SNMP 2, SNMP 3
Network Services Compatibility:Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP)
Features:ALERT notification, LDAP support, VLAN support, wake on LAN (WOL), Syslog support, Access Control List (ACL) support, iTunes server, Jumbo Frames support, DLNA Media Server, Apple Time Machine compatible, VPN Server, Apple AirPlay, anti-virus protection, Link Aggregation, Google Drive support, Chromecast support, port trunking, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, Qsirch, deduplication (volume and LUN), snapshot (folder and LUN), compression (volume and LUN)
Encryption Algorithm:AES-NI
Compliant Standards:UPnP
Expansion / Connectivity
Expansion Bays:12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots:2 (total) / 1 (free) x PCI Express 3.0 x8 ¦ 2 (total) / 2 (free) x PCI Express 3.0 x4
Interfaces:2 x Ethernet 1000Base-T - RJ-45 ¦ 1 x USB 3.1 Gen 2 - Type A ¦ 4 x USB 3.0 - Type A ¦ 1 x USB 3.1 Gen 2 - Type C ¦ 2 x Ethernet 10Gb - SFP+ ¦ 2 x Ethernet 10Base-T - RJ-45
Miscellaneous
Cables Included:2 x network cable ¦ 2 x 10GBase-T cable
Features:Audible alarm, built-in 2 cooling fans, dual boot
Included Accessories:48 x flat head screws (for 3.5" HDD), 36 x flat head screws (for 2.5" HDD), 2 x power cables
Power
Power Device:Internal power supply
Installed Qty:2
Max Supported Qty:2
Power Redundancy:Yes
Power Redundancy Scheme:1+1
Voltage Required:AC 120/230 V
Power Consumption Operational:106.66 Watt
Power Provided:300 Watt
Software / System Requirements
Storage Operating System:QNAP QTS hero
Dimensions & Weight (Shipping)
Shipping Weight:16 kg
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:5 - 95% (non-condensing)
Sound Emission:37.2 dBA
vis mere
The TS-h1277XU-RP supports near-limitless snapshots, block-level inline data deduplication, and inline data compression. The TS-h1277XU-RP helps your business achieve reliable service-level agreement performance, whether in mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.
  • Superior hardware engineering with high I/O expandability
  • Data reduction improves storage efficiency and performance
  • Prevents data corruption to assure reliability




The technical details come from 3rd party. edgemo is not responsible for any errors.
