Printers & POSQNAP TS-873A - NAS server
SKU TS-873A-8G

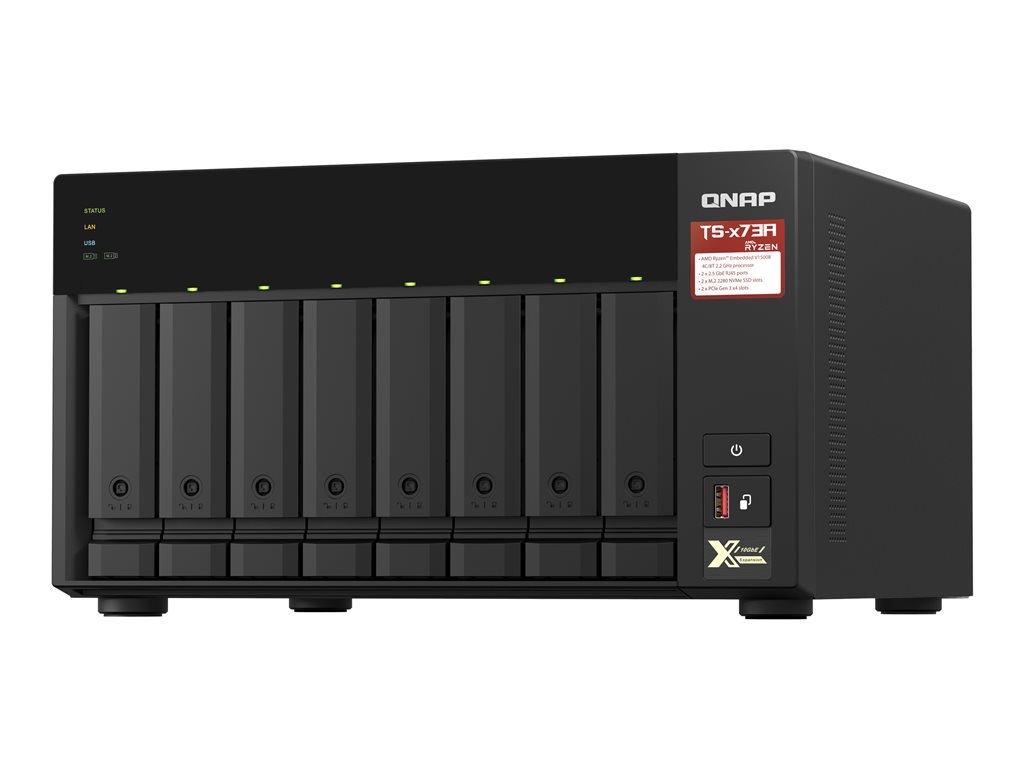

| Product Description: | QNAP TS-873A - NAS server |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Installed Devices / Modules Qty: | 0 (installed) / 8 (max) |
| Dimensions (WxDxH): | 32.93 cm x 28.08 cm x 18.82 cm |
| Weight: | 6.76 kg () |
| Processor: | 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core) |
- Specifications
- Description
| General | |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Total Storage Capacity: | 0 GB |
| Installed Devices / Modules Qty: | 0 (installed) / 8 (max) |
| Width: | 32.93 cm |
| Depth: | 28.08 cm |
| Height: | 18.82 cm |
| Weight: | 6.76 kg () |
| Built-in Devices: | Led panel |
| Processor / Memory | |
| Processors Installed: | 1 x AMD Ryzen Embedded V1500B 2.2 GHz |
| Number of Cores: | Quad-Core |
| Max Supported Qty: | 1 |
| RAM: | 8 GB (installed) / 64 GB (supported) - DDR4 |
| Flash Memory Installed: | 5 GB |
| Storage Controller | |
| Type: | RAID |
| Interface Type: | SATA 6Gb/s |
| Networking | |
| Data Link Protocol: | 100Mb LAN, 1GbE, 2.5GbE |
| Features: | AES encryption, Jumbo Frames support, wake on LAN (WOL), hardware encryption, USB One Touch Copy, reset button |
| Encryption Algorithm: | AES-NI |
| Expansion / Connectivity | |
| Expansion Bays: | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots: | 2 (total) / 1 (free) x SO-DIMM 260-pin ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 2 (total) / 2 (free) x PCI Express 3.0 x4 |
| Interfaces: | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 3 x USB 3.2 Gen 2 - Type A ¦ 1 x USB 3.2 Gen 1 - Type C |
| Miscellaneous | |
| Cables Included: | 1 x network cable |
| Features: | Security lock slot (cable lock sold separately), dual boot, alarm buzzer, built-in 3 cooling fans |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | ISO 7779 |
| Included Accessories: | 24 x flat head screws (for 2.5" HDD), 24 x flat head screws (for 3.5" HDD), 2 x hard drive security key, 2 x M.2 SSD heatsink, power cable |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | AC 100 - 240 V |
| Power Consumption Operational: | 54.067 Watt |
| Power Consumption Stand by: | 25.668 Watt |
| Power Provided: | 250 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 8.41 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Sound Emission: | 23 dBA |
Featuring an AMD Ryzen V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-873A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-873A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
- Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds
- Up to 5 Gbps transfer speeds can be achieved by using port trunking
- Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fiber Channel
- Supports entry-level NVIDIA graphics cards for video processing or GPU-passthrough to VMs
- Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization
- Host containerized applications and virtual machines with various operating systems
- Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability
The technical details come from 3rd party. edgemo is not responsible for any errors.
