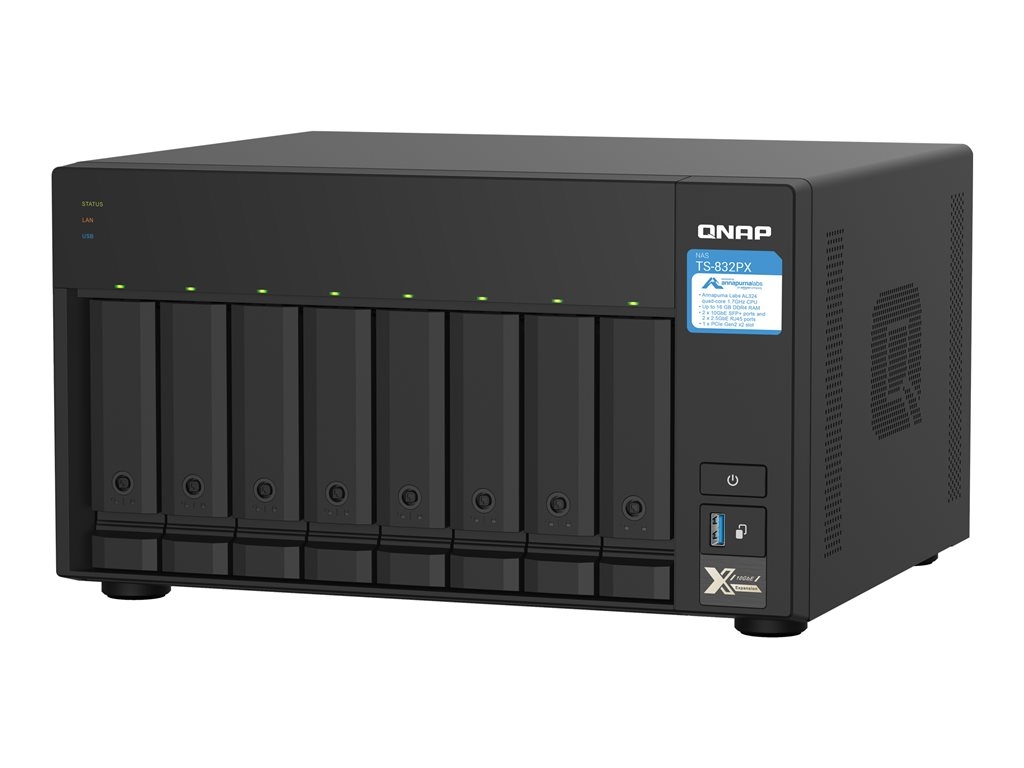

Printers & POSQNAP TS-832PX-4G - NAS server
SKU TS-832PX-4G
| Product Description: | QNAP TS-832PX-4G - NAS server |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty: | 0 (installed) / 8 (max) |
| Dimensions (WxDxH): | 32.93 cm x 28.08 cm x 18.82 cm |
| Weight: | 6.38 kg () |
| Processor: | 1 x Annapurna Labs Alpine AL-324 1.7 GHz (Quad-Core) |
- Specifications
- Description
| General | |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Total Storage Capacity: | 0 GB |
| Installed Devices / Modules Qty: | 0 (installed) / 8 (max) |
| Width: | 32.93 cm |
| Depth: | 28.08 cm |
| Height: | 18.82 cm |
| Weight: | 6.38 kg () |
| Built-in Devices: | Led panel |
| Processor / Memory | |
| Processors Installed: | 1 x Annapurna Labs Alpine AL-324 1.7 GHz |
| Number of Cores: | Quad-Core |
| Max Supported Qty: | 1 |
| RAM: | 4 GB (installed) / 16 GB (supported) - DDR4 |
| Flash Memory Installed: | 512 MB |
| Storage Controller | |
| Type: | RAID |
| Interface Type: | SATA 6Gb/s |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD |
| Networking | |
| Data Link Protocol: | 100Mb LAN, 1GbE, 2.5GbE, 10GbE |
| Network / Transport Protocol: | TCP/IP, IPv4, IPv6, DHCP, DDNS, HTTP, HTTPs, FTP, iSCSI, SMTP, SMB, NFS, PPTP, L2TP, IPSec, SFTP, RTSP |
| Remote Management Protocol: | HTTP, HTTPS, SSH, Telnet, SMTP, SNMP 2, SNMP 3, TFTP, SFTP |
| Network Services Compatibility: | DHCP, DDNS, HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), FTP, Server Message Block (SMB), Microsoft CIFS, Apple File Protocol (AFP), Microsoft Active Directory (AD), Network File System v3 (NFS v3), Network File System v4 (NFS v4), File Level Security (ACLs), FTPS, SFTP |
| Features: | Hardware encryption, Jumbo Frames support, reset button, port trunking, Link Aggregation, load balancing, failover protection, DHCP client, DHCP server, Wi-Fi USB dongle support, Spanning Tree Protocol (STP) support, NAT support, static routing, web server, snapshot (folder and LUN), iSCSI LUN clone/snapshot, VJBOD Cloud, SMS alert, wake on LAN (WOL), LDAP support, myQNAPcloud, Qsync, backup server, file sharing, Access Control List (ACL) support, manageable, firmware upgradable, FTP server, FXP support, Google Drive support, Dropbox support, Microsoft OneDrive support, HiDrive support, Amazon Cloud Drive support, Yandex Disk support, Qfiling, hybrid backup sync, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, OpenStack Swift-compatible, Alibaba Cloud OSS support, Backblaze B2 support, hubiC support, RTRR server, RTRR client, IPv4 and IPv6 dual stack, Rsync compatible, scheduler, Apple Time Machine compatible, QuMagie, Photo album server, Qsirch, surveillance station, VPN Server, VPN client, OpenVPN client, OpenVPN server, PPTP server, DLNA Media Server, Q'center (NAS CMS), Qfinder Pro, Chromecast support, download client, bandwidth control, Qcontactz, IFTTT agent, Qmiix agent, cloud backup, anti-malware protection, BitTorrent Client, UPnP Media Server, Syslog support, E-mail alert, event log, push notification, Network Access Protection (NAP), ONVIF support |
| Encryption Algorithm: | TLS 1.0, TLS 1.1, TLS 1.2, FIPS 140-2, 256-bit AES, SSL |
| Compliant Standards: | UPnP |
| Security DVR | |
| IP Cameras Supported: | 16 |
| Expansion / Connectivity | |
| Expansion Bays: | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots: | 1 (total) / 1 (free) x PCI Express 2.0 x2 ¦ 1 (total) / 0 (free) x DIMM 288-pin |
| Interfaces: | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 3 x USB 3.2 Gen 1 - Type A ¦ 2 x Ethernet 10Gb - SFP+ |
| Miscellaneous | |
| Cables Included: | 1 x network cable |
| Features: | Dual boot, built-in 2 cooling fans, audible alarm, Online RAID Level Migration (RLM), S.M.A.R.T. support, scheduled power on/off, wake on LAN, security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | FIPS 140-2 |
| Included Accessories: | 24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD), 2 x hard drive security key, power cable |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | AC 120/230 V |
| Power Consumption Operational: | 50.858 Watt |
| Power Consumption Stand by: | 27.949 Watt |
| Power Provided: | 250 Watt |
| Software / System Requirements | |
| Storage Operating System: | QNAP QTS 4.4.2 |
| OS Required: | Apple MacOS X 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, SunSoft Solaris 10 or higher, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 8.61 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Sound Emission: | 19.6 dBA |
The quad-core 1.7GHz TS-832PX features eight 3.5-inch SATA 6GB/s drive bays, providing huge storage potential for a wide range of applications and everyday usage. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-832PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing. Various PCIe cards are also supported, including QM2 cards that provide M.2 SATA/NVMe SSD caching and Qtier auto-tiering storage to boost NAS performance.
- Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing
- PCIe expansion allows for installing a QM2 card to add M.2 SSDs for caching, a 10/5GbE network card, or a wireless network expansion card
- Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks
- Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud
- Qtier auto-tiering technology and SSD caching enable constant storage optimization
The technical details come from 3rd party. edgemo is not responsible for any errors.
