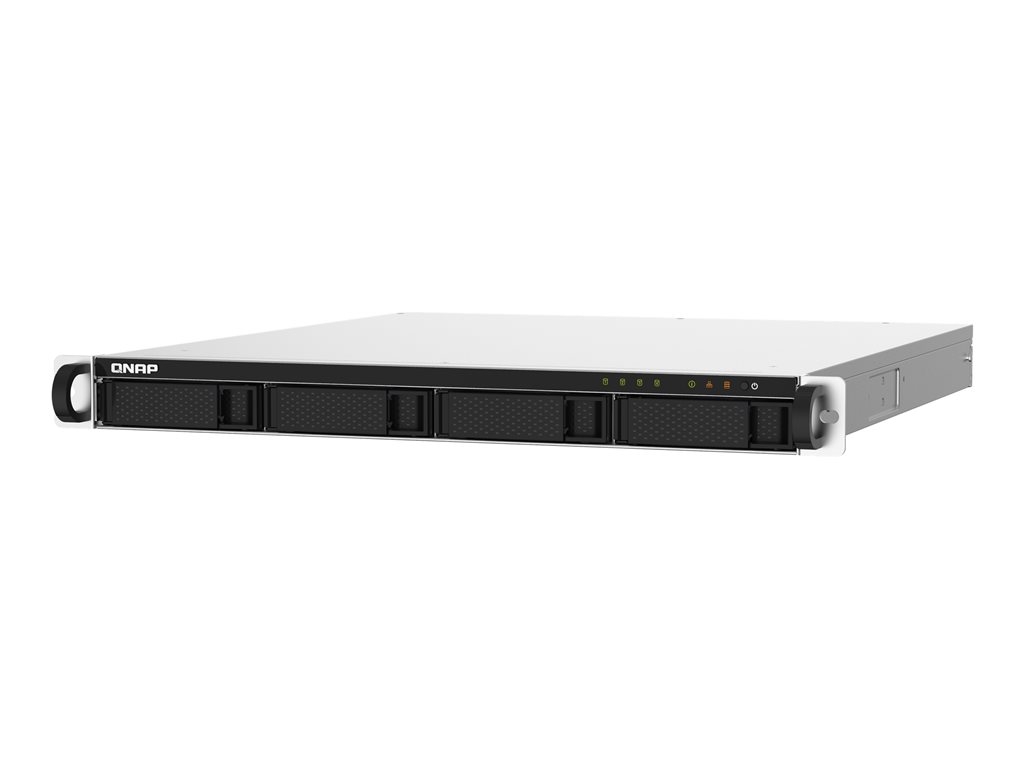

Printers & POSQNAP TS-432PXU-RP - NAS server
SKU TS-432PXU-RP-2G
| Product Description: | QNAP TS-432PXU-RP - NAS server |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type: | Rack-mountable - 1U |
| Installed Devices / Modules Qty: | 0 (installed) / 4 (max) |
| Dimensions (WxDxH): | 43.9 cm x 49.9 cm x 4.4 cm |
| Weight: | 8.1 kg () |
- Specifications
- Description
| General | |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type: | Rack-mountable - 1U |
| Total Storage Capacity: | 0 GB |
| Installed Devices / Modules Qty: | 0 (installed) / 4 (max) |
| Width: | 43.9 cm |
| Depth: | 49.9 cm |
| Height: | 4.4 cm |
| Weight: | 8.1 kg () |
| Built-in Devices: | Led panel |
| Processor / Memory | |
| Processors Installed: | 1 x Annapurna Labs Alpine AL-324 1.7 GHz |
| Number of Cores: | Quad-Core |
| Max Supported Qty: | 1 |
| RAM: | 2 GB (installed) / 16 GB (supported) - DDR4 |
| Flash Memory Installed: | 512 MB |
| Storage Controller | |
| Type: | RAID |
| Interface Type: | SATA 6Gb/s |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Networking | |
| Data Link Protocol: | 100Mb LAN, 1GbE, 2.5GbE, 10GbE |
| Network / Transport Protocol: | TCP/IP, IPv4, IPv6, DHCP, DDNS, HTTP, HTTPs, FTP, iSCSI, SMTP, SMB, NFS, PPTP, L2TP, IPSec, SFTP, RTSP |
| Remote Management Protocol: | HTTP, HTTPS, SSH, Telnet, SMTP, SNMP 2, SNMP 3, TFTP, SFTP |
| Network Services Compatibility: | DHCP, DDNS, HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), FTP, Server Message Block (SMB), Microsoft CIFS, Apple File Protocol (AFP), Microsoft Active Directory (AD), Network File System v3 (NFS v3), Network File System v4 (NFS v4), File Level Security (ACLs), FTPS, SFTP |
| Features: | Hardware encryption, Jumbo Frames support, reset button, port trunking, Link Aggregation, load balancing, failover protection, DHCP client, DHCP server, Wi-Fi USB dongle support, Spanning Tree Protocol (STP) support, NAT support, static routing, web server, snapshot (folder and LUN), iSCSI LUN clone/snapshot, VJBOD Cloud, SMS alert, wake on LAN (WOL), LDAP support, myQNAPcloud, Qsync, backup server, file sharing, Access Control List (ACL) support, manageable, firmware upgradable, FTP server, FXP support, Google Drive support, Dropbox support, Microsoft OneDrive support, HiDrive support, Amazon Cloud Drive support, Yandex Disk support, Qfiling, hybrid backup sync, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, OpenStack Swift-compatible, Alibaba Cloud OSS support, Backblaze B2 support, hubiC support, RTRR server, RTRR client, IPv4 and IPv6 dual stack, Rsync compatible, scheduler, Apple Time Machine compatible, QuMagie, Photo album server, Qsirch, surveillance station, VPN Server, VPN client, OpenVPN client, OpenVPN server, PPTP server, DLNA Media Server, Q'center (NAS CMS), Qfinder Pro, Chromecast support, download client, bandwidth control, Qcontactz, IFTTT agent, Qmiix agent, cloud backup, anti-malware protection, BitTorrent Client, UPnP Media Server, Syslog support, E-mail alert, event log, push notification, Network Access Protection (NAP), ONVIF support |
| Encryption Algorithm: | TLS 1.0, TLS 1.1, TLS 1.2, FIPS 140-2, 256-bit AES, SSL |
| Compliant Standards: | UPnP |
| Security DVR | |
| IP Cameras Supported: | 16 |
| Expansion / Connectivity | |
| Expansion Bays: | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots: | 1 (total) / 1 (free) x PCI Express 2.0 x2 ¦ 1 (total) / 0 (free) x DIMM 288-pin |
| Interfaces: | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 4 x USB 3.2 Gen 1 - Type A ¦ 2 x Ethernet 10Gb - SFP+ |
| Miscellaneous | |
| Cables Included: | 1 x network cable |
| Features: | Dual boot, built-in 2 cooling fans, audible alarm, Online RAID Level Migration (RLM), S.M.A.R.T. support, scheduled power on/off, wake on LAN |
| Compliant Standards: | FIPS 140-2 |
| Included Accessories: | 12 x flat head screws (for 2.5" HDD), 16 x flat head screws (for 3.5" HDD), 2 x power cables |
| Power | |
| Power Device: | Internal power supply |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Voltage Required: | AC 120/230 V |
| Power Provided: | 250 Watt |
| Software / System Requirements | |
| Storage Operating System: | QNAP QTS 4.4.3 |
| OS Required: | Apple MacOS X 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, SunSoft Solaris 10 or higher, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 11.12 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Sound Emission: | 39 dBA |
With 10GbE SFP+ and 2.5GbE network ports, the TS-432PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-432PXU-RP supports file backup and synchronization, secure snapshot protection, and Google G Suite and Microsoft 365 enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a new hybrid cloud storage solution has never been easier. The TS-432PXU-RP also features a redundant power supply to ensure uninterrupted operation of mission-critical applications.
- Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing
- HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning
- Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google G Suite and Microsoft 365
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
- Expand the application potential of the TS-432PXU-RP by installing a compatible PCIe card
- Increase the storage capacity of the TS-432PXU-RP with QNAP TR RAID expansion enclosures or TL JBOD
The technical details come from 3rd party. edgemo is not responsible for any errors.
