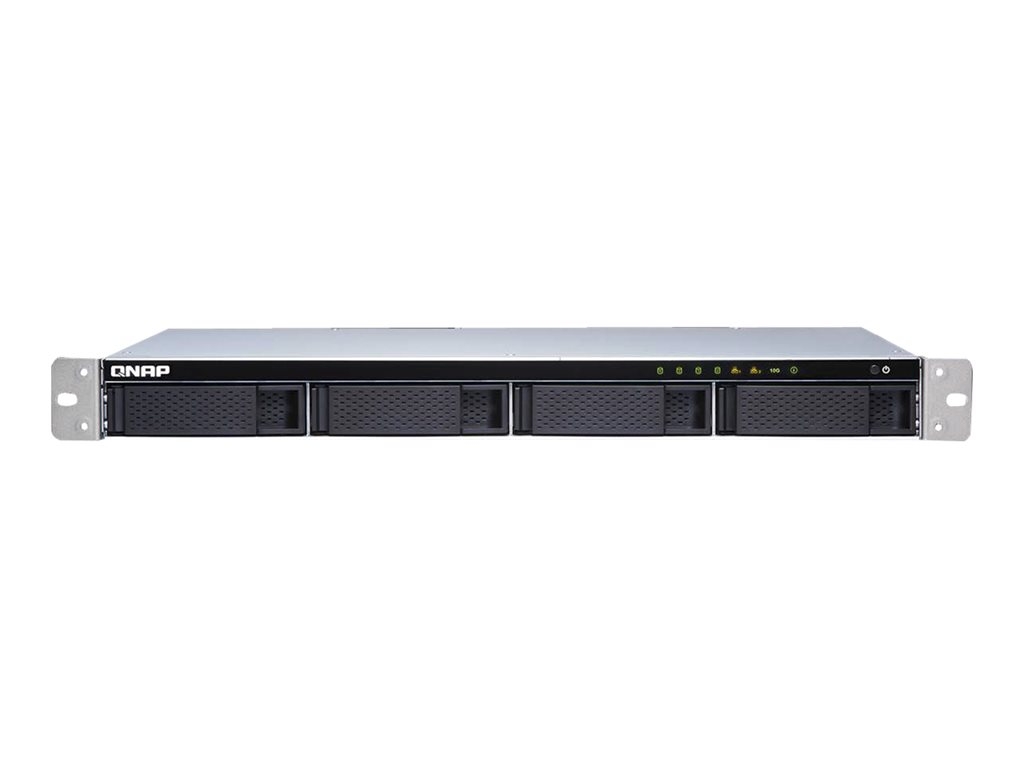

Printers & POSQNAP TS-431XeU - NAS server
SKU TS-431XEU-8G
| Product Description: | QNAP TS-431XeU - NAS server |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type: | Rack-mountable - 1U |
| Installed Devices / Modules Qty: | 4 (max) |
| Dimensions (WxDxH): | 43.9 cm x 29.1 cm x 4.4 cm |
| Weight: | 4.15 kg () |
- Specifications
- Description
| General | |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type: | Rack-mountable - 1U |
| Total Storage Capacity: | 0 GB |
| Installed Devices / Modules Qty: | 4 (max) |
| Width: | 43.9 cm |
| Depth: | 29.1 cm |
| Height: | 4.4 cm |
| Weight: | 4.15 kg () |
| Built-in Devices: | Led panel |
| Processor / Memory | |
| Processors Installed: | 1 x Annapurna Labs Alpine AL-314 1.7 GHz |
| Number of Cores: | Quad-Core |
| Max Supported Qty: | 1 |
| RAM: | 8 GB (installed) / 16 GB (supported) - DDR3 |
| Storage Controller | |
| Type: | RAID |
| Interface Type: | SATA 6Gb/s |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare |
| Networking | |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Encryption Algorithm: | SSL, TLS, 256-bit AES |
| Compliant Standards: | UPnP |
| Expansion / Connectivity | |
| Expansion Bays: | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots: | 1 (total) / 0 (free) x SO-DIMM 204-pin |
| Interfaces: | 2 x Ethernet 1000Base-T - RJ-45 ¦ 4 x USB 3.0 - Type A ¦ 1 x Ethernet 10Gb - SFP+ |
| Miscellaneous | |
| Cables Included: | 1 x network cable |
| Features: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Included Accessories: | Flat head screws (for 2.5" HDD), flat head screws (for 3.5" HDD), 2 x hangers, 2 x holders, power cable |
| Power | |
| Power Device: | Internal power supply |
| Installed Qty: | 1 |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 100 Watt |
| Software / System Requirements | |
| OS Required: | UNIX, Linux, Apple MacOS X, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10 |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
The high-performance TS-431XeU features a 10GbE SFP+ port to fully support 10GbE high-speed networks at a budget price with maximized ROI. The short depth design is perfectly suitable for installing the TS-431XeU in a compact rack, or places with a lot of cabling. The TS-431XeU provides versatile all-in-one functionality and unique features including VJBOD - an economical way to utilize unused NAS storage space for expanding the storage capacity of other NAS that allows users to rapidly develop and deploy Internet of Things (IoT) apps. The TS-431XeU is a cost-effective storage solution designed for growing businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.
- Smaller footprint for bigger opportunities
- SSD cache acceleration
- High reliability design ensuring business continuity
- Easily expand storage capacity
The technical details come from 3rd party. edgemo is not responsible for any errors.
