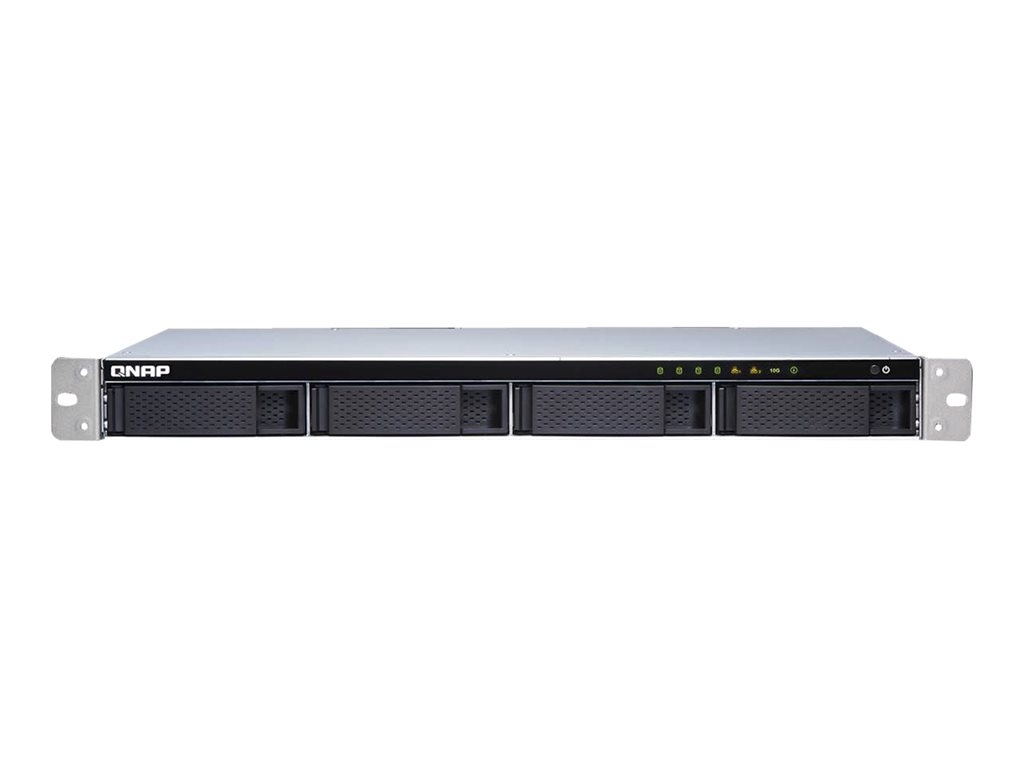

QNAP TS-431XeU - NAS server

SKU TS-431XEU-2G
Product Description:QNAP TS-431XeU - NAS server
Device Type:NAS server
Host Connectivity:Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type:Rack-mountable - 1U
Installed Devices / Modules Qty:4 (max)
Dimensions (WxDxH):43.9 cm x 29.1 cm x 4.4 cm
Weight:4.15 kg ()
In Stock(2)
  • Specifications
  • Description
General
Device Type:NAS server
Host Connectivity:Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type:Rack-mountable - 1U
Total Storage Capacity:0 GB
Installed Devices / Modules Qty:4 (max)
Width:43.9 cm
Depth:29.1 cm
Height:4.4 cm
Weight:4.15 kg ()
Built-in Devices:Led panel
Processor / Memory
Processors Installed:1 x Annapurna Labs Alpine AL-314 1.7 GHz
Number of Cores:Quad-Core
Max Supported Qty:1
RAM:2 GB (installed) / 16 GB (supported) - DDR3
Storage Controller
Type:RAID
Interface Type:SATA 6Gb/s
RAID Level:RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare
Networking
Data Link Protocol:10Mb LAN, 100Mb LAN, 1GbE, 10GbE
Encryption Algorithm:SSL, TLS, 256-bit AES
Compliant Standards:UPnP
Expansion / Connectivity
Expansion Bays:4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots:1 (total) / 0 (free) x SO-DIMM 204-pin
Interfaces:2 x Ethernet 1000Base-T - RJ-45 ¦ 4 x USB 3.0 - Type A ¦ 1 x Ethernet 10Gb - SFP+
Miscellaneous
Cables Included:1 x network cable
Features:Security lock slot (cable lock sold separately)
Security Slot Type:Kensington security slot
Included Accessories:2 x hangers, 2 x holders, flat head screws (for 2.5" HDD), flat head screws (for 3.5" HDD), power cable
Power
Power Device:Internal power supply
Installed Qty:1
Voltage Required:AC 120/230 V (50/60 Hz)
Power Provided:100 Watt
Software / System Requirements
OS Required:UNIX, Linux, Apple MacOS X, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:5 - 95% (non-condensing)
vis mere
The high-performance TS-431XeU features a 10GbE SFP+ port to fully support 10GbE high-speed networks at a budget price with maximized ROI. The short depth design is perfectly suitable for installing the TS-431XeU in a compact rack, or places with a lot of cabling. The TS-431XeU provides versatile all-in-one functionality and unique features including VJBOD - an economical way to utilize unused NAS storage space for expanding the storage capacity of other NAS that allows users to rapidly develop and deploy Internet of Things (IoT) apps. The TS-431XeU is a cost-effective storage solution designed for growing businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.
  • Smaller footprint for bigger opportunities
  • SSD cache acceleration
  • High reliability design ensuring business continuity
  • Easily expand storage capacity




The technical details come from 3rd party. edgemo is not responsible for any errors.
