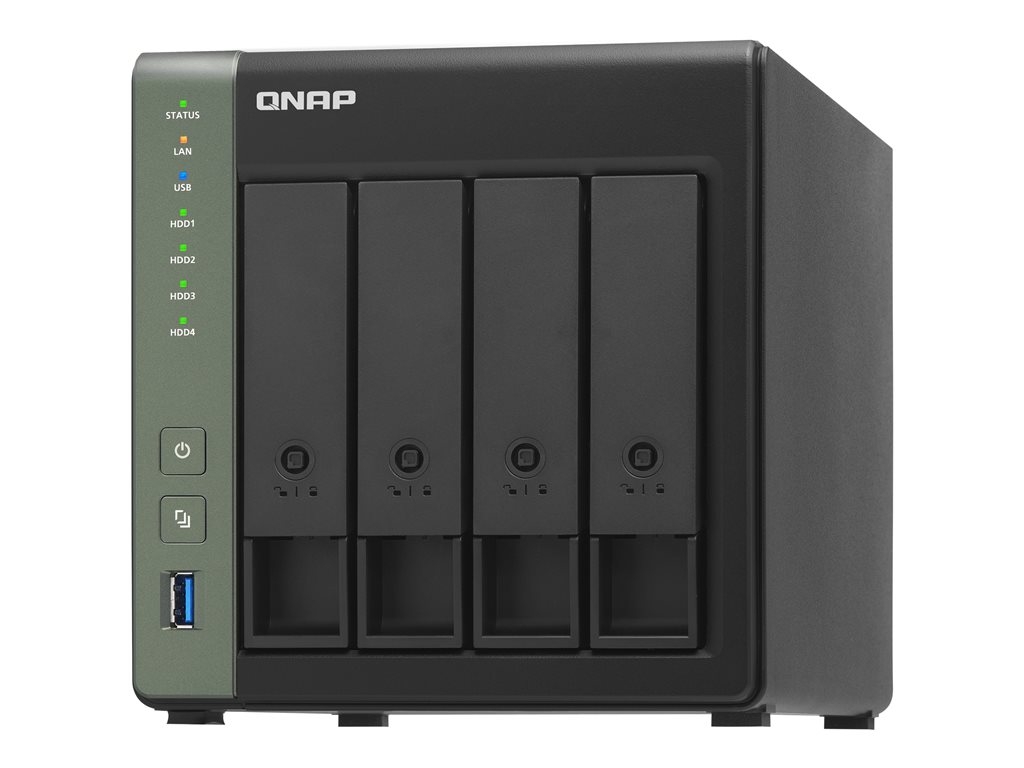

Printers & POSQNAP TS-431X3 - NAS server
SKU TS-431X3-4G
| Product Description: | QNAP TS-431X3 - NAS server |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty: | 0 (installed) / 4 (max) |
| Dimensions (WxDxH): | 16 cm x 21.9 cm x 16.9 cm |
| Weight: | 2.01 kg () |
| Processor: | 1 x Annapurna Labs Alpine AL-314 1.7 GHz (Quad-Core) |
- Specifications
- Description
| General | |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Total Storage Capacity: | 0 GB |
| Installed Devices / Modules Qty: | 0 (installed) / 4 (max) |
| Width: | 16 cm |
| Depth: | 21.9 cm |
| Height: | 16.9 cm |
| Weight: | 2.01 kg () |
| Built-in Devices: | Led panel |
| Processor / Memory | |
| Processors Installed: | 1 x Annapurna Labs Alpine AL-314 1.7 GHz |
| Number of Cores: | Quad-Core |
| Max Supported Qty: | 1 |
| RAM: | 4 GB (installed) / 8 GB (supported) - DDR3 |
| Flash Memory Installed: | 512 MB |
| Storage Controller | |
| Type: | RAID |
| Interface Type: | SATA 6Gb/s |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare |
| Networking | |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 10GbE |
| Network / Transport Protocol: | TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DHCP, SMB, DDNS |
| Remote Management Protocol: | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Network Services Compatibility: | Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP |
| Features: | VPN support, LDAP support, wake on LAN (WOL), Syslog support, print server, IPv6 support, proxy server, backup server, Trivial File Transfer Protocol (TFTP) support, iTunes server, Jumbo Frames support, DHCP server, FTP server, SMS alert, UPnP Media Server, IPv4 support, surveillance station, DLNA Media Server, Apple Time Machine compatible, DHCP client, cloud backup, VPN Server, Apple AirPlay |
| Encryption Algorithm: | SSL, TLS, 256-bit AES |
| Compliant Standards: | DLNA CERTIFIED, UPnP |
| Security DVR | |
| IP Cameras Supported: | 5000 |
| Expansion / Connectivity | |
| Expansion Bays: | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Interfaces: | 1 x Ethernet 1000Base-T - RJ-45 ¦ 3 x USB 3.2 Gen 1 - Type A ¦ 1 x Ethernet 10Gb - SFP+ ¦ 1 x 2.5 Gigabit Ethernet - RJ-45 |
| Miscellaneous | |
| Cables Included: | 1 x network cable |
| Features: | Security lock slot (cable lock sold separately), audible alarm, built-in cooling fan, hardware encryption |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | AES-256 |
| Included Accessories: | Flat head screws (for 2.5" HDD), flat head screws (for 3.5" HDD), 2 x hard drive security key, power cable |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 120/230 V |
| Power Provided: | 90 Watt |
| Software / System Requirements | |
| Storage Operating System: | QNAP QTS 4.4.2 |
| OS Required: | UNIX, Apple MacOS X 10.10 or later, CentOS 7.0, IBM AIX 7, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2019, Oracle Solaris 10, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Ubuntu 14.04 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 3.47 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
The quad-core TS-431X3 provides four drive bays for high-capacity storage with expandable memory up to 8GB RAM to meet data backup, recovery, and virtualized storage needs of SMBs. The built-in 10GbE SFP+ port provides high bandwidth for intensive data transmission. The TS-431X3 also features a 2.5GbE RJ45 port and a 1GbE RJ45 port for enhancing team file sharing and collaboration efficiency. The TS-431X3 provides comprehensive local, off-site, and cloud backup and the secure Snapshot technology to help create a reliable backup and disaster recovery plan. In the event of a system crash or accidental file deletion, you can quickly restore the system to its normal state.
- Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and virtualized application, while 2.5GbE connectivity enables low-latency file sharing and team collaboration
- HBS (Hybrid Backup Sync) can backup and sync your data to other NAS, servers, and cloud storage for comprehensive backup and disaster recovery
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
- Supports LXC and Docker containers for rapidly deploying application services across platforms, including the cloud, servers, and PCs
- Qfiling automates file organization, greatly improving work efficiency
- Supports VJBOD (Virtual JBOD) technology to expand the storage space of other QNAP NAS
The technical details come from 3rd party. edgemo is not responsible for any errors.
