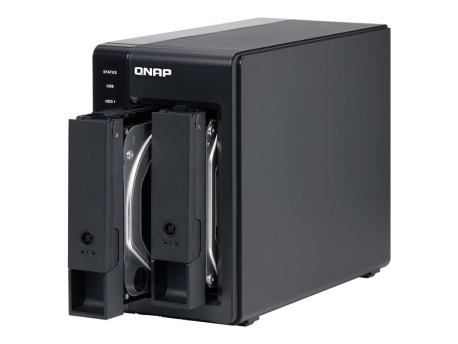

Printers & POSQNAP TR-002 - hard drive array
SKU TR-002
| Product Description: | QNAP TR-002 - hard drive array |
| Device Type: | Hard drive array |
| Interface: | USB 3.1 Gen 2 |
| Installed Devices / Modules Qty: | 0 (installed) / 2 (max) |
| Supported Drives: | SATA-600 |
| Storage Controller: | RAID (SATA 6Gb/s) - RAID RAID 0, 1, JBOD |
| Storage Controller Quantity: | 1 |
- Specifications
- Description
| General | |
| Device Type: | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty: | 0 |
| Supported Devices / Modules Qty: | 2 |
| Supported Drives: | SATA-600 |
| Storage | |
| HDD Array External Interface: | USB 3.1 Gen 2 |
| Storage Controller | |
| Type: | RAID |
| Installed Qty: | 1 |
| Interface Type: | SATA 6Gb/s |
| RAID Level: | RAID 0, RAID 1, JBOD |
| Storage Controller (2nd) | |
| Installed Qty: | 1 |
| Hard Drive | |
| Type: | No HDD |
| Expansion / Connectivity | |
| Expansion Bays: | 2 (total) / 2 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces: | 1 x USB 3.1 Gen 2 - 24 pin USB-C |
| Miscellaneous | |
| Features: | Security lock slot (cable lock sold separately), built-in cooling fan |
| Cables Included: | 1 x USB-C to USB-A cable |
| Included Accessories: | 2 x keys, cable clip, 6 x screws (for 2.5" HDD), 8 x screws (for 3.5" HDD), power cable |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 120/230 V |
| Power Consumption Operational: | 10.15 Watt |
| Power Provided: | 36 Watt |
| Power Consumption Stand by: | 2.98 Watt |
| Dimensions & Weight | |
| Width: | 10.2 cm |
| Depth: | 21.9 cm |
| Height: | 16.85 cm |
| Weight: | 1.37 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Sound Emission: | 17.8 dBA |
The TR-002 USB 3.1 Gen. 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.1 Gen. 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
- USB 3.1 Gen. 2 Type-C port for faster data transfer
- Supports up to two SATA drives
- Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group
- Lockable hard drive trays to prevent accidental drive removal
- Eject button for disconnecting the TR-002 from a NAS or computer
- Instantly back up files from the TR-002 to the NAS using the One Touch Copy button
