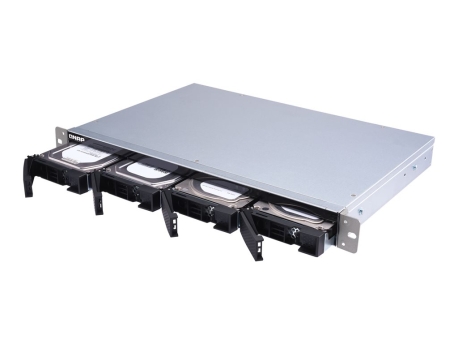

QNAP TL-R400S - hard drive array

SKU TL-R400S
Product Description:QNAP TL-R400S - hard drive array
Device Type:Hard drive array
Enclosure Type:Rack-mountable - 1U
Interface:SATA 6Gb/s
Installed Devices / Modules Qty:0 (installed) / 4 (max)
Supported Drives:SATA-600
Storage Controller:SATA (SATA 6Gb/s) - RAID JBOD
07-01-2025
  • Specifications
  • Description
General
Device Type:Hard drive array
Enclosure Type:Rack-mountable - 1U
Chassis
Installed Devices / Modules Qty:0
Supported Devices / Modules Qty:4
Supported Drives:SATA-600
Storage
HDD Array External Interface:SATA 6Gb/s
Storage Controller
Type:SATA
Interface Type:SATA 6Gb/s
RAID Level:JBOD
Hard Drive
Type:No HDD
Expansion / Connectivity
Expansion Bays:4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" shared
Interfaces:1 x SATA 6Gb/s - 26 pin 4x Mini MultiLane SAS (SFF-8088)
System Requirements
OS Required:Microsoft Windows, Linux, QNAP QTS, QNAP QTS hero
Miscellaneous
Features:Built-in 2 cooling fans, security lock slot (cable lock sold separately)
Cables Included:1 x SFF-8088 to SFF-8088 SAS cable
Included Accessories:12 flathead screws (for 2.5" HDD), 16 flathead screws (for 3.5" HDD), QNAP QXP SATA Expansion Card, power cable
Power
Power Device:Internal power supply
Voltage Required:AC 120/230 V
Power Provided:100 Watt
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:5 - 95% (non-condensing)
Sound Emission:22.1 dBA
vis mere
TL-R400S Rackmount JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows and Ubuntu computers and servers. The TL-R400S features four 3.5-inch SATA 6Gb/s drive bays, the shallow rack design is perfect for installing the TL-R400S in a compact rack, or in areas with a lot of cabling.
  • High performance of TL SATA JBOD
  • Flexible storage configuration and management
  • Versatile usage scenarios to meet storage expansion needs
  • TL-R400S offers better performance than other USB and eSATA JBOD solutions
  • Expand your NAS capacity
  • External storage for your NAS
  • Expand the storage space of your Windows and Ubuntu computers and servers




The technical details come from 3rd party. edgemo is not responsible for any errors.
