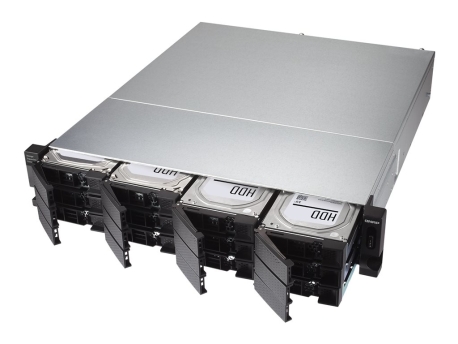

QNAP TL-R1200C-RP - hard drive array

SKU TL-R1200C-RP
Product Description:QNAP TL-R1200C-RP - hard drive array
Device Type:Hard drive array
Enclosure Type:Rack-mountable - 2U
Interface:USB 3.2 Gen 2
Installed Devices / Modules Qty:0 (installed) / 12 (max)
Supported Drives:SATA-600
Storage Controller:SATA (SATA 6Gb/s) - RAID JBOD
05-07-2024
  • Specifications
  • Description
General
Device Type:Hard drive array
Enclosure Type:Rack-mountable - 2U
Chassis
Installed Devices / Modules Qty:0
Supported Devices / Modules Qty:12
Supported Drives:SATA-600
Storage
HDD Array External Interface:USB 3.2 Gen 2
Storage Controller
Type:SATA
Interface Type:SATA 6Gb/s
RAID Level:JBOD
Hard Drive
Type:No HDD
Expansion / Connectivity
Expansion Bays:12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" shared
Interfaces:1 x USB 3.2 Gen 2 - 24 pin USB-C
System Requirements
OS Required:Linux, Microsoft Windows, QNAP QTS, QNAP QTS hero
Miscellaneous
Features:Built-in 2 cooling fans
Cables Included:1 x USB-C to USB-A cable
Included Accessories:2 power cords, cable clip, 36 flat head screws (for 2.5" HDD), 48 x flat head screws (for 3.5" HDD)
Power
Power Device:Internal power supply
Power Redundancy:Yes
Voltage Required:AC 120/230 V
Power Consumption Operational:82.26 Watt
Power Provided:250 Watt
Dimensions & Weight
Width:48.2 cm
Depth:56.25 cm
Height:8.86 cm
Weight:11.03 kg
Dimensions & Weight (Shipping)
Shipping Weight:14.29 kg
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:5 - 95% (non-condensing)
Sound Emission:33.4 dBA
vis mere
The rackmount TL-R1200C-RP JBOD storage enclosure allows you to back up and expand your QNAP NAS, computers (supports Windows and Mac), and servers. The TL-R1200C-RP features twelve 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen 2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.
The TL-R1200C-RP provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using the QTS / QTS hero Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP JBOD Manager utility on their computer.
  • USB 3.2 Gen 2 Type-C connectivity provides up to 10 Gb/s data transfer speeds
  • The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables
  • Provides high capacity and affordability, making it an excellent backup solution for QNAP NAS
  • 250W redundant power supply to ensure maximum system uptime




The technical details come from 3rd party. edgemo is not responsible for any errors.
