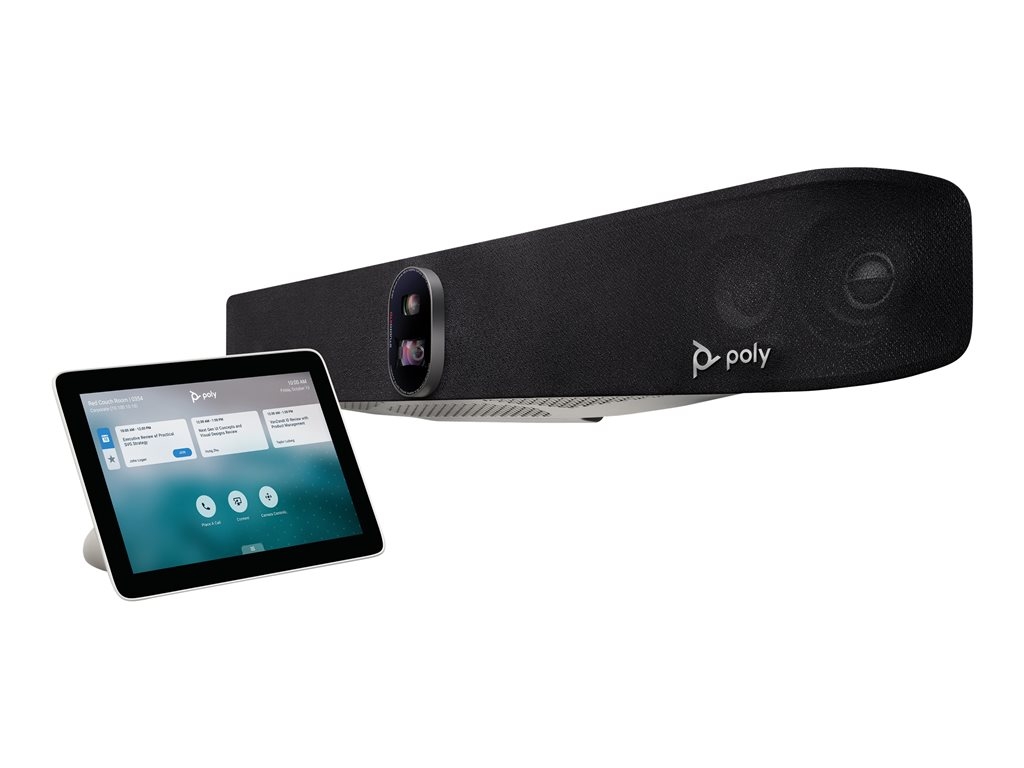

Printers & POSPoly Studio X70 - video conferencing kit - with Poly TC8
SKU 7200-87300-101
| Product Description: | Poly Studio X70 - video conferencing kit - with Poly TC8 |
| Device Type: | Video conferencing kit |
| Kit Content: | Touchscreen console, video bar |
| VoIP Protocols: | H.323, SIP |
| Codec: | H.264, H.265, H.264 High Profile, H.264 AVC, G.711, G.722, G.728, G.729a, G.722.1, G.722.1c, G.719 |
| Localisation: | Europe |
| Video Input: | Digital camera - HDMI |
- Specifications
- Description
| General | |
| Device Type: | Video conferencing kit |
| Kit Content: | Touchscreen console, video bar |
| VoIP Protocols: | H.323, SIP |
| Voice Codecs: | G.711, G.722, G.728, G.729a, G.722.1, G.722.1c, G.719 |
| Video Codecs: | H.264, H.265, H.264 High Profile, H.264 AVC |
| Security: | 128 bit AES, 256 bit AES, H.235.6 |
| Network Features: | Authenticated access to admin menus, web interface, and APIs, local account password policy configuration, security profiles, local account and login port lockout, secure defaults, remote logging with support for TLS, active directory external authentication |
| Dimensions & Weight Details: | Touch screen - Width 20.5 cm Depth 7.9 cm Height 12.3 cm Weight 812 g ¦ Video bar - Width 84.018 cm Depth 11.733 cm Height 13.538 cm Weight 3.2 kg |
| Built-in Devices: | Stereo speakers, dual camera, 2 MEMS microphones, 2 2nd order microphones |
| Localisation: | Europe |
| Bundled with: | Poly TC8 |
| Video Input | |
| Type: | Digital camera (colour) - integrated |
| Interface Type: | HDMI |
| Digital Video Capture Resolution: | 1920 x 1080, 3840 x 2160, 1680 x 1050, 1600 x 1200, 1280 x 1024, 1280 x 768, 1024 x 768, 800 x 600, 1280 x 720 |
| Video Modes: | 1080/30p, 720/30p, 4K |
| Digital Zoom: | 7.3 |
| Features: | Auto tracking, auto-framing, Miracast connectivity, 120° field of view (horizontal), 140° field of view (diagonal), 70° field of view (horizontal), 78° diagonal field of view, 2x 20 megapixels sensors |
| Video Output | |
| Max External Resolution: | 3840 x 2160 |
| Supported Display Graphics: | XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), WUXGA (1920 x 1200), HD (1280 x 720), WSXGA+ (1680 x 1050), UHD (3840 x 2160) |
| Digital Video Standard: | High-Definition Multimedia Interface (HDMI) |
| Audio Input | |
| Type: | Quad array microphone - integrated |
| Audio Output | |
| Type: | Speaker(s) |
| Sound Output Mode: | Stereo |
| Input Device | |
| Type: | 8" touchscreen |
| Connectivity Technology: | Wired |
| Features: | 1280 x 800 resolution, LED backlight |
| Networking | |
| Type: | Network adapter |
| Connectivity Technology: | Wireless, wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Network / Transport Protocol: | IPv4, IPv6 |
| Features: | OCSP support, auto-uplink (auto MDI/MDI-X), Wi-Fi Miracast ready, MIMO technology, IPv4 support, Apple AirPlay, Polycom Lost Packet Recovery (LPR) technology, Simple Certificate Enrollment Protocol (SCEP), password protection, IPv6 support, dynamic bandwidth allocation, reconfigurable MTU size, AES encryption, electronic privacy shutter |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Interfaces: | 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x USB-C - 24 pin USB-C ¦ 1 x audio - line-In - mini-phone 3.5 mm ¦ 1 x audio - line-out - mini-phone 3.5 mm ¦ 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x microphone |
| Miscellaneous | |
| Cables Included: | 1 x network cable ¦ 2 x HDMI cable |
| Included Accessories: | Wall mount |
| Power | |
| Power Device: | Power adapter - external |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 15 - 80% (non-condensing) |
Poly Studio X70 is a beautifully engineered, premium videoconference solution that combines razor-sharp 4K video with boardroom filling stereo sound for simply the best meeting experience available. With a sleek all-in-one plug-and-play design, the Poly Studio X70 eliminates tangled cables and IT headaches while providing robust audio and video. Includes the easy-to-use TC8 dedicated touch controller.
- Dual 4K lenses
- Two-way stereo speakers, aluminum cone tweeters, and advanced bass ports
- AI-driven camera array
- NoiseBlockAI noise reduction technology
- Seamless native experience on leading cloud video services
