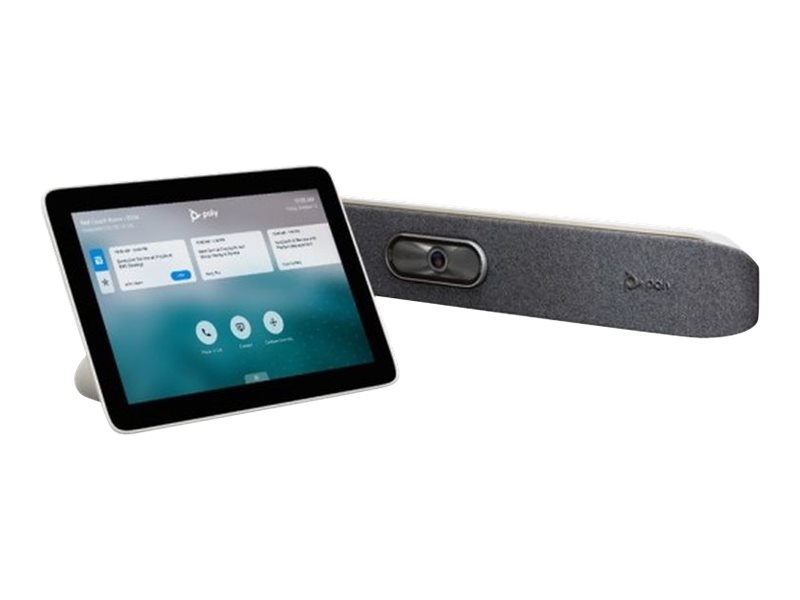

Poly Studio X30 - video conferencing kit - with Poly TC8
SKU 2200-86260-101
Product Description: | Poly Studio X30 - video conferencing kit - with Poly TC8 |
Device Type: | Video conferencing kit |
Kit Content: | Touchscreen console, video bar |
VoIP Protocols: | H.323, SIP |
Codec: | H.264, H.265, H.264 High Profile, G.711, G.722, G.728, G.729a, G.722.1, G.722.1c, AAC-LD, G.719 |
Localisation: | Europe |
Video Input: | Digital camera - HDMI input |
- Specifications
- Description
General | |
Device Type: | Video conferencing kit |
Kit Content: | Touchscreen console, video bar |
VoIP Protocols: | H.323, SIP |
Voice Codecs: | G.711, G.722, G.728, G.729a, G.722.1, G.722.1c, AAC-LD, G.719 |
Video Codecs: | H.264, H.265, H.264 High Profile |
Security: | 128 bit AES, 256 bit AES, TLS 1.0, TLS 1.1, TLS 1.2, H.235.6, FIPS 140-2 |
Network Features: | Authenticated access to admin menus, web interface, and APIs, local account password policy configuration, security profiles, local account and login port lockout, secure defaults, remote logging with support for TLS, active directory external authentication |
Dimensions & Weight Details: | Touch screen - Width 20.5 cm Depth 7.9 cm Height 12.3 cm Weight 812 g ¦ Video bar - Width 44.18 cm Depth 6.16 cm Height 6.25 cm Weight 730 g |
Built-in Devices: | Speaker, camera, 4 microphones |
Localisation: | Europe |
Bundled with: | Poly TC8 |
Video Input | |
Type: | Digital camera - integrated |
Interface Type: | HDMI input |
Digital Video Capture Resolution: | 1280 x 720, 1024 x 768, 1280 x 1024, 1920 x 1080, 3840 x 2160, 1920 x 1200, 1680 x 1050, 1400 x 1050 |
Video Modes: | 720/60p, 1080/60p, 1080/30p, 720/30p, 4K |
Digital Zoom: | 4 |
Features: | Interactive whiteboard compatibility, 120° field of view, automatic speaker tracking, automatic group framing, Poly content sharing, content annotation, UHD 2160p (4K) capture resolution |
Video Output | |
Max External Resolution: | 3840 x 2160 |
Supported Display Graphics: | XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), WUXGA (1920 x 1200), HD (1280 x 720), WSXGA+ (1680 x 1050), UHD (3840 x 2160) |
Digital Video Standard: | High-Definition Multimedia Interface (HDMI) |
Audio Input | |
Type: | Four microphones |
Audio Output | |
Type: | Speaker(s) |
Sound Output Mode: | Mono |
Input Device | |
Type: | 8" touchscreen |
Connectivity Technology: | Wired |
Networking | |
Type: | Network adapter |
Connectivity Technology: | Wireless, wired |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
Features: | OCSP support, auto-uplink (auto MDI/MDI-X), MIMO technology, IPv4 support, Wi-Fi Miracast ready, Apple AirPlay, Polycom Lost Packet Recovery (LPR) technology, Simple Certificate Enrollment Protocol (SCEP) |
Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
Expansion / Connectivity | |
Interfaces: | 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 1 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x SuperSpeed USB 3.0 ¦ 1 x USB-C - 24 pin USB-C ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Miscellaneous | |
Included Accessories: | Clamp, cables |
Software Certification: | Zoom Certified, Certified for Microsoft Teams, Google Meet Certified |
Compliant Standards: | FIPS 140-2 |
Power | |
Power Device: | Power adapter - external |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 1 year |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 5 - 90% (non-condensing) |
Poly Studio X30 Video Bar delivers radical simplicity in a small and elegant package. Now you can huddle happy in smaller rooms and connect easy in conference rooms with whatever video collaboration software you use, including native Zoom Rooms. Experience full board-room quality audio, advanced camera capabilities, and wireless content sharing that you can fling your content onto in seconds, all miniaturized into one sleek bar. So, say good bye to pucks, cords, and cables. Ditch the PC to drive the meeting, since the Poly Video OS runs the show. Easy to install, easy to manage - and best of all, easy to use. The new Poly Studio X line of video bars puts the mojo back into meetings.
- Poly Studio X30 Video Bar deliver radical simplicity in a small and elegant package. Now you can huddle happy in smaller rooms and connect easy in conference rooms whatever video collaboration software you use. Experience full board-room quality audio, advanced camera capabilities, and wireless content sharing that you can fling your content onto in seconds, all miniaturized into one sleek bar. So, say good bye to pucks, cords, and cables. Ditch the PC to drive the meeting, since the Poly Video OS runs the show. Easy to install, easy to manage—and best of all, easy to use. The new Poly Studio X line of video bars puts the mojo back into meetings
- Simple setup gets rooms up and running in moments
- No PCs required, with cloud service platform support built-in
- Control from the comfort of your chair or a quick touch on the screen
- Easily manage your room system from anywhere across your network
- Easily share content over wired or wireless connections
- Feel connected with production-quality camera framing
- Smart speaker tracking to show your best face every time
- Life-like 4K UltraHD video to see every detail
- Room filling audio with an innovative acoustic chamber design
- Block out distractions with machine learning audio algorithms
- Native support for Video-as-a-Service (VaaS) platforms without the need for a PC
- H.323 and SIP support for easy connection to any standards-based video solutions
The technical details come from 3rd party. edgemo is not responsible for any errors.
