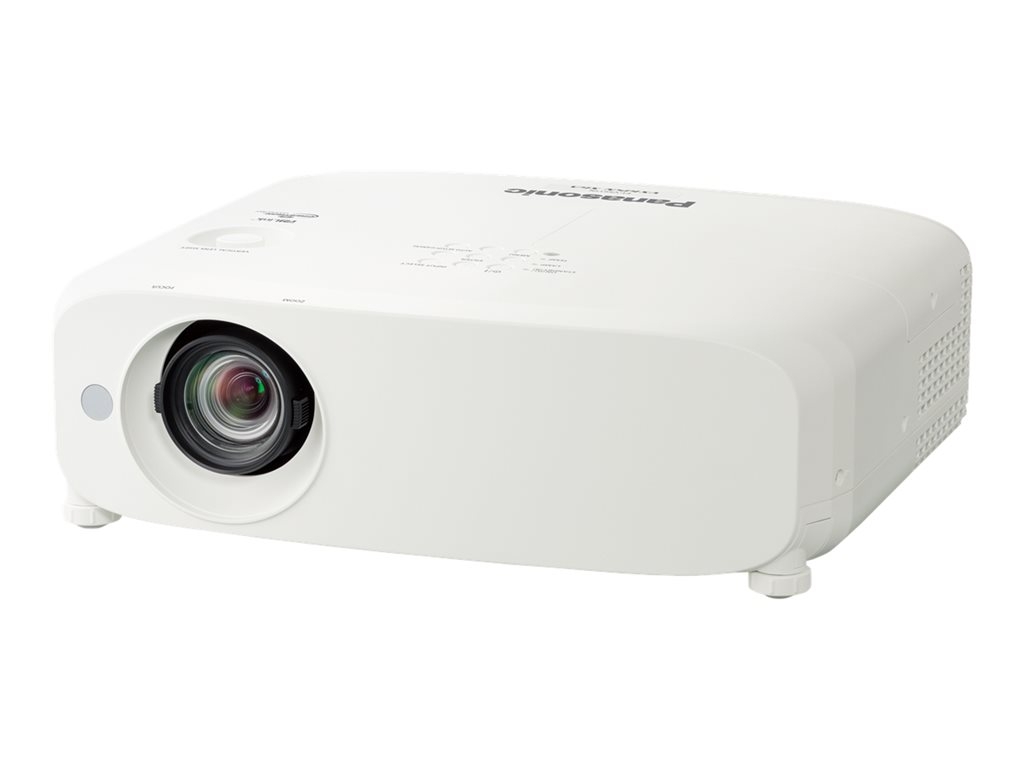

Panasonic PT-VZ585N - LCD projector - 802.11a/b/g/n wireless / Miracast
SKU PT-VZ585NEJ
Product Description: | Panasonic PT-VZ585N - LCD projector - 802.11a/b/g/n wireless / Miracast |
Device Type: | LCD projector - 1080p |
Brightness (White): | 5000 lumens |
Brightness (Colour): | 5000 lumens |
Contrast Ratio: | 16000:1 |
Resolution: | WUXGA (1920 x 1200) |
Native Aspect Ratio: | 16:10 |
- Specifications
- Description
General | |
Device Type: | LCD projector - 1080p |
Networking: | 802.11a/b/g/n, Ethernet |
Projector | |
Brightness (White): | 5000 lumens |
Brightness (Colour): | 5000 lumens |
Contrast Ratio: | 16000:1 |
Image Size: | 76 cm - 762 cm |
Throw Ratio: | 1.09 - 1.77:1 |
Uniformity: | 85 % |
Resolution: | WUXGA - WUXGA (1920 x 1200) |
Native Aspect Ratio: | 16:10 |
Video Bandwidth: | 162 MHz |
Display Format: | 2,304,000 pixels (1920 x 1200) x 3 |
Max Sync Rate (V x H): | 100 Hz x 91 kHz |
Bulb type: | UHM 280 Watt |
Bulb life cycle: | Up to 5000 hour(s) - normal mode ¦ Up to 7000 hour(s) - economic mode |
Controls & Adjustments: | Keystone correction |
Features: | PJlink |
Lens | |
Focus Type: | Manual |
Lens Aperture: | F/1.6-2.12 |
Zoom Type: | Manual |
Zoom Factor: | 1.6x |
Keystone Correction Direction: | Horizontal, vertical |
Vertical Keystone Correction: | -25 / +25 |
Horizontal Keystone Correction: | -30 / +30 |
Lens Shift Type: | Manual |
Lens Shift Direction: | Vertical |
Vertical Lens Shift: | 44% / 44% |
Video Input | |
TV System: | NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60 |
Analogue video Signal: | RGB, composite video, component video |
Video Interfaces: | HDMI, component video, composite video, RGB |
Video Modes: | 480p, 480i, 525i, 525p, 625p, 625i, 576i, 576p, 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 750/50p, 750/60p, 1125/60i, 1125/60p, 1125/50i, 1125/24p, 1125/25p, 1125/30p, 1125/50p, 1080/24sF, 1125/24sF |
LAN and Wireless Image Transferring Protocols: | Wired LAN, Miracast, Wi-Fi |
Speakers | |
Type: | Integrated |
Sound Output Mode: | Mono |
Output Power / Channel: | 10 Watt |
Speakers: | 1 x mixed channel - 4 cm |
Expansion / Connectivity | |
Interfaces: | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video output - RCA ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA x 2 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x USB - 4 pin USB Type A ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) (management) ¦ 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type B |
Miscellaneous | |
Included Accessories: | 2 x AAA batteries, wireless remote control, cable holder |
Cables Included: | 1 x VGA cable |
Security Features: | Security lock slot (cable lock sold separately) |
Security Slot Type: | Kensington security slot |
Power | |
Power Source: | AC |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Consumption Operational: | 410 Watt |
Power Consumption Stand by: | 14 Watt |
Software / System Requirements | |
Software Included: | Drivers & Utilities, Logo Transfer Software, Multi Projector Monitoring & Control Software |
Dimensions & Weight | |
Width: | 38.9 cm |
Depth: | 33.2 cm |
Height: | 12.5 cm |
Weight: | 4.9 kg |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 20 - 80% (non-condensing) |
Sound Emission: | 37 dB |
Sound Emission (Economic Mode): | 29 dB |
Get more from a projector that works brilliantly as a high-brightness portable for large boardrooms, meeting spaces, and classrooms, or as an easily managed ceiling installation solution.
- Boosted picture quality
- Efficient low-maintenance design
- Quiet operation
