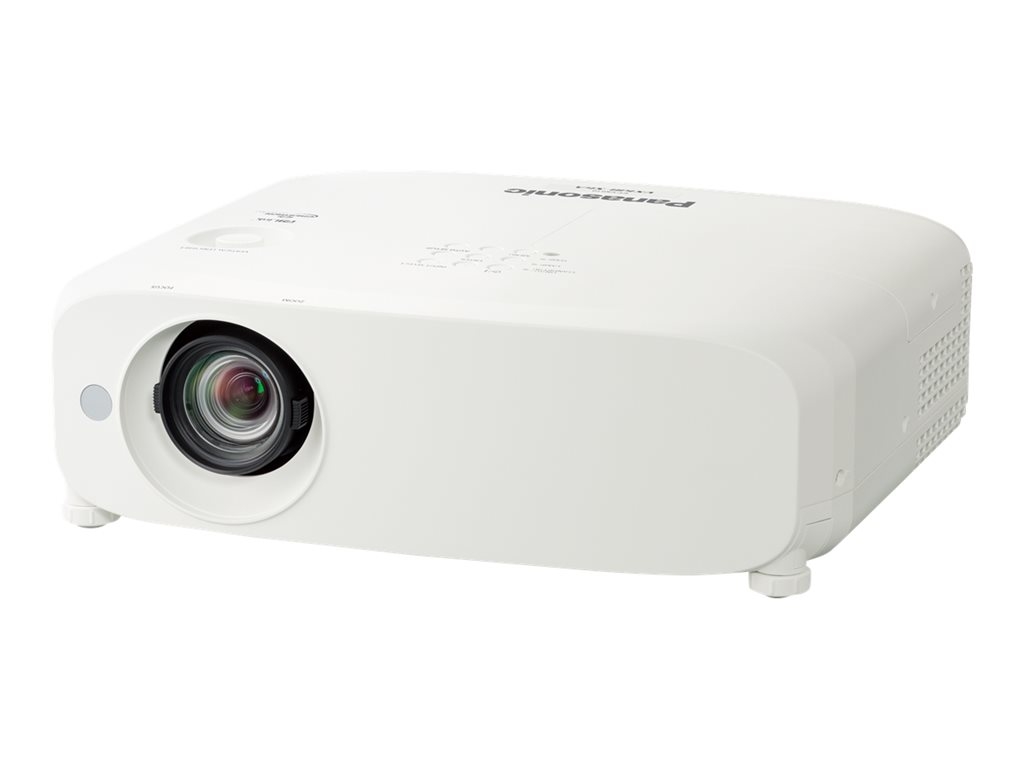

Panasonic PT-VX610 - LCD projector

SKU PT-VX610EJ
Product Description:Panasonic PT-VX610 - LCD projector
Device Type:LCD projector
Brightness (White):5500 lumens
Brightness (Colour):5500 lumens
Contrast Ratio:16000:1
Resolution:XGA (1024 x 768)
Native Aspect Ratio:4:3
Not in stock
  • Specifications
  • Description
General
Device Type:LCD projector
Networking:Ethernet
Projector
Brightness (White):5500 lumens
Brightness (Colour):5500 lumens
Contrast Ratio:16000:1
Image Size:76 cm - 762 cm
Throw Ratio:1.17 - 1.90:1
Uniformity:85 %
Resolution:XGA - XGA (1024 x 768)
Native Aspect Ratio:4:3
Video Bandwidth:162 MHz
Display Format:786,432 pixels (1,024 x 768) x 3
Max Sync Rate (V x H):100 Hz x 91 kHz
Bulb type:UHM 280 Watt
Bulb life cycle:Up to 5000 hour(s) - normal mode ¦ Up to 7000 hour(s) - economic mode
Controls & Adjustments:Keystone correction
Features:PJlink
Lens
Focus Type:Manual
Lens Aperture:F/1.6-1.9
Zoom Type:Manual
Zoom Factor:1.6x
Keystone Correction Direction:Horizontal, vertical
Vertical Keystone Correction:-35 / +35
Horizontal Keystone Correction:-35 / +35
Lens Shift Type:Manual
Lens Shift Direction:Vertical
Vertical Lens Shift:40% / 40%
Video Input
TV System:NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60
Analogue video Signal:RGB, composite video, component video
Video Interfaces:HDMI, component video, composite video, RGB
Video Modes:480p, 480i, 525i, 525p, 625p, 625i, 576i, 576p, 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 750/50p, 750/60p, 1125/60i, 1125/60p, 1125/50i, 1125/24p, 1125/25p, 1125/30p, 1125/50p, 1080/24sF, 1125/24sF
Speakers
Type:Integrated
Sound Output Mode:Mono
Output Power / Channel:10 Watt
Speakers:1 x mixed channel - 4 cm
Expansion / Connectivity
Interfaces:2 x HDMI input - 19 pin HDMI Type A ¦ 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video output - RCA ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA x 2 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x USB - 4 pin USB Type A ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) (management) ¦ 1 x network - RJ-45
Miscellaneous
Included Accessories:2 x AAA batteries, wireless remote control, cable holder
Cables Included:1 x VGA cable
Security Features:Security lock slot (cable lock sold separately)
Security Slot Type:Kensington security slot
Power
Power Source:AC
Voltage Required:AC 120/230 V (50/60 Hz)
Power Consumption Operational:400 Watt
Power Consumption Stand by:8 Watt
Software / System Requirements
Software Included:Drivers & Utilities, Logo Transfer Software, Multi Projector Monitoring & Control Software
Dimensions & Weight
Width:38.9 cm
Depth:33.2 cm
Height:12.5 cm
Weight:4.8 kg
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:20 - 80% (non-condensing)
Sound Emission:37 dB
Sound Emission (Economic Mode):29 dB
vis mere
Get the optimal of both worlds in a projector, that works brilliantly as a high-brightness portable for large boardrooms, meeting spaces and classrooms, or as an easily managed ceiling installation solution thanks to single-cable DIGITAL LINK. However it's used, there's full wireless media casting support, so everybody can serve punchy, pin-sharp pictures in well-lit spaces.
  • Boosted picture quality with high contrast
  • Efficient low-maintenance design
  • Daylight View Basic
  • Quiet operation
  • Zoom lens and lens shift function
  • Quick lamp and filter replacement
  • Auto screen image rotation
  • Easy geometric adjustment function




The technical details come from 3rd party. edgemo is not responsible for any errors.
