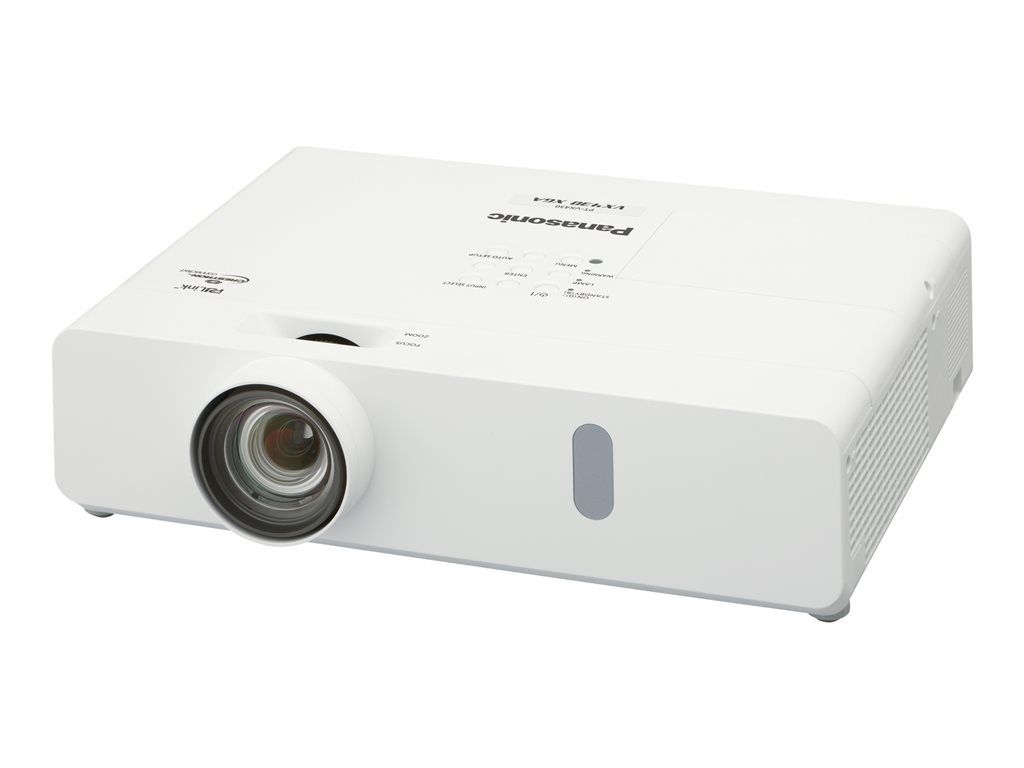

Panasonic PT-VX430EJ - 3LCD projector - standard lens - LAN
SKU PT-VX430EJ
Product Description: | Panasonic PT-VX430EJ - 3LCD projector - standard lens - LAN |
Device Type: | 3LCD projector - 720p |
Brightness: | 4500 lumens |
Contrast Ratio: | 20000:1 (dynamic) |
Resolution: | XGA (1024 x 768) |
Native Aspect Ratio: | 4:3 |
Lens: | Standard lens |
- Specifications
- Description
General | |
Device Type: | 3LCD projector - 720p |
Networking: | Ethernet |
Projector | |
Brightness: | 4500 lumens |
Contrast Ratio: | 20000:1 (dynamic) |
Image Size: | 76 cm - 762 cm |
Uniformity: | 85 % |
Resolution: | XGA - XGA (1024 x 768) |
Native Aspect Ratio: | 4:3 |
Display Format: | 786,432 pixels (1,024 x 768) x 3 |
Bulb type: | UHM 240 Watt |
Bulb life cycle: | Up to 5000 hour(s) - normal mode ¦ Up to 7000 hour(s) - economic mode |
Controls & Adjustments: | Keystone correction |
Features: | Daylight View Technology, Deep Color, PJlink |
Lens | |
Type: | Standard lens |
Focus Type: | Manual |
Lens Aperture: | F/1.6-1.9 |
Zoom Type: | Manual |
Zoom Factor: | 1.6x |
Keystone Correction Type: | Digital |
Keystone Correction Direction: | Horizontal, vertical, corner |
Vertical Keystone Correction: | -35 / +35 |
Horizontal Keystone Correction: | -35 / +35 |
Vertical Lens Shift: | 9:1 |
Video Input | |
Video Interfaces: | VGA, HDMI, composite video |
Speakers | |
Sound Output Mode: | Mono |
Output Power / Channel: | 10 Watt |
Speakers: | 1 x mixed channel - 4 cm |
Expansion / Connectivity | |
Interfaces: | 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 9 pin USB Type B ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) ¦ 1 x composite video/audio input - RCA x 3 ¦ 2 x audio line-in - mini-phone 3.5 mm ¦ 1 x audio line-out - mini-phone 3.5 mm |
Miscellaneous | |
Security Features: | Security lock slot (cable lock sold separately) |
Security Slot Type: | Kensington security slot |
Power | |
Power Source: | AC |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Consumption Operational: | 320 Watt |
Power Consumption Stand by: | 8 Watt |
Software / System Requirements | |
Software Included: | Logo Transfer Software, Multi Projector Monitoring & Control Software, Wireless Projector App, Presenter Light for Windows |
Dimensions & Weight | |
Width: | 35.2 cm |
Depth: | 27.9 cm |
Height: | 9.8 cm |
Weight: | 3.3 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 50 cm |
Shipping Depth: | 35.1 cm |
Shipping Height: | 21 cm |
Shipping Weight: | 6.3 kg |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 20 - 80% (non-condensing) |
Sound Emission: | 37 dB |
Sound Emission (Economic Mode): | 29 dB |
The VX430 series makes point-and-shoot projection easy in any space. With dynamic contrast, images are vivid and sharp.
- Extremely bright images
- Superior contrast
- Quiet operation
- Curved screen correction
The technical details come from 3rd party. edgemo is not responsible for any errors.
