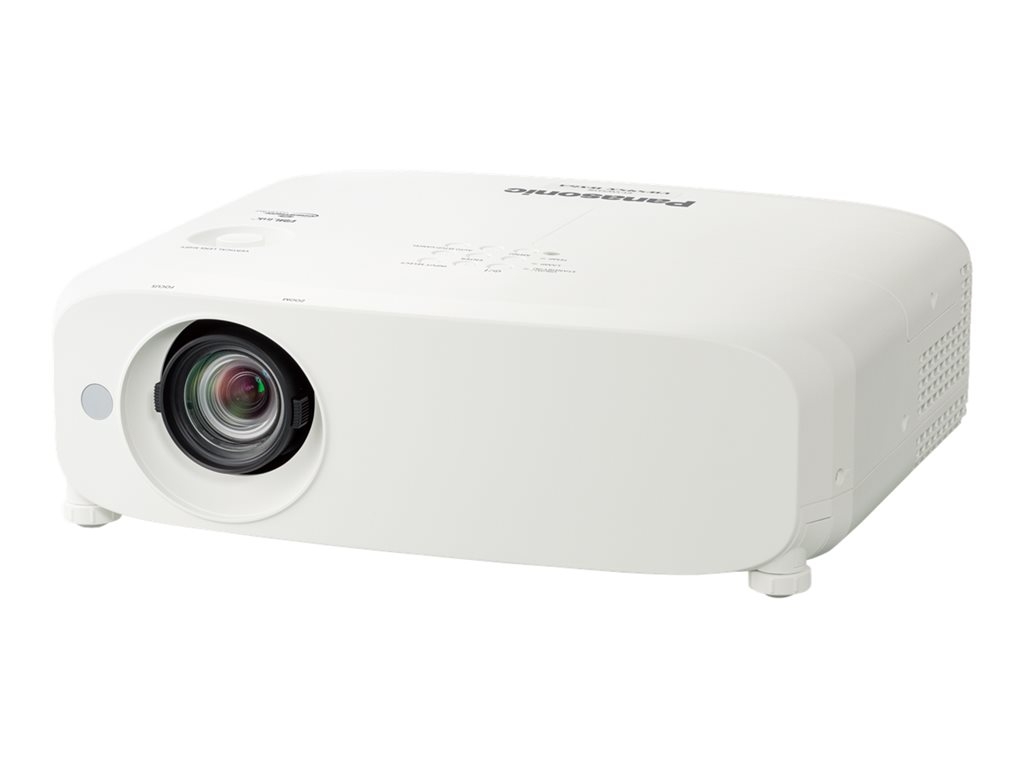

Printers & POSPanasonic PT-VW545N - LCD projector - 802.11a/b/g/n wireless / Miracast
SKU PT-VW545NEJ
| Product Description: | Panasonic PT-VW545N - LCD projector - 802.11a/b/g/n wireless / Miracast |
| Device Type: | LCD projector - 720p |
| Brightness (White): | 5500 lumens |
| Brightness (Colour): | 5500 lumens |
| Contrast Ratio: | 16000:1 |
| Resolution: | WXGA (1280 x 800) |
| Native Aspect Ratio: | 16:10 |
- Specifications
- Description
| General | |
| Device Type: | LCD projector - 720p |
| Networking: | 802.11a/b/g/n, Ethernet |
| Projector | |
| Brightness (White): | 5500 lumens |
| Brightness (Colour): | 5500 lumens |
| Contrast Ratio: | 16000:1 |
| Image Size: | 76 cm - 762 cm |
| Throw Ratio: | 1.08 - 1.76:1 |
| Uniformity: | 85 % |
| Resolution: | WXGA - WXGA (1280 x 800) |
| Native Aspect Ratio: | 16:10 |
| Video Bandwidth: | 162 MHz |
| Display Format: | 1,024,000 pixels (1,280 x 800) x 3 |
| Max Sync Rate (V x H): | 100 Hz x 91 kHz |
| Bulb type: | UHM 280 Watt |
| Bulb life cycle: | Up to 5000 hour(s) - normal mode ¦ Up to 7000 hour(s) - economic mode |
| Controls & Adjustments: | Keystone correction |
| Features: | PJlink |
| Lens | |
| Focus Type: | Manual |
| Lens Aperture: | F/1.6-1.9 |
| Zoom Type: | Manual |
| Zoom Factor: | 1.6x |
| Keystone Correction Direction: | Horizontal, vertical |
| Vertical Keystone Correction: | -35 / +35 |
| Horizontal Keystone Correction: | -35 / +35 |
| Lens Shift Type: | Manual |
| Lens Shift Direction: | Vertical |
| Vertical Lens Shift: | 44% / 44% |
| Video Input | |
| TV System: | NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60 |
| Analogue video Signal: | RGB, composite video, component video |
| Video Interfaces: | HDMI, component video, composite video, RGB |
| Video Modes: | 480p, 480i, 525i, 525p, 625p, 625i, 576i, 576p, 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 750/50p, 750/60p, 1125/60i, 1125/60p, 1125/50i, 1125/24p, 1125/25p, 1125/30p, 1125/50p, 1080/24sF, 1125/24sF |
| LAN and Wireless Image Transferring Protocols: | Wired LAN, Miracast, Wi-Fi |
| Speakers | |
| Type: | Integrated |
| Sound Output Mode: | Mono |
| Output Power / Channel: | 10 Watt |
| Speakers: | 1 x mixed channel - 4 cm |
| Expansion / Connectivity | |
| Interfaces: | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video output - RCA ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA x 2 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x USB - 4 pin USB Type A ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) (management) ¦ 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type B |
| Miscellaneous | |
| Included Accessories: | 2 x AAA batteries, wireless remote control, cable holder |
| Cables Included: | 1 x VGA cable |
| Security Features: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Power | |
| Power Source: | AC |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational: | 400 Watt |
| Power Consumption Stand by: | 14 Watt |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities, Logo Transfer Software, Multi Projector Monitoring & Control Software |
| Dimensions & Weight | |
| Width: | 38.9 cm |
| Depth: | 33.2 cm |
| Height: | 12.5 cm |
| Weight: | 4.9 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
| Sound Emission: | 37 dB |
| Sound Emission (Economic Mode): | 29 dB |
WUXGA resolution brings crisp Full HD to meeting spaces and classrooms for immersive viewing. With high brightness and a 16,000:1 contrast ratio, your audience is treated to vivid colors, inky blacks, pure highlights, and clearly legible text reproduction even in bright conditions. Correct slight color variations in the reproduction range of individual units set up for multi-projection. This is particularly useful for side-by-side configurations delivering ultra-wide-screen pictures. Very large images can be seamlessly presented in auditoriums and boardrooms.
- Boosted picture quality 16,000:1 contrast
- 6-colors adjustment and color correction functions
- Daylight View Basic
- Quiet operation
- Plug and share
- DIGITAL LINK connection
The technical details come from 3rd party. edgemo is not responsible for any errors.
