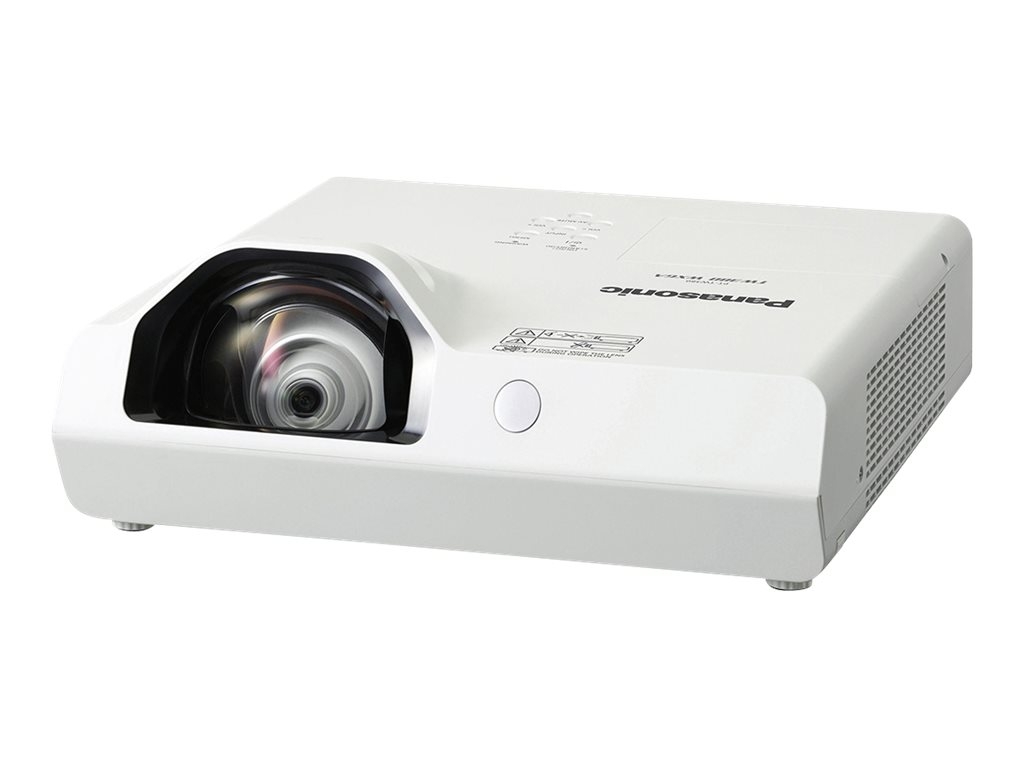

Panasonic PT-TW380 - 3LCD projector
SKU PT-TW380
Product Description: | Panasonic PT-TW380 - 3LCD projector |
Device Type: | 3LCD projector |
Built-in Devices: | Speaker |
Brightness: | 3300 lumens |
Contrast Ratio: | 20000:1 |
Resolution: | WXGA (1280 x 800) |
Native Aspect Ratio: | 16:10 |
- Specifications
- Description
General | |
Device Type: | 3LCD projector |
Built-in Devices: | Speaker |
Networking: | Ethernet |
Projector | |
Brightness: | 3300 lumens |
Contrast Ratio: | 20000:1 |
Image Size: | 127 cm - 254 cm |
Throw Ratio: | 0.46:1 |
Uniformity: | 85 % |
Resolution: | WXGA - WXGA (1280 x 800) |
Native Aspect Ratio: | 16:10 |
Display Format: | 1,024,000 pixels (1,280 x 800) x 3 |
Bulb type: | UHM 230 Watt |
Bulb life cycle: | Up to 10000 hour(s) - normal mode ¦ Up to 20000 hour(s) - economic mode |
Controls & Adjustments: | Keystone correction |
Features: | Daylight View Technology, Deep Color, PJlink |
Lens | |
Focus Type: | Manual |
Lens Aperture: | F/1.8 |
Keystone Correction Direction: | Horizontal, vertical |
Vertical Keystone Correction: | -15 / +15 |
Horizontal Keystone Correction: | -15 / +15 |
Video Input | |
Video Interfaces: | VGA, HDMI, composite video |
Speakers | |
Type: | Integrated |
Sound Output Mode: | Mono |
Output Power / Channel: | 10 Watt |
Speakers: | 1 x mixed channel |
Expansion / Connectivity | |
Interfaces: | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA x 2 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x network - RJ-45 ¦ 1 x serial RS-232C input - 9 pin D-Sub (DB-9) (management) ¦ 1 x USB - 4 pin USB Type A |
Power | |
Power Source: | AC |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Consumption Operational: | 300 Watt |
Software / System Requirements | |
Software Included: | Logo Transfer Software, Multi Projector Monitoring & Control Software, Early Warning Software, Wireless Projector App, Presenter Light for Windows |
Dimensions & Weight | |
Width: | 33.5 cm |
Depth: | 32.9 cm |
Height: | 13.41 cm |
Weight: | 3.9 kg |
Environmental Parameters | |
Min Operating Temperature: | 5 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 20 - 80% (non-condensing) |
Sound Emission: | 38 dB |
Sound Emission (Economic Mode): | 35 dB |
Packing high-contrast brilliance into a compact body, the PT-TW381R Series serves interactive images and can produce an 80-inch picture from throw-distances of 80 cm or less with no shadows on screen.
Give your staff a communication edge with 20,000:1 contrast in small meeting spaces or classrooms. Graphics, text, and video are rendered with vibrant definition even under lights. The projectors support throw distances of 80 cm or less for an 80-inch image, placing the lens in front of the presenter to prevent their shadow falling across the screen.
A 20,000-hour lamp reduces your maintenance overheads compared to conventional lamp projectors thanks to low-degradation materials and improved cooling, while filter replacement is pushed back to 10,000 hours. Early Warning functions virtually eliminate unscheduled downtime, reinforcing reliability in permanent installations.
Give your staff a communication edge with 20,000:1 contrast in small meeting spaces or classrooms. Graphics, text, and video are rendered with vibrant definition even under lights. The projectors support throw distances of 80 cm or less for an 80-inch image, placing the lens in front of the presenter to prevent their shadow falling across the screen.
A 20,000-hour lamp reduces your maintenance overheads compared to conventional lamp projectors thanks to low-degradation materials and improved cooling, while filter replacement is pushed back to 10,000 hours. Early Warning functions virtually eliminate unscheduled downtime, reinforcing reliability in permanent installations.
- Beautiful pictures, no shadows
- Pitch big pictures from close up
- Long-life lamp and filter reduce TCO
