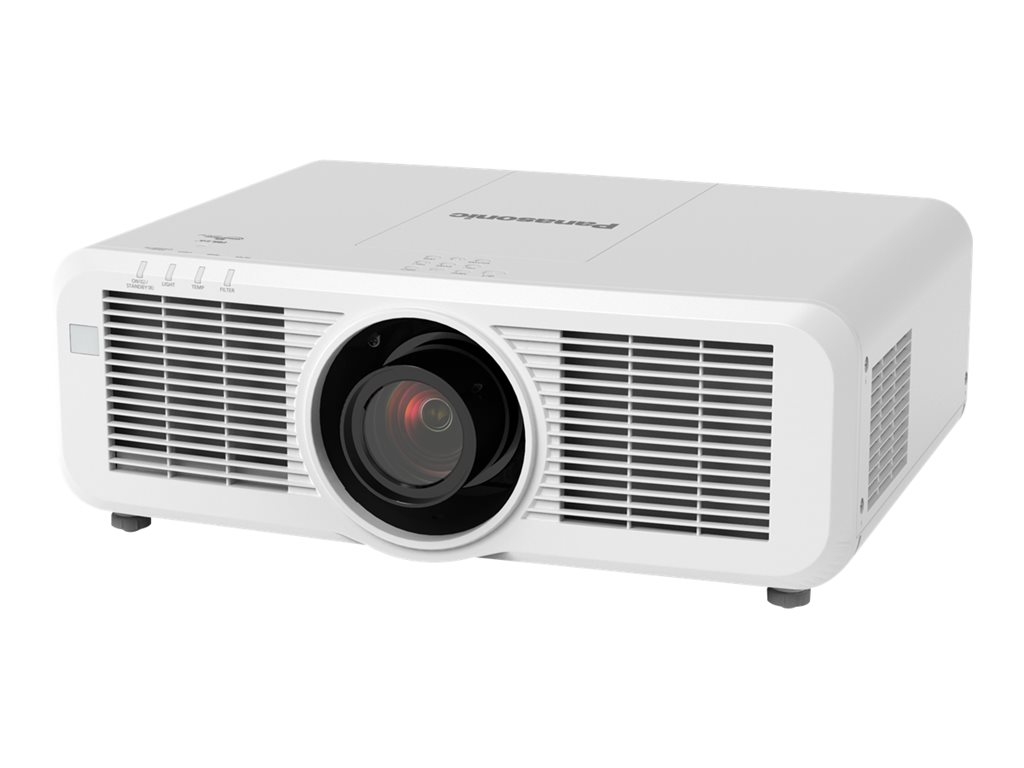

Panasonic PT-MZ570LEJ - LCD projector - no lens - LAN

SKU PT-MZ570LEJ
Product Description:Panasonic PT-MZ570LEJ - LCD projector - no lens - LAN
Device Type:LCD projector - 1080p
Built-in Devices:Speaker
Brightness:5500 lumens
Contrast Ratio:3000000:1 (dynamic)
Resolution:WUXGA (1920 x 1200)
Native Aspect Ratio:16:10
Not in stock
  • Specifications
  • Description
General
Device Type:LCD projector - 1080p
Built-in Devices:Speaker
Networking:Ethernet
Projector
Brightness:5500 lumens
Contrast Ratio:3000000:1 (dynamic)
Image Size:103 cm - 1057 cm
Uniformity:90 %
Resolution:WUXGA - WUXGA (1920 x 1200)
Native Aspect Ratio:16:10
Video Bandwidth:162 MHz
Display Format:6,912,000 pixels (1920 x 1200) x 3
Max Sync Rate (V x H):100 Hz x 91 kHz
Bulb type:Laser diode
Controls & Adjustments:Keystone correction, lens shift dial (horizontal), lens shift dial (vertical)
Features:High-bandwidth Digital Content Protection System (HDCP), Daylight View Technology, 3LCD Technology, Deep Color, PJlink, DICOM Simulation Mode, Dust Resistant Cabinet, Detail Clarity Processor 4, 360° projection, Digital Link, SOLID SHINE Laser Technology, 24/7 operation
Lens
Type:No lens
Keystone Correction Direction:Horizontal, vertical
Vertical Keystone Correction:-30 / +30
Horizontal Keystone Correction:-25 / +25
Lens Shift Type:Powered
Lens Shift Direction:Horizontal, vertical
Video Input
TV System:NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60
Analogue video Signal:RGB, composite video, component video
Video Interfaces:HDMI, component video, composite video, RGB
Video Modes:480p, 480i, 525i, 525p, 625p, 625i, 576i, 576p, 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 750/50p, 750/60p, 1125/60i, 1125/60p, 1125/50i, 1125/24p, 1125/25p, 1125/30p, 1125/50p, 1035/60i, 1080/24sF, 1125/24sF
LAN and Wireless Image Transferring Protocols:Wired LAN
Speakers
Type:Integrated
Sound Output Mode:Mono
Output Power / Channel:10 Watt
Speakers:1 x mixed channel
Expansion / Connectivity
Interfaces:1 x HDMI input - 19 pin HDMI Type A ¦ 1 x composite / component video / RGB output - BNC x 5 ¦ 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232C input - 9 pin D-Sub (DB-9) (management) ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) (management) ¦ 1 x remote control input - mini-phone 3.5 mm (management) ¦ 1 x USB (power only) - 4 pin USB Type A (power only) ¦ 1 x USB - 4 pin USB Type A ¦ 1 x network - RJ-45 (management) ¦ 1 x network - RJ-45 ¦ 1 x composite video input - RCA ¦ 1 x component video / RGB output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-in - RCA x 2 ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm
Miscellaneous
Included Accessories:2 x AAA batteries, wireless / wired remote control, double packing case
Compliant Standards:ISO 21118
Power
Power Source:AC
Voltage Required:AC 120/230 V (50/60 Hz)
Dimensions & Weight
Width:56 cm
Depth:42.8 cm
Height:20.5 cm
Weight:15.2 kg
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:45 °C
Humidity Range Operating:20 - 80% (non-condensing)
Sound Emission:33 dB
Sound Emission (Economic Mode):28 dB
vis mere
The MZ570 series combines outstanding Solid Shine laser with 3LCD technology to produce vivid, crisp images. The projectors offer high brightness of 5500lm, high WUXGA resolution and a high contrast ratio (3,000 000:1), while the Detail Clarity Processor 4 image processing circuit optimizes images, making them clearer and sharper.
With a small footprint and weighing in at just 15.2kg, the MZ570 projector is compact and lightweight: a practical choice for use in teaching and meeting rooms. What's more, the projector is designed with ultra-low noise operation of 28dB in Eco mode - quieter than the sound of writing with a pencil ­ - so the audience can focus on the presenter with no distractions.
Thanks to the MZ570 series' flexible installation options, the projector can be used in classrooms and meeting rooms of almost any size. The lenses are interchangeable (compatible with PT-EZ770 series lenses) so the same projector can be used in smaller or larger rooms. Meanwhile, with the Powered Lens Shift function there's no need for a ladder when adjusting the lens shift and zoom/focus. Geometric adjustment lets you project onto curved or specially shaped screens and the 360 Degrees Free settings mean the projector can be installed and project at whatever angle you choose.
Get up to 20,000 hours of brilliant, high-quality images from the long-lasting laser light source and low-maintenance design. The long-lasting Eco Filter can be used for up to 20,000 hours too, to help save time and avoid the hassle of replacing the filter (especially useful for ceiling mounted projectors). The dust resistant cabinet also helps to reduce maintenance and extend the life of the projector.
The Color Adjustment function lets you correct slight variations in the color of individual screens, so screens used near each other match. The MZ570 series also features an ambient light sensor which automatically detects the light levels in the room and adjusts the brightness of the image to make it clearly visible in dark or bright rooms.
MZ570 projector is DIGITAL LINK-ready, which means it can be connected to a DIGITAL LINK switcher using a single cable which reaches up to 150m, making installation simple and flexible. The projector can also be connected directly to a wide range of different inputs and outputs.
  • Bright, high-quality images
  • Compact and lightweight
  • Flexible installation
  • Designed for collaboration
  • Long-lasting and low maintenance




The technical details come from 3rd party. edgemo is not responsible for any errors.
