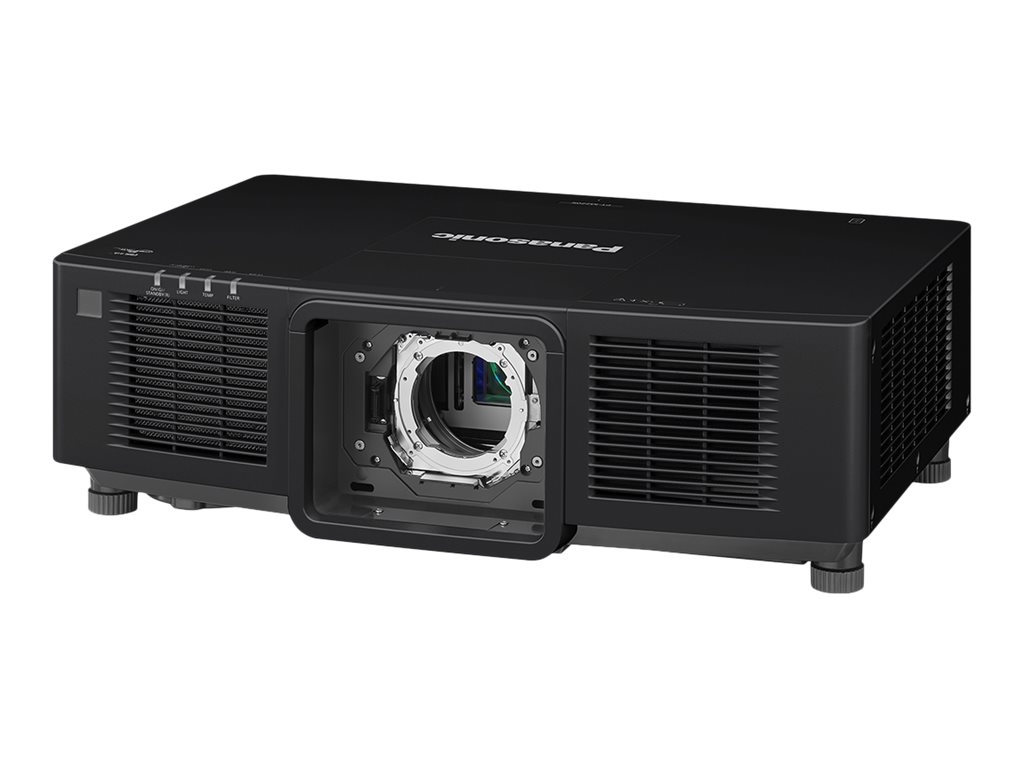

Panasonic PT-MZ17KLBEJ - 3LCD projector - no lens - LAN - black
SKU PT-MZ17KLBEJ
Product Description: | Panasonic PT-MZ17KLBEJ - 3LCD projector - no lens - LAN - black |
Device Type: | 3LCD projector |
Colour: | Black |
Brightness: | 16500 lumens |
Contrast Ratio: | 3000000:1 (dynamic) |
Resolution: | WUXGA (1920 x 1200) |
Native Aspect Ratio: | 16:10 |
- Specifications
- Description
General | |
Device Type: | 3LCD projector |
Networking: | Ethernet |
Enclosure Colour: | Black |
Projector | |
Brightness: | 16500 lumens |
Contrast Ratio: | 3000000:1 (dynamic) |
Image Size: | 203 cm - 1524 cm |
Uniformity: | 85 % |
Resolution: | WUXGA - WUXGA (1920 x 1200) |
Native Aspect Ratio: | 16:10 |
Display Format: | 2,304,000 pixels (1920 x 1200) x 3 |
Bulb type: | Laser diode |
Bulb life cycle: | Up to 20000 hour(s) - normal mode |
Controls & Adjustments: | Keystone correction, lens shift dial (horizontal), lens shift dial (vertical) |
Features: | Liquid Cooling System, Deep Color, PJlink, DICOM Simulation Mode, Detail Clarity Processor 4, 360° projection, art-net compatible, SOLID SHINE Laser Technology, Quick On/Off, Multi-Laser Drive Engine |
Lens | |
Type: | No lens |
Video Input | |
Video Interfaces: | HDMI, 3G-HDSDI, DIGITAL LINK |
LAN and Wireless Image Transferring Protocols: | Wired LAN |
Expansion / Connectivity | |
Interfaces: | 1 x 3G-HDSDI input - BNC ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x serial RS-232C input - 9 pin D-Sub (DB-9) (management) ¦ 1 x serial RS-232C output - 9 pin D-Sub (DB-9) (male) (management) ¦ 1 x remote control input - 9 pin D-Sub (DB-9) (management) ¦ 1 x remote control input (management) ¦ 1 x remote control output (management) ¦ 1 x DIGITAL LINK - RJ-45 ¦ 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
Miscellaneous | |
Security Features: | Security lock slot (cable lock sold separately) |
Security Slot Type: | Kensington security slot |
Power | |
Power Source: | AC |
Voltage Required: | AC 100-240 V (50/60 Hz) |
Software / System Requirements | |
Software Included: | Logo Transfer Software, Early Warning Software, Smart Projector Control App, Geometry Manager Pro, Multiple Monitor Control Software, Projector Network Setup |
Dimensions & Weight | |
Width: | 65 cm |
Depth: | 44 cm |
Height: | 18.5 cm |
Weight: | 22.5 kg |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 45 °C |
Humidity Range Operating: | 10 - 80% (non-condensing) |
Sound Emission: | 38 dB |
Sound Emission (Economic Mode): | 32 dB |
- Smaller, lighter, and quieter 16,500 lm LCD projector
- Long-life energy-saving design minimizes problems
- Delivering 20,000 lm on AC 100 - 240 V
