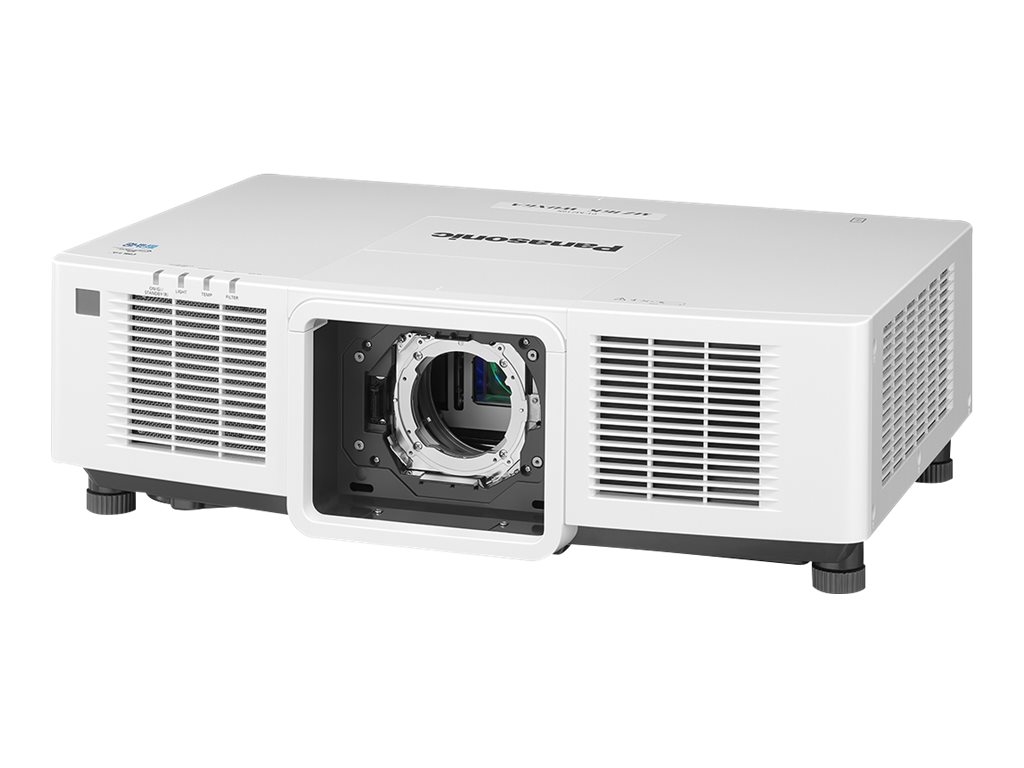

Printers & POSPanasonic PT-MZ16KLWEJ - 3LCD projector - no lens - white
SKU PT-MZ16KLWEJ
| Product Description: | Panasonic PT-MZ16KLWEJ - 3LCD projector - no lens - white |
| Device Type: | 3LCD projector |
| Colour: | White |
| Brightness: | 16000 lumens |
| Contrast Ratio: | 3000000:1 (dynamic) |
| Resolution: | WUXGA (1920 x 1200) |
| Native Aspect Ratio: | 16:10 |
- Specifications
- Description
| General | |
| Device Type: | 3LCD projector |
| Networking: | Ethernet |
| Enclosure Colour: | White |
| Projector | |
| Brightness: | 16000 lumens |
| Contrast Ratio: | 3000000:1 (dynamic) |
| Image Size: | 178 cm - 2540 cm |
| Resolution: | WUXGA - WUXGA (1920 x 1200) |
| Native Aspect Ratio: | 16:10 |
| Display Format: | 6,912,000 pixels (1920 x 1200) x 3 |
| Bulb type: | Laser diode |
| Bulb life cycle: | Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode |
| Controls & Adjustments: | Keystone correction |
| Features: | Deep Color, PJlink, 360° projection, art-net compatible |
| Lens | |
| Type: | No lens |
| Video Input | |
| Video Interfaces: | HDMI, DVI, SD-SDI, RGB, DIGITAL LINK |
| Expansion / Connectivity | |
| Interfaces: | 1 x 3G/HD/SD-SDI input - BNC ¦ 1 x HDMI - 19 pin HDMI Type A ¦ 1 x DVI-D ¦ 1 x RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232C input - 9 pin D-Sub (DB-9) (management) ¦ 1 x serial RS-232C output - 9 pin D-Sub (DB-9) (male) (management) ¦ 1 x remote control input - mini-phone stereo 3.5 mm (management) ¦ 1 x remote control output - mini-phone stereo 3.5 mm (management) ¦ 1 x remote control output - 9 pin D-Sub (DB-9) (management) ¦ 1 x DIGITAL LINK - RJ-45 ¦ 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
| Miscellaneous | |
| Security Features: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Power | |
| Power Source: | AC |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational: | 1050 Watt |
| Dimensions & Weight | |
| Width: | 65 cm |
| Depth: | 44 cm |
| Height: | 18.5 cm |
| Weight: | 22.3 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 10 - 80% (non-condensing) |
| Sound Emission: | 38 dB |
The 1-inch LCD panels, Multi-Laser Drive Engine, inorganic phosphor wheel, and Pure White Generator combine to achieve brighter and more natural color expression. Pure White Generator reduces energy wastage from the light source using a Panasonic-original multi-reflection engine that collects blue laser light with very high efficiency. Pure White Generator harnesses the extra light to improve color accuracy and create vibrant, natural, true-to-life colors that appear brighter and deeper on screen. Regardless of the installation site and ambient light levels, audiences can enjoy immersive high-quality images comfortably viewed for extended periods.
The PT-MZ16K Series LCD projector features a liquid-cooling system for multiple solid-state laser modules, securing reliable projection stability. As well as raising the ceiling for high-brightness projection in elevated locations and in environments subject to heat, the liquid-cooling system contributes to whisper-quiet 32-38 dB operation (depending on the projection mode) to minimize distracting noise within the learning space.
The PT-MZ16K Series supports uncompressed 4K/60p video-signal input via HDMI or DIGITAL LINK terminals. The ability to play Ultra HD video at the projector's supported native resolution is useful in situations where the same premium video content is intended for playback on multiple 4K and non-4K projectors or displays. It saves operators the hassle of re-encoding source video and allows the PT-MZ16K Series to be added to a projector network that includes 4K units, streamlining simultaneous playback of a single 4K video source on all compatible display devices.
The PT-MZ16K Series LCD projector features a liquid-cooling system for multiple solid-state laser modules, securing reliable projection stability. As well as raising the ceiling for high-brightness projection in elevated locations and in environments subject to heat, the liquid-cooling system contributes to whisper-quiet 32-38 dB operation (depending on the projection mode) to minimize distracting noise within the learning space.
The PT-MZ16K Series supports uncompressed 4K/60p video-signal input via HDMI or DIGITAL LINK terminals. The ability to play Ultra HD video at the projector's supported native resolution is useful in situations where the same premium video content is intended for playback on multiple 4K and non-4K projectors or displays. It saves operators the hassle of re-encoding source video and allows the PT-MZ16K Series to be added to a projector network that includes 4K units, streamlining simultaneous playback of a single 4K video source on all compatible display devices.
- Pure White Generator enriches colors with 16,000 lm brightness
- LCD projectors with liquid cooling for Multi-Laser Drive
- Backup input switching maintains picture display
- Information monitor
- Supports 4K signal input
- Geometric Adjustment with Free Grid Correction via remote control
- Dynamic contrast of 3,000,000:1 for natural image expression
- Detail Clarity Processor 4 provides pin-sharp insight
- Color adjustment function
- Reusable Eco Filter
- LCD projectors with liquid cooling for Multi-Laser Drive
- Backup input switching maintains picture display
- Information monitor
- Supports 4K signal input
- Reusable ECO Filter
- Free 360-degree installation
- Quick Start and Quick Off
The technical details come from 3rd party. edgemo is not responsible for any errors.
