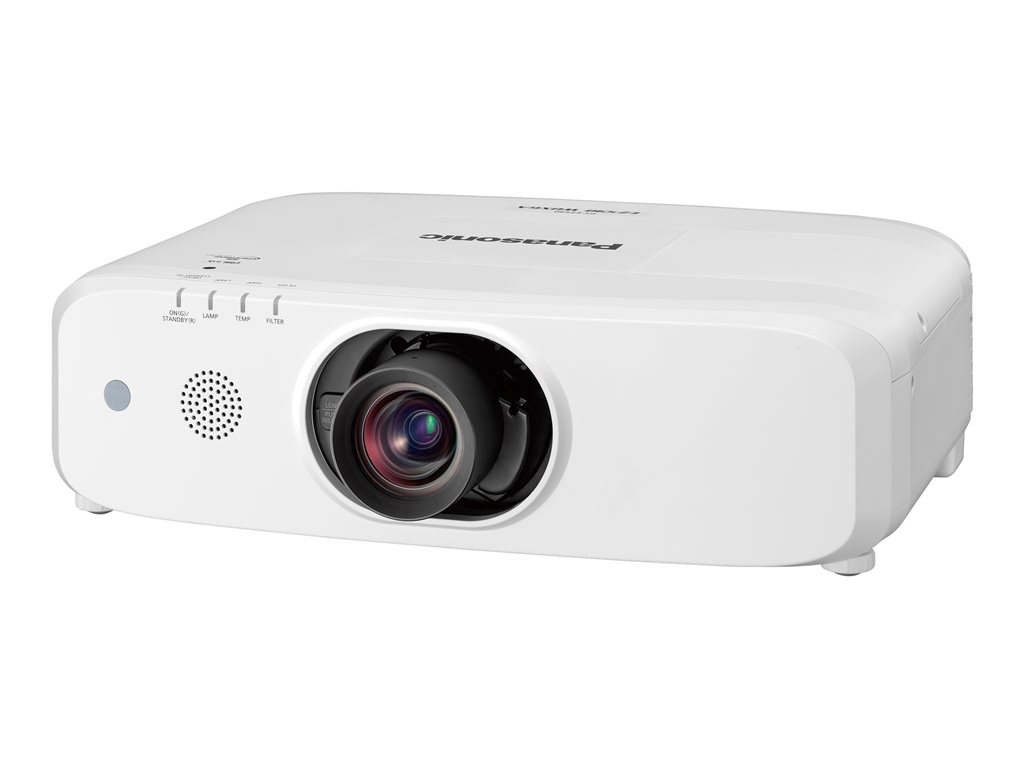

Printers & POSPanasonic PT-EZ590EJ - 3LCD projector - zoom lens - LAN
SKU PT-EZ590EJ
| Product Description: | Panasonic PT-EZ590EJ - 3LCD projector - zoom lens - LAN |
| Device Type: | 3LCD projector - 1080p |
| Built-in Devices: | Speaker |
| Brightness: | 5400 lumens |
| Contrast Ratio: | 10000:1 |
| Resolution: | WUXGA (1920 x 1200) |
| Native Aspect Ratio: | 16:10 |
- Specifications
- Description
| General | |
| Device Type: | 3LCD projector - 1080p |
| Built-in Devices: | Speaker |
| Networking: | Ethernet |
| Projector | |
| Brightness: | 5400 lumens |
| Contrast Ratio: | 10000:1 |
| Image Size: | 103 cm - 1057 cm |
| Throw Ratio: | 1.22 - 2.26:1 |
| Uniformity: | 90 % |
| Resolution: | WUXGA - WUXGA (1920 x 1200) |
| Native Aspect Ratio: | 16:10 |
| Video Bandwidth: | 162 MHz |
| Display Format: | 2,304,000 pixels (1920 x 1200) x 3 |
| Max Sync Rate (V x H): | 100 Hz x 90 kHz |
| Bulb type: | UHM 320 Watt |
| Bulb life cycle: | Up to 4000 hour(s) - normal mode ¦ Up to 5000 hour(s) - economic mode |
| Controls & Adjustments: | Keystone correction |
| Features: | High-bandwidth Digital Content Protection System (HDCP), Daylight View Technology, 3LCD Technology, Deep Color, PJlink, Dynamic Mode, Eco Filter, Eco Management, built-in mechanical shutter, Digital Link, Eco Mode |
| Lens | |
| Type: | Zoom lens |
| Focus Type: | Powered |
| Lens Aperture: | F/1.6-2.2 |
| Zoom Type: | Powered |
| Zoom Factor: | 1.8x |
| Keystone Correction Direction: | Horizontal, vertical |
| Vertical Keystone Correction: | -25 / +25 |
| Horizontal Keystone Correction: | -30 / +30 |
| Lens Shift Type: | Powered |
| Lens Shift Direction: | Horizontal, vertical |
| Vertical Lens Shift: | 60% / 60% |
| Horizontal Lens Shift: | 30% / 30% |
| Video Input | |
| TV System: | NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60 |
| Analogue video Signal: | RGB, composite video, component video |
| Video Interfaces: | VGA, HDMI, component video, composite video |
| Video Modes: | 480p, 480i, 525i, 525p, 625p, 625i, 576i, 576p, 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 750/50p, 750/60p, 1125/60i, 1125/60p, 1125/50i, 1125/24p, 1125/25p, 1125/30p, 1125/50p, 1080/24sF, 1125/24sF |
| LAN and Wireless Image Transferring Protocols: | Wired LAN |
| Speakers | |
| Type: | Integrated |
| Sound Output Mode: | Mono |
| Output Power / Channel: | 10 Watt |
| Speakers: | 1 x mixed channel - 4 cm |
| Expansion / Connectivity | |
| Interfaces: | 2 x USB - 4 pin USB Type A ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite / component video / RGB input - BNC x 5 ¦ 1 x composite video input - RCA ¦ 1 x remote control input - 9 pin D-Sub (DB-9) ¦ 1 x RGB output - 15 pin HD D-Sub (HD-15) ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA x 2 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232C input - 9 pin D-Sub (DB-9) (management) ¦ 1 x remote control input - mini-phone 3.5 mm (management) ¦ 1 x network - RJ-45 (management) |
| Miscellaneous | |
| Included Accessories: | 2 x AAA batteries, wireless remote control, cable holder |
| Security Features: | Security lock slot (cable lock sold separately) |
| Compliant Standards: | ISO 21118 |
| Power | |
| Power Source: | AC |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational: | 484 Watt |
| Power Consumption Stand by: | 12 Watt |
| Software / System Requirements | |
| Software Included: | Logo Transfer Software, Multi Projector Monitoring & Control Software |
| Dimensions & Weight | |
| Width: | 49.8 cm |
| Depth: | 39.83 cm |
| Height: | 14.5 cm |
| Weight: | 9 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
| Sound Emission: | 35 dB |
| Sound Emission (Economic Mode): | 29 dB |
People choose Panasonic because the products are highly dependable and meet the needs of professionals and educators. The versatile PT-EZ590 Series, for example, serves up immersive pictures in almost any situation, Plug and Play, with uncommonly low running costs. Like you, Panasonic projectors are working hard to deliver results of high quality.
- Compact and stylish projectors deliver stunning brightness
- Dynamic contrast of 10,000:1 with iris
- High resolution for lush detail
- Daylight View Basic ensures vivid images in bright rooms
- DICOM simulation mode for medical presentations
- Color adjustment for multi-screen projection
- Project onto curved surface
The technical details come from 3rd party. edgemo is not responsible for any errors.
