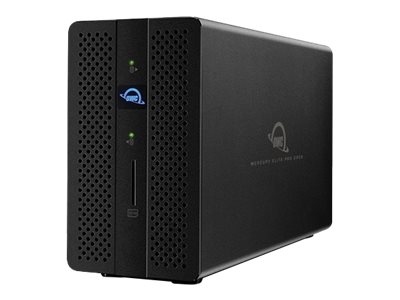

Printers & POSOWC Mercury Elite Pro Dock - hard drive array
SKU OWCTB3DKP2D
| Product Description: | OWC Mercury Elite Pro Dock - hard drive array |
| Device Type: | Hard drive array |
| Colour: | Black |
| Interface: | Gigabit Ethernet, USB 3.1, Thunderbolt 3 |
| Installed Devices / Modules Qty: | 2 (installed) / 0 (max) |
| Supported Drives: | SATA-600 |
| Built-in Devices: | SD card reader |
- Specifications
- Description
| General | |
| Device Type: | Hard drive array |
| Enclosure Colour: | Black |
| Chassis | |
| Built-in Devices: | SD card reader |
| Installed Devices / Modules Qty: | 2 |
| Supported Devices / Modules Qty: | 0 |
| Supported Drives: | SATA-600 |
| Storage | |
| HDD Array External Interface: | Gigabit Ethernet, USB 3.1, Thunderbolt 3 |
| Storage Controller | |
| Type: | RAID |
| Interface Type: | SATA 6Gb/s |
| RAID Level: | RAID 0, RAID 1, JBOD |
| Hard Drive | |
| Type: | No HDD |
| Expansion / Connectivity | |
| Expansion Bays: | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared |
| Interfaces: | 2 x Thunderbolt 3 ¦ 1 x DisplayPort ¦ 2 x USB 3.1 Gen 1 ¦ 1 x Ethernet 1000Base-T - RJ-45 |
| System Requirements | |
| OS Required: | Apple macOS Sierra 10.12, Apple macOS High Sierra 10.13, Microsoft Windows 7 / 10 (32/64 bits), Apple macOS Mojave 10.14 |
| Miscellaneous | |
| Features: | Kensington security slot |
| Cables Included: | 1 x Thunderbolt 3 cable |
| Compliant Standards: | VCCI, BSMI, FCC, RoHS, RCM |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 120/230 V - 50/60 Hz |
| Dimensions & Weight | |
| Width: | 8.5 cm |
| Depth: | 23.8 cm |
| Height: | 14.7 cm |
| Weight: | 2.9 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 5 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 8 - 90% (non-condensing) |
With dual drive bays, seven connectivity ports, and a SD 4.0 card reader, the OWC Mercury Elite Pro Dock is the do-it-all tool that will organize your digital life. You'll have plenty of room to duplicate footage, create and manage archives, or render and process effects. Connect your favorite peripherals via USB ports. Ingest the day's shoot or drone footage with the frontside reader.
The Mercury Elite Pro Dock utilizes hardware RAID to unleash the full potential of two 3.5" 7200RPM hard drives. Preconfigured in high-speed RAID 0 mode to deliver maximum sustained throughput from its drives, the Mercury Elite Pro Dock offers real-world speeds up to 497MB/s to handle HD video workflows. If you desire the extra security of mirrored data, you can configure the Mercury Elite Pro Dock in RAID 1 mode. Need more drive flexibility? Set up a span to combine the capacity of the two drives into one huge volume or use the drives as independent volumes.
The Mercury Elite Pro Dock utilizes hardware RAID to unleash the full potential of two 3.5" 7200RPM hard drives. Preconfigured in high-speed RAID 0 mode to deliver maximum sustained throughput from its drives, the Mercury Elite Pro Dock offers real-world speeds up to 497MB/s to handle HD video workflows. If you desire the extra security of mirrored data, you can configure the Mercury Elite Pro Dock in RAID 1 mode. Need more drive flexibility? Set up a span to combine the capacity of the two drives into one huge volume or use the drives as independent volumes.
- Performance storage: up to 497MB/s
- Fast connectivity: (2) Thunderbolt 3 ports
- Speed and storage: hardware RAID controller (RAID 0, 1, Span or JBOD/Independent)
- Easy camera uploads: frontside SD 4.0 (UHS-II) card reader
- A hub of options: (2) USB 3.1 Gen 1 (Type-A) ports
- Full steam ahead: 1Gb Ethernet port
- See work in progress: DisplayPort 1.2 for adding up to a 4K monitor
- Custom configurations: (2) bays for 2.5-inch or 3.5-inch SATA drives
The technical details come from 3rd party. edgemo is not responsible for any errors.
