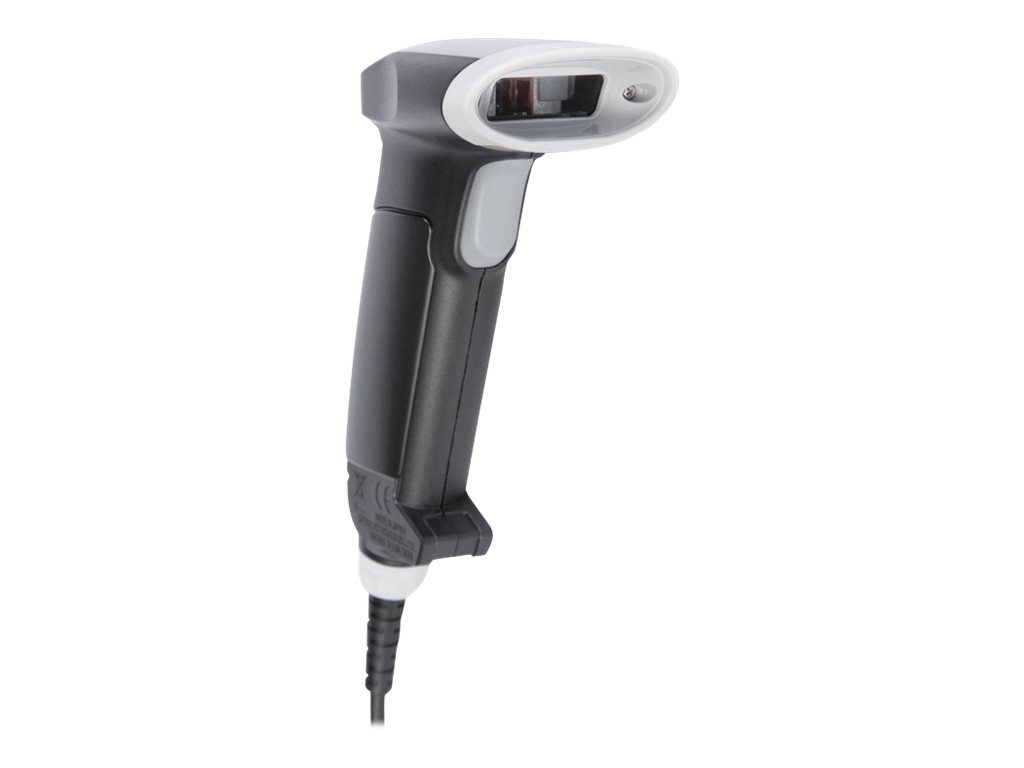

Opticon OPR-3201 - barcode scanner

SKU 11789
Product Description:Opticon OPR-3201 - barcode scanner
Type:Barcode scanner - handheld - USB - decoded
Colour:Black
Minimum Bar Width:5 mil
Scan Field Width:20 mm - 500 mm
Scan Element Type:Visible laser diode
Scan Speed:100 scan / sec
10-12-2022
  • Specifications
  • Description
General
Type:Barcode scanner - handheld
Colour:Black
Barcode
Interface Type:USB
Minimum Bar Width:5 mil
Scan Field Width:20 mm - 500 mm
Scan Element Type:Visible laser diode
Light Source Wave Length:650 nm
Scan Mode:Single-pass
Scan Speed:100 scan / sec
Skew (Degrees):50
Pitch (Degrees):35
Print Contrast Signal (PCS):35%
Decode Capability:EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, NW-7, IATA, ISBN, GS1 DataBar, Telepen, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, China Post, Korea Post, Trioptic Code, Plessey, EAN-UCC Composite, ISSN, S-Code
TTL Decoding:Decoded
Connectivity Technology:Wired
OK Notification:Beeper, LED indicator
Features:Triggered
Expansion / Connectivity
Interfaces:1 x USB - Type A
Miscellaneous
Included Accessories:Stand
Cables Included:1 x USB cable - external
Compliant Standards:VCCI, FCC, RoHS, IEC 60825-1, JIS C 6802 Class 2
Dimensions & Weight
Width:5.6 cm
Depth:10.9 cm
Height:14.9 cm
Weight:80 g
Environmental Parameters
Min Operating Temperature:-5 °C
Max Operating Temperature:50 °C
Humidity Range Operating:5 - 95% (non-condensing)
Drop Specification:1.5 m to concrete
vis mere
The OPR 3201 is a low-cost 1-D laser based hand-held bar code reader.




The technical details come from 3rd party. edgemo is not responsible for any errors.
