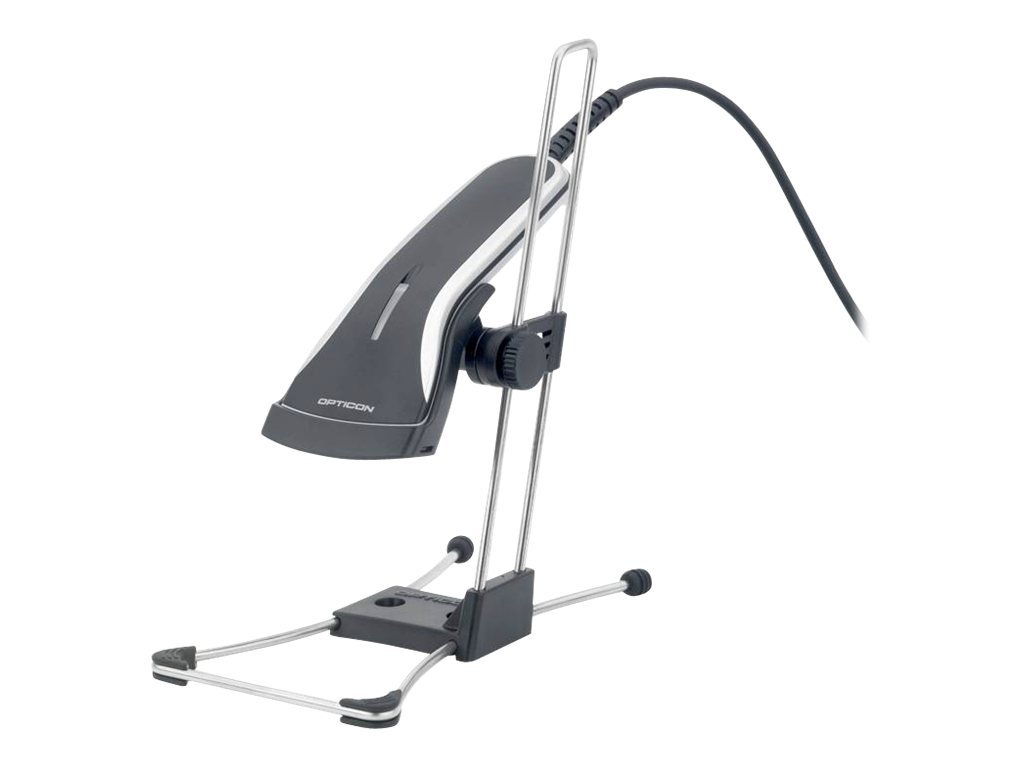

Opticon OPR-2001 - barcode scanner

SKU 11646

Product Description:	Opticon OPR-2001 - barcode scanner
Type:	Barcode scanner - handheld - RS-232 - decoded
Colour:	Black
Minimum Bar Width:	5 mil
Scan Field Width:	2 cm - 50 cm
Scan Element Type:	Visible laser diode
Scan Speed:	100 scan / sec

23-03-2025

Specifications
Description
Accessories

General
Type:	Barcode scanner - handheld
Colour:	Black

Barcode
Interface Type:	RS-232
Minimum Bar Width:	5 mil
Scan Field Width:	2 cm - 50 cm
Scan Element Type:	Visible laser diode
Light Source Wave Length:	650 nm
Scan Speed:	100 scan / sec
Skew (Degrees):	50
Pitch (Degrees):	35
Print Contrast Signal (PCS):	45%
Decode Capability:	EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, NW-7, IATA, ISBN, GS1 DataBar, Telepen, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, China Post, Korea Post, Trioptic Code, EAN-UCC Composite, ISSN, UK-Plessey, ISMN, S-Code
TTL Decoding:	Decoded
Connectivity Technology:	Wired
OK Notification:	Beeper, LED indicator
Features:	Triggered, Reduced Space Symbology (RSS)

Expansion / Connectivity
Interfaces:	1 x RS-232 - DB-9

Miscellaneous
Included Accessories:	Stand
Cables Included:	1 x serial cable
Compliant Standards:	VCCI, FCC, RoHS, IEC 60825-1, FDA, JIS C 6802 Class 2

Dimensions & Weight
Width:	5.6 cm
Depth:	3.1 cm
Height:	15.1 cm
Weight:	60 g

Manufacturer Warranty
Service & Support:	Limited warranty - 2 years

Environmental Parameters
Min Operating Temperature:	-5 °C
Max Operating Temperature:	50 °C
Humidity Range Operating:	20 - 85% (non-condensing)
Drop Specification:	1.5 m

vis mere

The sleek OPR 2001 barcode reader features a compact and modern design yet it is lightweight and delivers reliable performance using Opticon's proven scanning technology.

Compact and modern design
Hands-free scanning
Lightweight construction
High performance laser scanner
