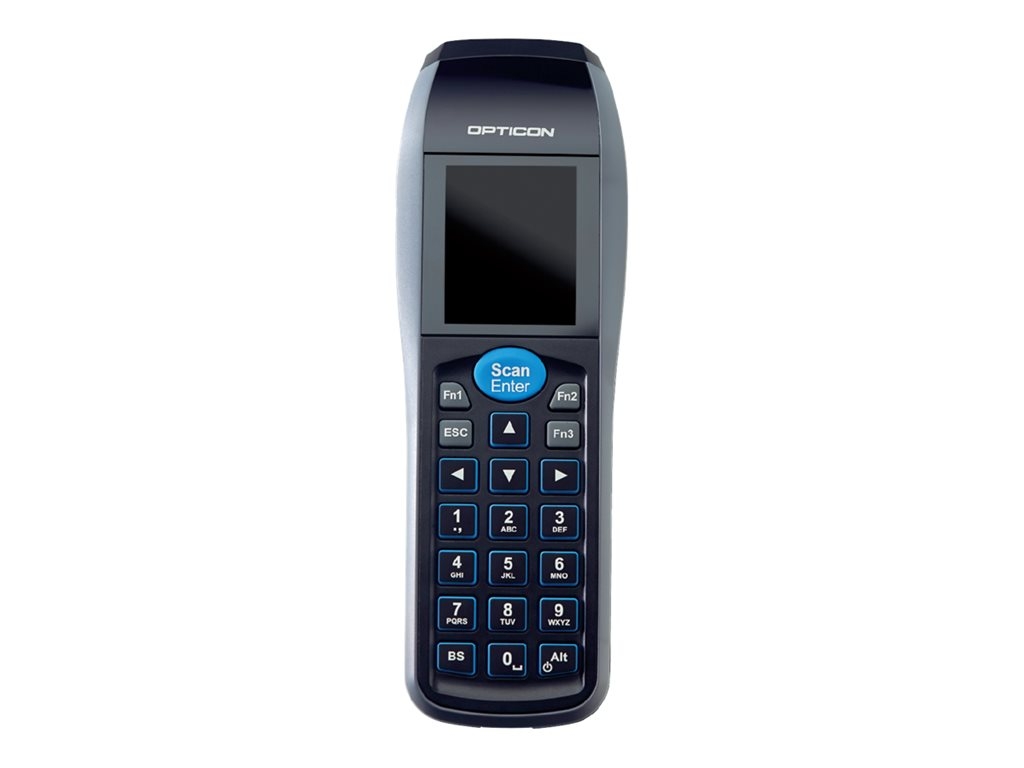

Opticon OPH-3001 - data collection terminal - 128 MB - 2"

SKU 13656

Product Description:	Opticon OPH-3001 - data collection terminal - 128 MB - 2"
Product Type:	Data collection terminal
Display:	2" TFT - LED backlight - 320 x 240
Processor:	Renesas RX62N
Storage:	128 MB
RAM:	4 MB
Barcode Reader:	Yes (laser)

14-05-2024

Login for price

Specifications
Description
Accessories

General
Product Type:	Data collection terminal

Display
Type:	2" TFT - LED backlight
Resolution:	320 x 240

Processor
Processor:	Renesas RX62N

Memory
Storage:	128 MB
RAM:	4 MB
ROM:	4 MB

Input Device
Type:	Keypad
Keys Qty:	22

Barcodes
Barcode Reader:	Yes
Scan Element Type:	Laser
Light Source Wave Length:	650 nm
Barcodes:	EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, IATA, ISBN, Telepen, Codabar, Code 128, Code 11, Interleaved 2 of 5, MSI-Plessey, China Post, Korea Post, Trioptic Code, ISSN, UK-Plessey, ISMN, S-Code, GS1 DataBar Composites
Minimum Bar Width:	6 mil

Expansion and Connectivity
Interfaces:	1 x Mini-USB

Battery
Technology:	Lithium Ion
Capacity:	1100 mAh
Run Time:	Up to 40 hours

Miscellaneous
Features:	Moisture resistant, dust-resistant, LED indicator, drop-resistant
Included Accessories:	Wrist strap
Cables Included:	USB cable
Compliant Standards:	EN55022, EN55024, FCC, RoHS, IEC 60825-1, IP54, JIS C 6802 Class 2, CDRH Class II

Dimensions & Weight
Width:	5.82 cm
Depth:	2.38 cm
Height:	18.08 cm
Weight:	156 g

Manufacturer Warranty
Service & Support:	Limited warranty - 2 years

Environmental Parameters
Min Operating Temperature:	-10 °C
Max Operating Temperature:	50 °C
Humidity Range Operating:	20 - 85% (non-condensing)
Min Storage Temperature:	-20 °C
Max Storage Temperature:	60 °C

2" TFT LCD QVGA color display
Numeric keypad
Lightweight design
1.5 m drop proof
IP 54
